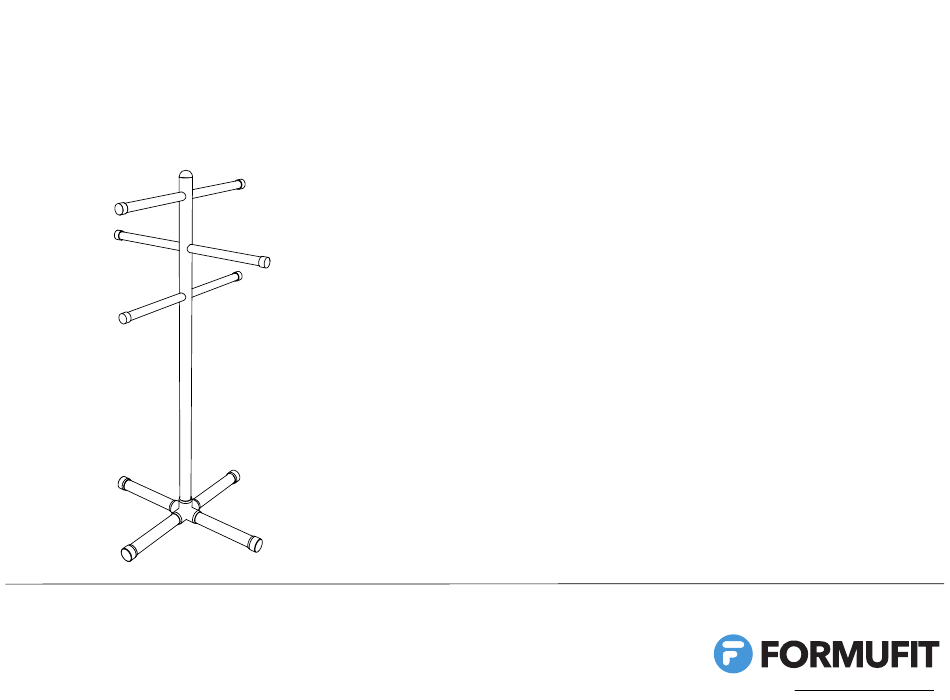

- Page 1 PVC Poolside Towel Tree a FORMUFIT PVC Plan www.formufit.com...
-
Page 2: Additional Information
PVC cement is a noxious For additional information on how to cut, prepare and assemble PVC, please review our chemical that should be FORMUFIT PVC Field Manuals available at: used in a well ventilated area. - Page 3 Tools...
-
Page 4: Additional Tools
Additional Tools Power Drill or Driver 1/4” Drill Bit 1-1/8” Hole Saw Bit Sand for Weight (optional) - Page 5 Parts Quantity Image Description Part Number 3/4” External End Cap F034EEC 1-1/4” External End Cap F114EEC 1-1/4” 5-Way Cross F1145WC 1-1/4" Ball End Cap F114BEC...
- Page 6 Pipe = 3/4” (1.050 OD) = 6 ft. (1x 10’) = 1-1/4” (1.660 = 8 ft. (1x 10’) 48" 24" 12" 3/4” 1-1/4”...
- Page 7 48" 2-1/4” Mark from Step 1A 15-1/4“ A. One one side of the pipe, measure down B. On the same side of the pipe, measure down 2-1/4” from the top, and make a mark. 15-1/4” from the top, and make a mark.
- Page 8 90º 9” Marks from Step 1 A. Rotate the same 48” pipe 90 degrees so that the B. On the new side of the pipe, measure previous marks are now on the side of the pipe. down 9” from the top, and make a mark.
- Page 9 B. Once each pilot hole is finished, drill a 1-1/8” hole saw A. For each of the three marks you made, drill a into each of the pilot holes, to cut out larger holes in pilot hole using a 1/4” drill bit through both the pipe.
- Page 10 B. Use a butter knife or other blunt tool to remove ‘burrs’ A. When complete with the hole saw, you should from the cut pipe, by running it around the edges of have a PVC pipe with several holes in it, similar the corners of each hole. to the image shown.
- Page 11 12" Pipe and Caps are 1-1/4”...
- Page 12 Optional: Once assembled, fill the entire base structure with sand through the top socket opening of the 5-Way Cross.
- Page 13 Step 4 Step 6...
- Page 14 24" 3/4” Pipe...
- Page 15 1-1/4” Cap 3/4” Caps...
- Page 16 Adjust arms to desired position...
