xmartO PT camera (WP1324) Quick User Guide
A. How to add a PT camera to your existing system

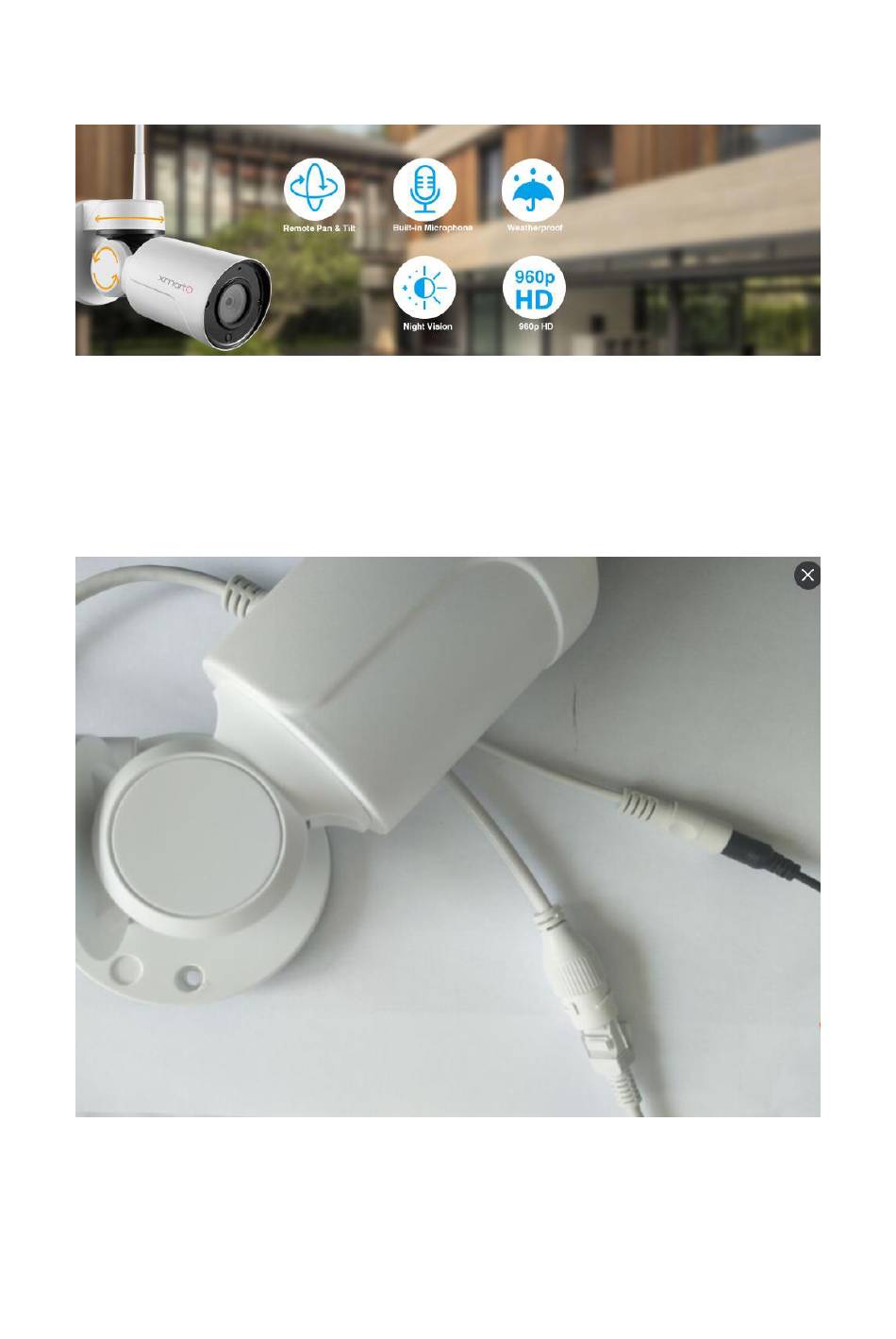

1. Plug the PT camera to power and hard wire it to your NVR with a network cable (Plug the network cable to the LAN port if your NVR
has 4 Ethernet ports; Plug the network cable to the WAN port if your NVR only has one Ethernet port.).
1. Go to your system, right click the NVR mouse, then click Device Manage. Click "Refresh" on upper right to search for this camera. After
a while, you'll see the camera with IP address 192.168.1.168 show up in upper box. As shown in below picture:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP1324 and is the answer not in the manual?

Questions and answers

Summary of Contents for xmartO WP1324

  • Page 1 PT camera (WP1324) Quick User Guide A. How to add a PT camera to your existing system 1. Plug the PT camera to power and hard wire it to your NVR with a network cable (Plug the network cable to the LAN port if your NVR has 4 Ethernet ports;...
  • Page 2 2. Click to choose the camera in upper box, then click to choose an unoccupied channel (No video source) in bottom box and click “Match Code”, you will see below interface. Wait for the system to search and add devices.
  • Page 3 If you see message “IPC is already in channel!”, it means the camera has been added to the NVR successfully. You can then click “Exit” to leave the interface. In Device Manage interface, you will see the camera with IP address 172.20.14.xx show up in bottom box. As shown in below picture: B.
  • Page 4 You will see the PTZ control interface below: Note: xmartO PT(WP1324) camera only supports Pan & Tilt. You can click the Up, Down, Right and Left button to make the camera pan and tilt. For 4x Digital Zoom function, please follow below: 1.
  • Page 5 With xmartO WallPixel free mobile app, you can control the PT camera to pan and tilt remotely when you’re away. You can also zoom in images from the app. Here is how: 1. Open the app, double tap the PT camera to make it display in full screen. Then tap “PTZ”.
