Please refer to the Lancer Corp website (lancercorp.com) for information relating to Lancer Installation/Operation
Manuals, Installation Guides, Instruction Sheets, and Technical Bulletins or for your convenience, scan this QR code
with a mobile device (app required) for immediate access to other Technical Documents and alternative translations
(if available) pertaining to this unit.
ABOUT THIS MANUAL
This booklet is an integral and essential part of the product and
should be handed over to the operator after the installation and
preserved for any further consultation that may be necessary.
Please read carefully the guidelines and warnings contained
herein as they are intended to provide the user with essential
information for the continued safe use and maintenance of the
product. In addition, it provides GUIDANCE ONLY to the user on
the correct services and site location of the unit.
The installation and relocation, if necessary, of this product must be carried out by qualified personnel with
up-to-date safety and hygiene knowledge and practical experience, in accordance with current regulations.
Lancer Corporation
6655 Lancer Blvd.
San Antonio, Texas 78219
800-729-1500
"Lancer" is the registered trademark of Lancer © 2016 by Lancer, all rights reserved.

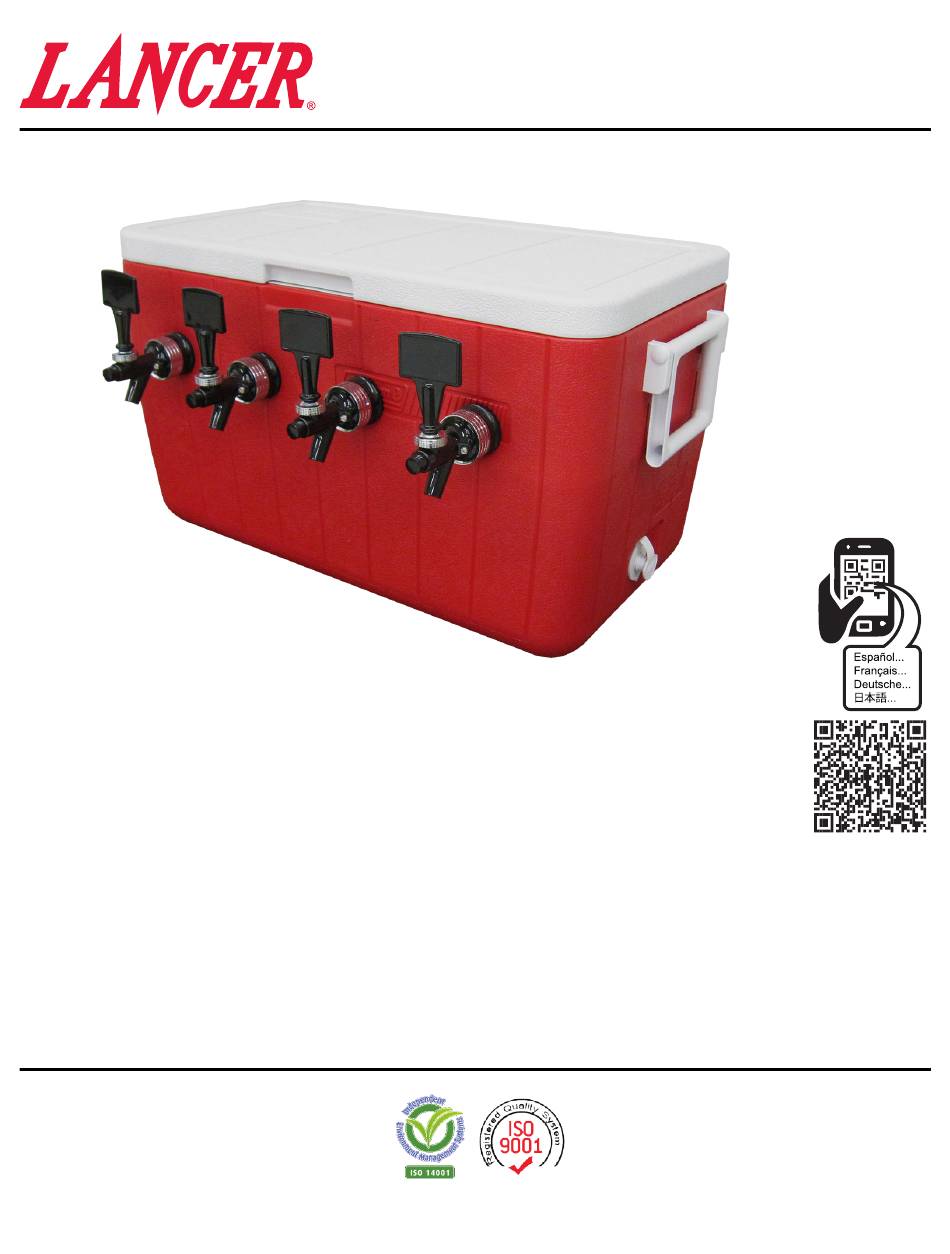

Pre-Mix Cooler
Installation & Operation Manual
BEFORE GETTING STARTED
Each unit is tested under operating conditions and is thoroughly
inspected before shipment. At the time of shipment, the carrier
accepts responsibility for the unit. Upon receiving the unit,
carefully inspect the carton for visible damage. If damage exists,
have the carrier note the damage on the freight bill and file a
claim with carrier. Responsibility for damage to the dispenser lies
with the carrier.
Technical Support/Warranty
800-729-1550
custserv@lancercorp.com
lancercorp.com
PN: 28-0979
Advertisement
Table of Contents
Summary of Contents for lancer Pre-Mix Cooler
-
Page 1: About This Manual
Pre-Mix Cooler Installation & Operation Manual Please refer to the Lancer Corp website (lancercorp.com) for information relating to Lancer Installation/Operation Manuals, Installation Guides, Instruction Sheets, and Technical Bulletins or for your convenience, scan this QR code with a mobile device (app required) for immediate access to other Technical Documents and alternative translations (if available) pertaining to this unit. -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS UNIT. This manual contains important safety information and all applicable safety precautions must be observed. To reduce the risk of fire, damage to the equipment, or personal injury when using this unit all instuctions/warnings on the product being used must be followed: ! CAUTION Text following the Caution signal indicates a hazardous situation, which if not avoided, could result in death or serious... -
Page 3: Specifications And Features
SPECIFICATIONS AND FEATURES 14.0 in 25.5 in A. Ice Bin 13.25 in B. Ice Bin Lid C. Valve D. Drain Spout DIMENSIONS WEIGHT Width: 25.5 inches (648 mm) Shipping: 40 lbs (18.14 kg) Depth: 13.25 inches (336.5 mm) Empty: 35 lbs (15.88 kg) Height: 14.0 inches (356 mm) With Ice: 85 lbs (38.56 kg) FITTINGS... -
Page 4: Installation Of Unit
INSTALLATION & OPERATION Installation of Unit 1. Cut band and remove shipping container. 2. Remove packaging from outside of the unit and all pictures from inside the ice bin then place the unit in the designated location. ! ATTENTION DO NOT remove internal packaging until unit has been placed in designated location. NOTE Inspect unit for concealed damage. If evident, notify delivering carrier and file a claim against the same. -
Page 5: General Information
General Information • Lancer equipment (new or reconditioned) is shipped from the factory cleaned and sanitized in accordance with the instructions in this section. The operator of the equipment must provide continuous maintenance as required by this manual and/or state and local health department guidelines to ensure proper operation and sanitation requirements are maintained. -
Page 6: Daily Cleaning And Maintenance
Daily Cleaning and Maintenance 1. Using the cleaning solution and a clean cloth, clean Ice Bin Lid and all exterior surfaces. 2. Clean exterior of dispensing valves. 3. For optimal drink performance drain excess water from ice bin using the drain spout on the side of the unit. -
Page 7: Dispenser Disposal
Cleaning and Sanitizing Valves - Monthly 1. Disconnect product lines from pre-mix containers. 2. Remove product from tubing by purging with carbon dioxide. 3. Remove the valve head assembly by turning the connecting nut clockwise to loosen from mounting sleeve. 4. - Page 8 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
