Summary of Contents for Tecway Sweet Digger

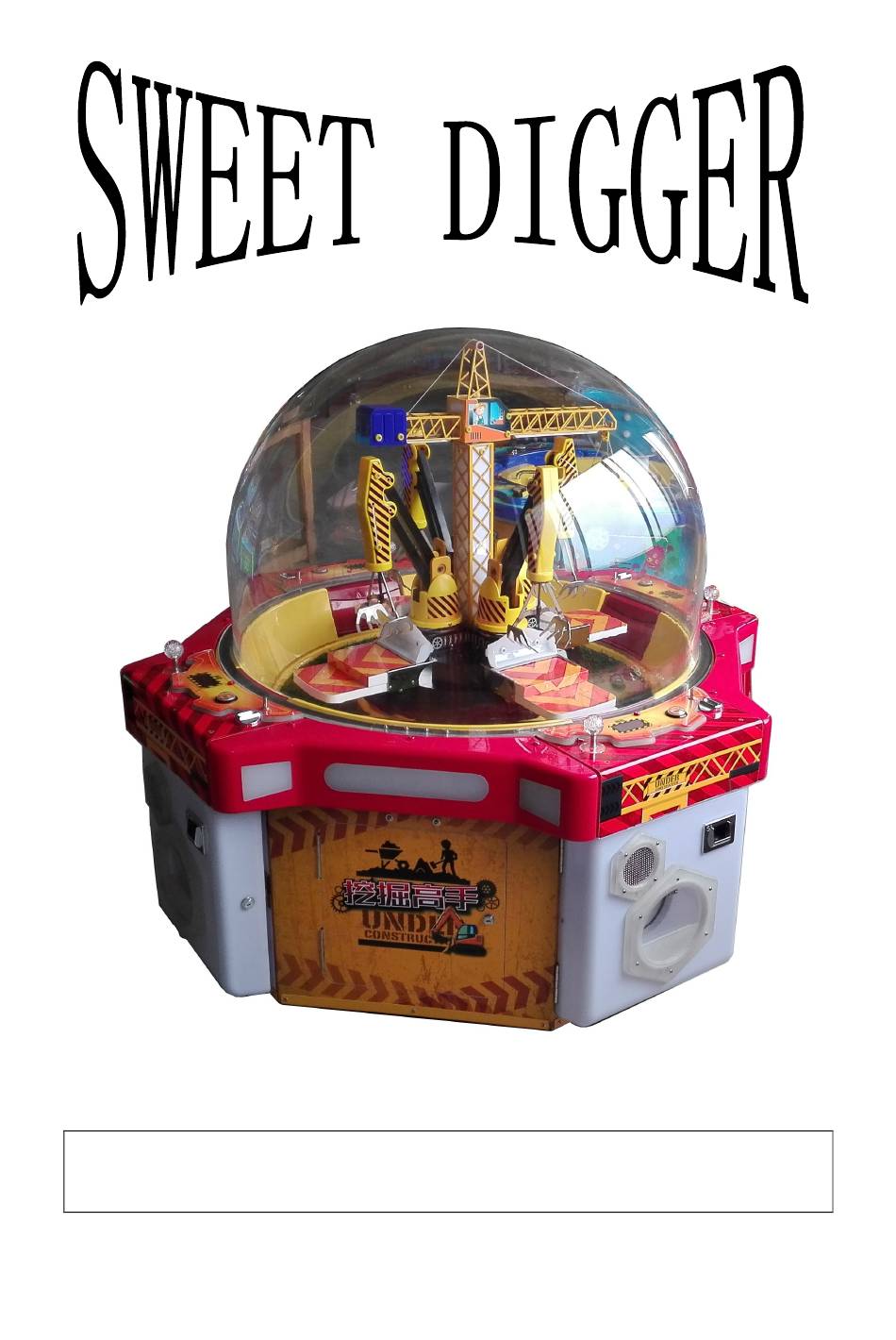

- Page 1 OPERATION MANUAL...
-
Page 2: Table Of Contents
Sweet Digger Operation Manual CONTENT SPECIFICATION & TECHNICIAL PARAMETER 1、 ...1 2、SPARE PART LIST ....................2 3、TROUBLE SHOOTING..................3 4、GAME INSTRUCTION..................4 4-1 GAME INSTRUCTION................4 4-2 OPERATION MENU ..................4 4-3 CONTROL SIGNAL & INSTRUCTION ............5 5、 PART LIST......................6 5-1 MECHNICAL PART ................. 6-9 5-2 COIN ASSY. -
Page 3: Specification & Technicial Parameter
Sweet Digger Operation Manual 、 SPECIFICATION & TECHNICIAL PARAMETER Unit：mm Voltage： AC 220V±10% 50Hz Consumption Power：mix 190W ～ max230 W Dimension：1488L×1488W×1413H（mm） Weight ：About 250 kg Environment condition：Temperature (Indoor): -10℃～+40℃； Humidity：≤90%； Atmospheric pressure：86Pa～106Pa。 Warning： When power off the machine please wait for 1 minute to power on. -
Page 4: 2、Spare Part List
Sweet Digger Operation Manual 2、SPARE PART LIST Spare Part List： NAME Spec./ Material UNIT DRAWING REMARK Manual Ticket dispenser AH57 door、coin door、repair door AH78 Coin door Fuse 6.3A Power cord 1.5M Micro switch Concave Optocoupler... -
Page 5: 3、Trouble Shooting
Sweet Digger Operation Manual 3、Trouble Shooting Fault Failure cause Trouble shooting Do not adjust for coin acceptor Adjust coin acceptor, token, tolerance, Do not insert Has fake coin。 trimming resistance. coin Take out the fake coin。 Volume is low。 Adjust volume。... -
Page 6: 4、Game Instruction
Sweet Digger Operation Manual 4、Game Instruction 4-1 Game Instruction 1. Insert coin and start game. 2. Press “Claw” button and will move to relevant place. 3. Player to see the plate and press “Confirm” button. 4. Tube will pick up the gift and send back to table. -
Page 7: Control Signal & Instruction
Sweet Digger Operation Manual 4-3 Control Signal & Instruction 1. Check the IO sheet and diagram, main board schematic drawing can see the input, output wiring connection place. 2. DIP setting can refer to the IO sheet, capital letter for factory setting, customer can set according to the exact conditions. -
Page 8: 5、 Part List
Sweet Digger Operation Manual 5、Spare Part List 5-1 Mechanical Part Overall Sugar digging mechanism Cabinet Prize mechanism... - Page 9 Sweet Digger Operation Manual Sugar digging mechanism...
- Page 10 Sweet Digger Operation Manual Standard No. Item Spec./Material WJGS-WG-04 Motor D-36P3540-721 WJGS-02-20 Motor fixed metal 201 stainless steel WJGS-03-12 Supporting pole Car workpiece WJGS-02-07 mechanism base fixed 201 stainless steel metal Coupling Car workpiece WJGS-00-02 Spring WJGS-DQ-01 Infra-red WJGS-02-17 Mechanical arm...
- Page 11 Sweet Digger Operation Manual Prize out mechanism Standard No. Item Spec./Material WJGS-02-44 Gift Guard A 201 stainless steel WJGS-02-43 Gift Guard B 201 stainless steel WJGS-02-42 Down gift mouth 201 stainless steel WJGS-DQ-01 Infra-red WJGS-WG-05 Motor WJGS-02-45 Motor fixed metal...
-
Page 12: Coin Assy. Part
Sweet Digger Operation Manual 5-2 Coin Assy. Part Standard No. Item Spec./Material Coin acceptor Direct electronic Fake coin button Coin box Steel Lock AH78 Short Lock 78 Six bit counter C-012 Six bit counter fixed 201 stainless steel metal... -
Page 13: Speaker Assy. Part
Sweet Digger Operation Manual 5-3 Speaker Assy. Part Standard No. Item Spec./Material Round speaker 4”8Ω15W Hexagon frosted organic Frosted organic sheet sheet Round speaker cover Silvery white 0805 12V Green L 20cm Light bar W6mm 5-4 Fuse & Power Assy.Part Standard No. -
Page 14: Electric Installation Part
Sweet Digger Operation Manual 5-5 Electronic Assy. Part... - Page 15 Sweet Digger Operation Manual Item Spec./Material Unit 12v 150W Power 24v 150W Main board RGB Control board XXH-150703A Collector ring Motor Motor control board Exhaust fan 1804U3A 001 12V Exhaust fan net counter C-012 Digital tube Fuse Y101124/A1 5*20 6.3A...
-
Page 16: Art Part
Sweet Digger Operation Manual 5-6 Art Part... - Page 17 Sweet Digger Operation Manual Standard No. Item Spec./Material WJGS-HM-01 Side board Cabinet menu WJGS-HM-02 Tread Crane arm menu WJGS-HM-03 Platform menu WJGS-HM-04 Tread Nixie tube menu WJGS-HM-05 Tread Table menu WJGS-HM-06 Switch menu WJGS-HM-07 Tread...
- Page 18 Sweet Digger Operation Manual Standard No. Item Spec./Material WJGS-HM-08 Counter label White adhesive WJGS-HM-09 Fork label White adhesive WJGS-HM-10 Don’t touch label White adhesive WJGS-HM-11 Repair label White adhesive WJGS-HM-12 HT/HP label White adhesive WJGS-HM-13 HP label White adhesive WJGS-HM-14...
-
Page 19: Electric Part
Sweet Digger Operation Manual 5-7 Electric Part... - Page 20 Sweet Digger Operation Manual Standard No. Item Spec./Material 12V/5050RGB Soft light Door light strip/0.6M 12V/5050RGB Soft light Prize light strip/0.4M Cabinet light 0805 12V Green L25cm W6mm 12V/5050RGB Soft light Side cabinet light strip/0.6M Sugar shovel light 0805 12V Green L10cm W6mm...
-
Page 21: 6、Io Sheet
Sweet Digger Operation Manual 6、IO SHEET ITEM Setting value Coin /Game 20 seconds Game time 25 seconds limit 30 seconds No limit Free play Idle music Factory protection Main Board：ZYGD_20160119.PCB V2.0 Input：<Main board 1> CONTENT CONTENT CONTENT INPUT INPUT INPUT J7-1（1）... - Page 22 Sweet Digger Operation Manual J7-29（29） #4 gate sensor up J7-33（37） J7-30（30） #4 gate sensor down J7-33（38） J7-31（31） #4 reset button J7-33（39） J7-23（32） #4 service button J7-33（40） Independent port：<Main board 1> CONTENT CONTENT PROT PROT 1-2 Nixie tube SCK Sound RES...
- Page 23 Sweet Digger Operation Manual Output：<Main board 2> CONTENT CONTENT OUTPUT CONTENT OUTPUT OUTPUT J8-2（17） #4 lifting #1 lifting motor A #2 left/right motor B J4-1（1） J6-2（9） motor B J8-3（18） #4 left/right #1 lifting motor B #2 electromagnet J4-2（2） J6-3（10） motor A J8-4（19）...
- Page 24 Sweet Digger Operation Manual Press UP button enter into IO mouth test: in the mean time IO mouth light output, press DOWN button enter into IO mouth output, digital tube shows 444, all digital tube flash three times stop. Press UP button enter into music test, and play #5 music, digital tube LED<1>1,2 shows: music test item number, other digital tube shows 5555, all digital tube flash three times stop.
