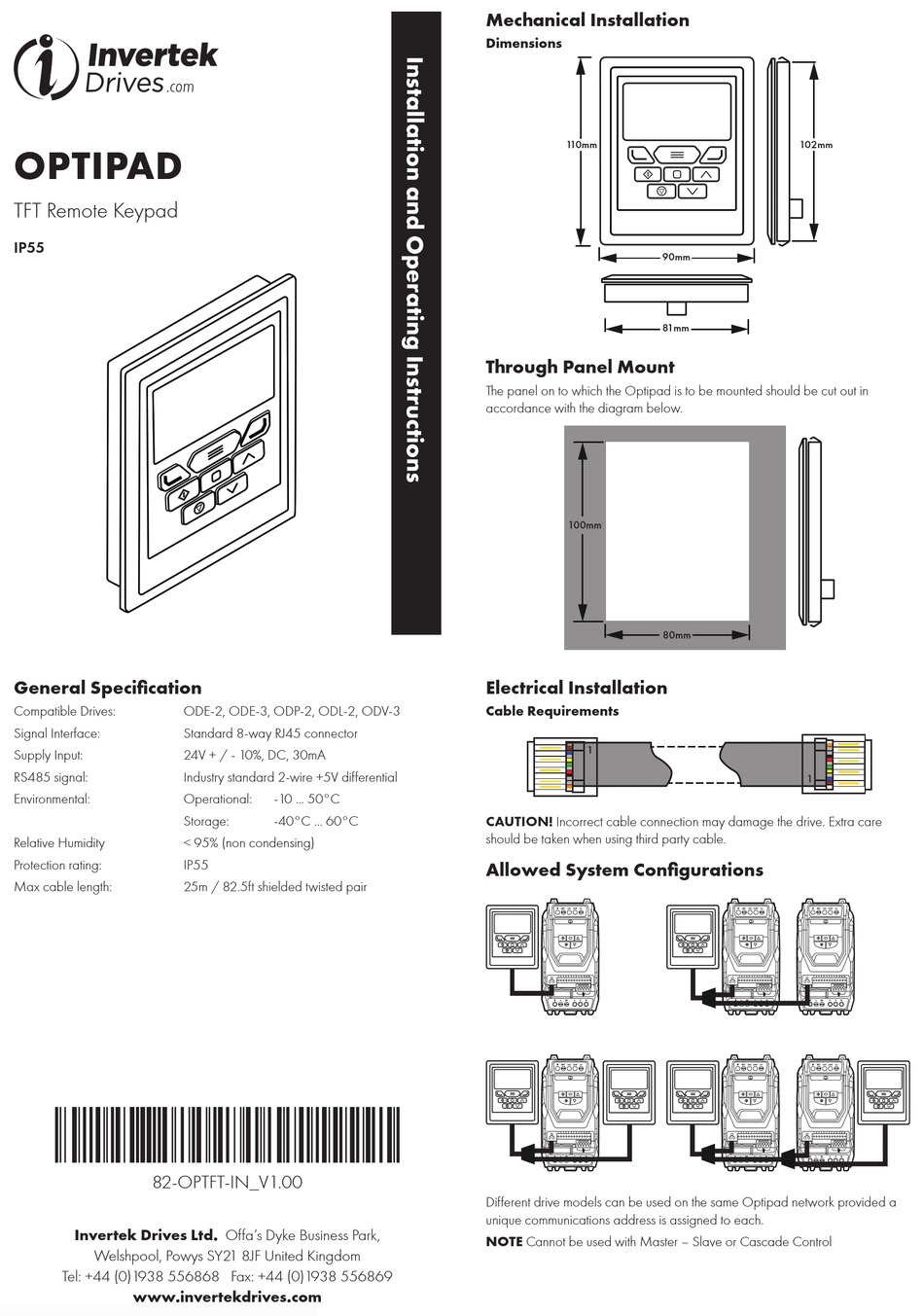

OPTIPAD
TFT Remote Keypad
IP55
General Specification
Compatible Drives:
ODE-2, ODE-3, ODP-2, ODL-2, ODV-3
Signal Interface:
Standard 8-way RJ45 connector
Supply Input:
24V + / - 10%, DC, 30mA
RS485 signal:
Industry standard 2-wire +5V differential
Environmental:
Operational:
Storage:
Relative Humidity
< 95% (non condensing)
Protection rating:
IP55
Max cable length:
25m / 82.5ft shielded twisted pair
Ñ82-OPTFT-IN_V1.00MÓ
82-OPTFT-IN_V1.00
Invertek Drives Ltd. Offa's Dyke Business Park,
Welshpool, Powys SY21 8JF United Kingdom
Tel: +44 (0)1938 556868 Fax: +44 (0)1938 556869
www.invertekdrives.com
-10 ... 50°C
-40°C ... 60°C
Mechanical Installation
Dimensions
1 10mm
Through Panel Mount
The panel on to which the Optipad is to be mounted should be cut out in
accordance with the diagram below.
100mm
Electrical Installation
Cable Requirements
1
CAUTION! Incorrect cable connection may damage the drive. Extra care
should be taken when using third party cable.
Allowed System Configurations
Different drive models can be used on the same Optipad network provided a
unique communications address is assigned to each.
NOTE Cannot be used with Master – Slave or Cascade Control
102mm
90mm
81mm
1 10mm
80mm
1
