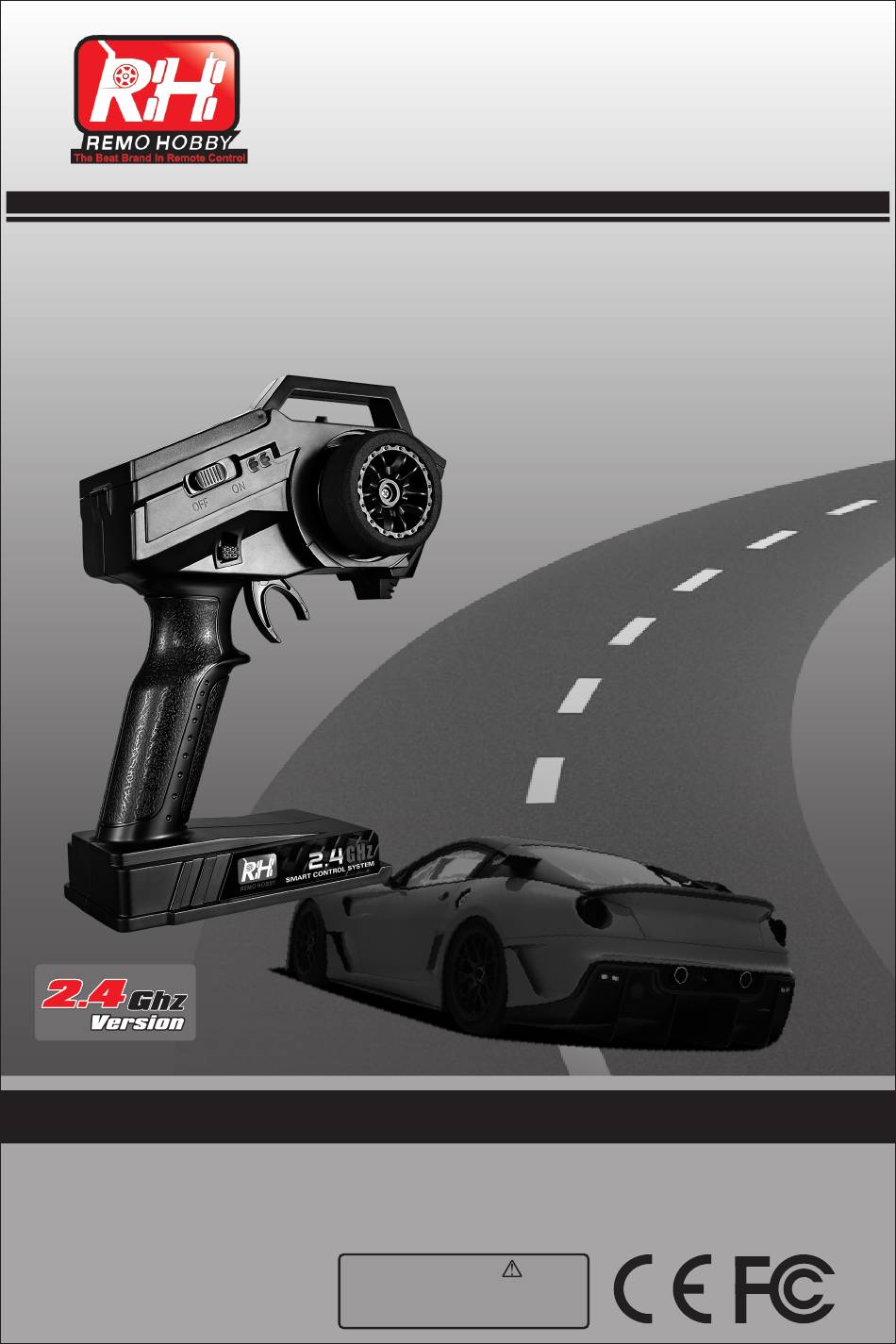

Remo hobby Smart Radio Control System 2.4GHz Instructions
Thank you for purchasing this Remo Hobby product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
感谢您购买雷魔模型的产品。操作本产品前请仔细阅读这些说明,保留备查。本手册中所示的图像只用于演示。
Http:/ /www.remo hobby.com
RH1-RH2
INSTRUCTION MANUAL
WARNING
警告
This product is only suitable for use by
more then 15 years of age.
本产品只适合15岁以上人员使用
用户手册
Advertisement
Table of Contents
Summary of Contents for Remo Hobby RH2
- Page 1 RH1-RH2 INSTRUCTION MANUAL 用户手册 Remo hobby Smart Radio Control System 2.4GHz Instructions Thank you for purchasing this Remo Hobby product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.
-
Page 2: Table Of Contents
MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions MENU 1.Introduction ............ 2.The special symbols ....................3.Safty guides 4.Transmitter Parameters ..................5.Receiver Parameters 6.Installing Transmitter Batteries ................7.Receiver connectivity 8. Remo Hobby 2.4GHz Advanced Tuning Guides .... -
Page 3: Introduction

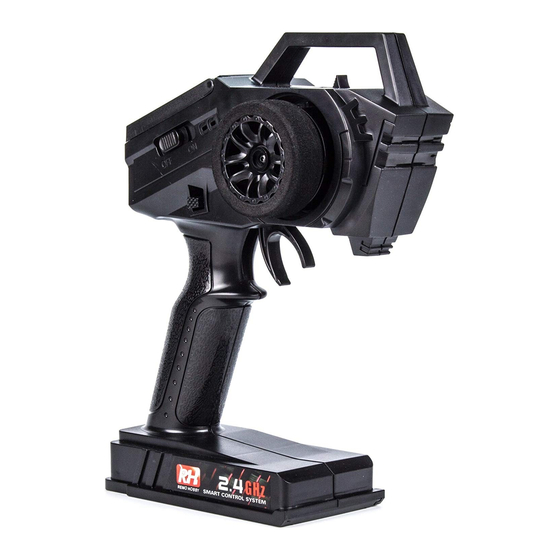

1.INTRODUCTION 介绍 Thank you for purchasing the Remo Hobby Smart Radio Control System 2.4GHz radio system with Remo Hobby left hand and right hand Steering Wheel. (Mode1 or Mode2).The transmitter’s easy-to-use design provides instant driving fun for new R/C enthusiasts, and also offers a full compliment of pro-level tuning features for advanced users –... -
Page 4: Safty Guides
MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions 3.SAFTY GUIDES 安全指南 Don’t fly in night ,bad weather such as rainy or thundering days .It will interfere the transmitter signal.Thereby it will create out of control and unexpected accident. 请您不要在夜晚，刮风或下雨时使用，因为这样的天气环境会对遥控设备产生干扰, 从而导致失控而产生意外! -
Page 5: Receiver Parameters
MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions 5.RECEIVER PARAMETERS 接收机参数 Specifications: A.Frequency band:2.4Ghz A.工作频段：2.4GHz B.Modulation:GFSK B.工作模式：自动跳频 C.Channels: 3 Channels C.通道数：3个 D.Sensitivity: 512 D.数据分辩率：512级 E.RF. Receiver Sensitivity: -100DBm E.接收灵敏度：－100DBm F.Power:4.5-6V DC F.工作电压：4.5－6V G.Weight: 5g G.重量：5.2g H.Size:27.2*17.6*11.4mm H.外形尺寸：27.2*17.6*11.4mm I.Waterproof Rating:IP68 I.防水级别：IP68... -
Page 6: Receiver Connectivity
3 IN 1 SMART SYSTEM INTEGRATION, follow these instructions. Note: Remo Hobby RH1 2.4GHz transmitter and 3 IN 1 SMART SYSTEM INTEGRATION do not compatible with other brand. - Page 7 9.If the tests success, the system is bound and ready for use. (The above ways of match is only suitable for REMO HOBBY RH2 2.4G transmitter and receiver) Prevent runaway protection setting method: After bound the receiver and transmitter, when before pull out the binding line need to setting the steering at neutral (zero exponential) and throttle at neutral (zero exponential).
- Page 8 RH2 installation when a motor controller is used RH2 带马达模型安装图 BATTERY LINK BRUSHLESS 7.4V Li-Po BATTERY NOTOR CHERGER NORM SERVO RECEIVER RH2 installation for gas powered models and nitro vehicle RH2 燃油车和硝基模型车的安装图 STEERING SYSTEM 方向系统 THROTTLE 油门 Servo 伺服器 Receiver 接收机...
-
Page 9: Remo Hobby 2.4Ghz Advanced Tuning Guides
Receiver 8. REMO HOBBY 2.4GHZ ADVANCED TUNING GUIDE 雷魔模型2.4 GHz高级调整指南 Your Remo Hobby transmitter has a programmable Multi-Function compartment that can be set to control various advanced transmitter functions 你的雷魔模型发射机有一个多功能舱可以编程设置控制各种高级功能 The Multi-Function Compartment can be programmed to control a variety of functions. From the fact the Multi-Function Compartment all functions are set already. - Page 10 MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions RH1控制面板 RH2 控制面板 /AUX In Multi-Function compartment has a TH TRIM knob is throttle trim will allow you to adjust the throttle’s neutral position to prevent unwanted brake drag or throttle application when the transmitter trigger is at neutral。If you have a nitro model,...
- Page 11 MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions In Multi-Function compartment has a TH D/R knob can be set to control the amount (percentage) of servo travel and ESC applied to Throttle. Turning the TH D/R knob fully clockwise will deliver maximum Throttle throw; turning the knob counter-clockwise...
- Page 12 MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions Steering and Throttle REV油门和转向倒相（逆转） The ST REV is Steering Reverse can be switch the steering from normal to reverse direction. The TH REV is Throttle Reverse can be switch the Throttle from normal to reverse direction.
-
Page 13: Left Hand，Right Hand Switch
2 mode 1 Remo Hobby Smart Radio Control System 2.4GHz radio system with Remo Hobby left hand and right hand Steering Wheel (Mode1 or Mode2)，It’s great. How to make mode 1 change to mode 2 or mode 2 change to mode 1, you need to hold the switch then push the steering wheel into other side, after release the switch. -
Page 14: Using The Remo Hobby 2.4Ghz
部分有刷ESC，具体必须查看ESC的使用说明手册然后设置油门扳机的中点。）雷魔模型RH2 2.4GHz 发射机和接收机，如果你想改变50/50或70/30模式你可以只通过ESC来设置中点。你必须查看ESC的使 用说明手册然后设置油门扳机的中点。 *When change a new ESC please turn the RH2 transmitter TH D/R knob to the largest proportion of throttle, then see ESC Manual for instructions to setting throttle neutral. It will deliver maximum throttle throw. *建议RH2在更换新无刷电调时请把油门大小动作量调整打开到最大，再查阅无刷... - Page 15 MODELS:RH1-RH2 Remo hobby Smart Radio Control System 2.4GHz Instructions 6. When looking down at model, the front wheels should be pointing straight ahead. If the wheels are turned slightly to the left or right, slowly adjust the steering trim control on the.
-
Page 16: Http: //Www.remo Hobby.com
Remo hobby Smart Radio Control System 2.4GHz Instructions Http: / /www.remo hobby.com...
