SHL Telemedicine CCM User Manual

Communication center module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

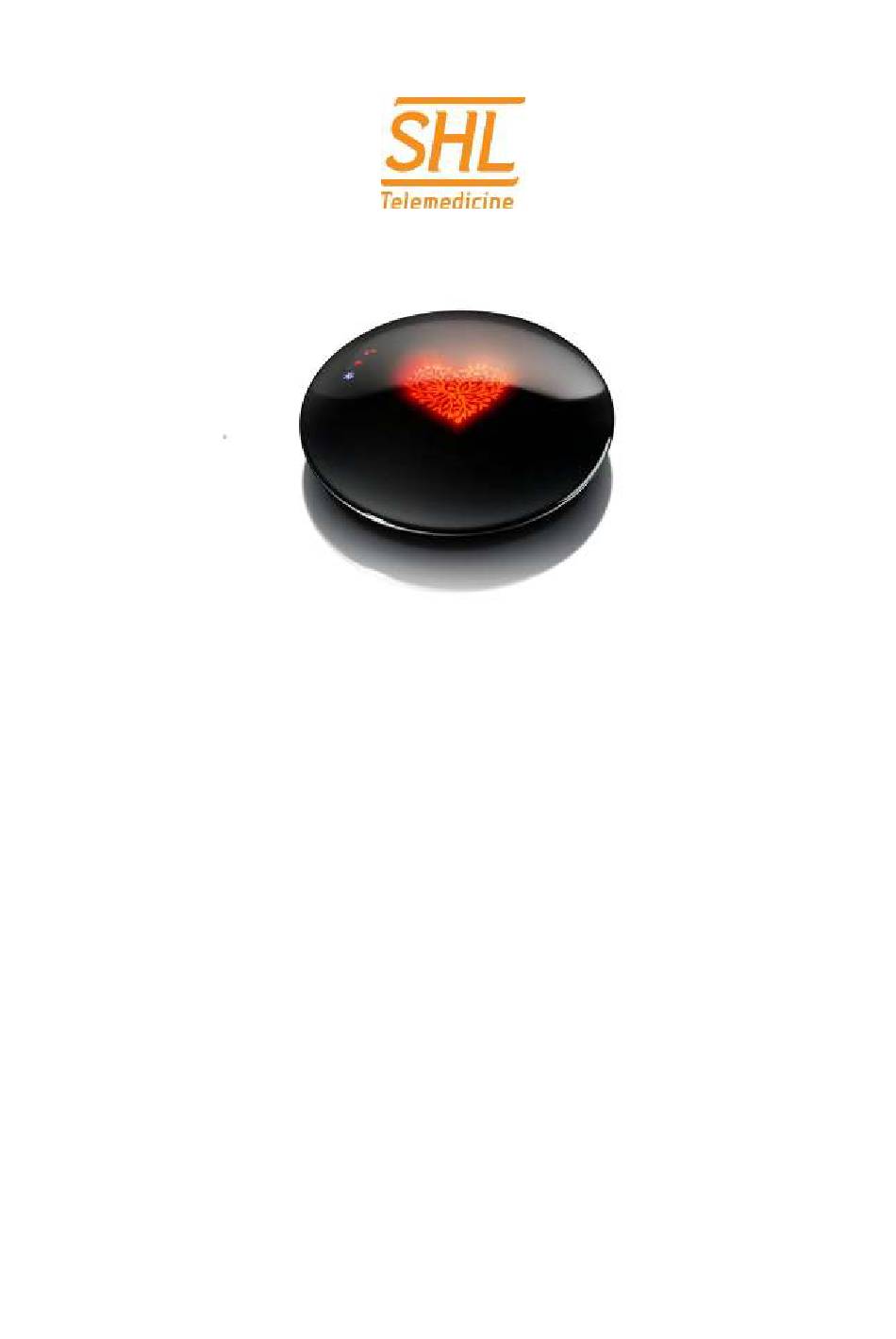

CCM
- Communication Center Module
User Manual
January -2012
REV 2.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCM and is the answer not in the manual?

Questions and answers

Summary of Contents for SHL Telemedicine CCM

  • Page 1 - Communication Center Module User Manual January -2012 REV 2.11...
  • Page 2 The measurement devices can communicate with the CCM in three different ways: serial communication (using port 1 and port 2), USB or Bluetooth. This user manual describes all the available communication for the CCM. The quick guide provided to you with your CCM shows the communications available in your package. Warning You can only use the CCM with devices •...

  • Page 3: Table Of Contents

    CCM - Communication Center Module Table of Contents Indications for use Description of the CCM Communication Options Setting up the CCM Taking a measurement Handling Errors Troubleshooting Maintaining your CCM Equipment classification Operating and storage conditions Technical specifications Limited warranty...

  • Page 4: Indications For Use

    The CCM device is intended to receive and transmit measurements from one or more medical devices to a remote location. The data from the medical device can be received via Bluetooth, a Serial port or a USB port. The CCM device can transmit the data to the remote location via LAN. Warning The use of the device should always be in conjunction with a receiver capable of receiving the data.

  • Page 5: Description Of The Ccm

    CCM - Communication Center Module 2. Description of the CCM The Communication Center Module (CCM) is a stand-alone device that receives data from measurement devices at a remote location (for example, the patient's home) and transmits the data to the Medical Center (MC).
  • Page 6 FRONT VIEW REAR VIEW CCM Components Note: The CCM contains several LEDs (light-emitting diodes) that serve as indicator lamps. Note: All the CCM sockets are labelled on to bottom side of the CCM. Power Supply (PWR). Speaker LAN Socket (LAN).
  • Page 7 CCM - Communication Center Module Telephone sockets (Line, Phone) – Not in use. Three LEDs on top of the CCM. Red indicates an error Blue indicates a Bluetooth connection Yellow indicates a cable connection (serial or USB), and shows if there are untransmitted measurements.

  • Page 8: Communication Options

    This is wireless communication to the CCM. It can communicate with up to 7 devices at the same time. This is also a cable connection to the CCM. It connects to a USB port on your CCM (see component 5 on the CCM diagram above).

  • Page 9: Setting Up The Ccm

    This is a LAN connection to the MC. Connect one end of the LAN cable into the LAN socket on the rear side of the CCM (Figure 4) and the other end (Figure 5) into the . This way is the fastest way to send the data to the MC.
  • Page 10 USB Por This is a cable connection from the measurement device to the CCM. Plug the cable (Figure 11) into the USB port on the front side of the CCM (Figure 12). Figure 11 Figure 12 __________________________________________________________________________________________________...

  • Page 11: Taking A Measurement

    Step 4: Check that the data gets to the MC As long there are untransmitted measurements stored in the CCM the Yellow LED is lit. While the CCM is communicating with the MC the orange heart logo on top of the CCM is blinking.

  • Page 12: Handling Errors

    CCM - Communication Center Module 6. Handling Errors Whenever the CCM detects an error, the Red LED on top of the CCM lights up or blinks (see component 10 on the CCM diagram above). Step 1: Identify the error Press the multifunction button on the CCM (see component 6 on the CCM diagram above). The speaker will tell you the number of the error that has occurred.

  • Page 13: Troubleshooting

    After turning on the CCM the SHL orange heart logo blinks continuously Press the Reset button (see component 7 on the CCM diagram above). SHL orange heart logo is not lit See above in section 4 "Setting Up the CCM", Step 1.

  • Page 14: Maintaining Your Ccm

    CCM - Communication Center Module Maintaining your CCM Cleaning the device Caution The CCM is not waterproof. • Clean off dust with a dry cloth. Do not scratch with abrasive cleaners or abrasive cleaning • pads for cleaning. Damage to plastic parts will result.

  • Page 15: Equipment Classification

    The equipment is not protected against the flammable gasses presence of a flammable anesthetic mixture of air, oxygen or nitrous oxide. Caution The CCM is not designed against the ingress of liquids. Do not • submerse during cleaning. FCC Standard FCC ID: U6VCCM This device complies with Part 15 of the FCC Rules.

  • Page 16: Operating And Storage Conditions

    CCM - Communication Center Module 10. Operating and storage conditions Temperature -20o C to +65o C (-4o F to +149o F) Relative Humidity 10-90% non condensing Storage Atmospheric 500hPa - 1060hPa Pressure Temperature C to +40 C (+50 F to +104...

  • Page 17: Technical Specifications

    CCM - Communication Center Module 11. Technical specifications ITEM SPECS Current Drain: Transmission: LAN 200mA avg. Standby: 100 mA avg. Power supply Ac/Ac adaptor, input: 230V~50Hz, output 12V~1A Class 1 Serial port baud rate Up to 115Kpbs, auto baud rate detection USB 2.0...

  • Page 18: Limited Warranty

    CCM - Communication Center Module 12. Limited warranty The CCM is warranted, under normal use, to be free from any manufacturing defects for one year from the date of purchase. Limitations related to this warranty are as follows: Tampering with the CCM device or opening the device by anyone other than a qualified •...
