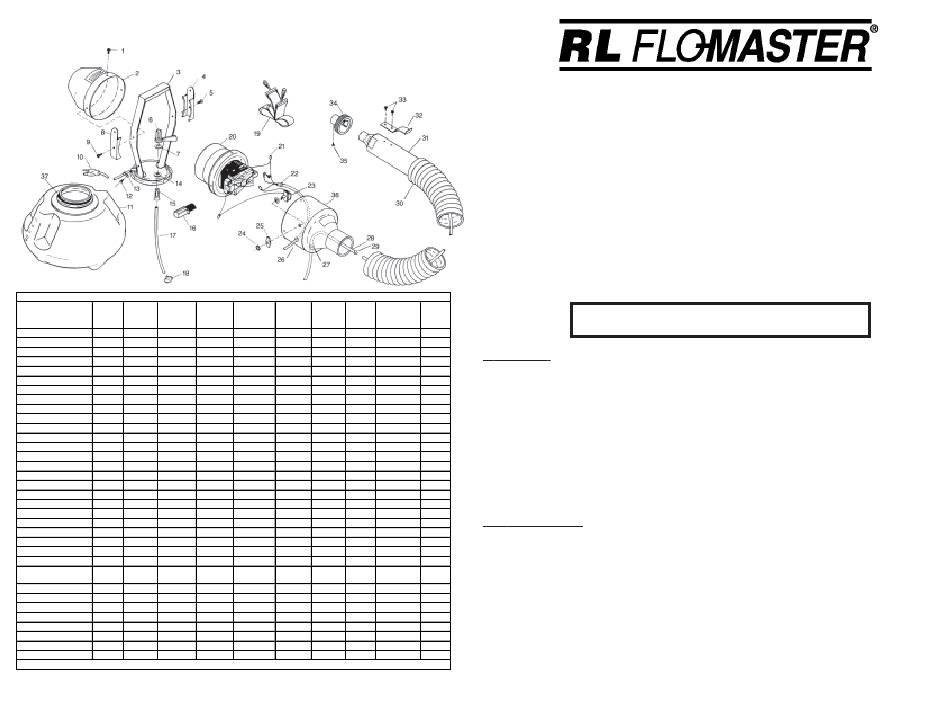

RL Flomaster 1952B Operating Instructions

MODEL 1026B
Parts List for Model 1026B
Parts Outlet kit Switch Kit 120 volt kit
944-840 944-825 944-830
1. Screw # 10 *
2. Intake Housing *
3. Handle
4 & 8 strap hangers
6. Valve Lever
5 & 9 Frame Screws**
7. Washer
10. Cord
11. Canister
12. Clamp Screw *
13. Cord Clamp *
14. Grommet ** *
15. Pressure Tube
16. Brush **
17 & 28 Supply Tube *
18. Intake Strainer *
19. Strap
20. Motor 804-016
21. Wire Connectors * * *
22. Cord Stop * *
23. Switch *
24. Switch Plate Nut *
25. On/Off Plate *
26. Grommet *
27. Push Nut *
29. Adapter (supply
tube) *
30. Flex Hose *
31. Outlet Nozzle *
32. Storage Hook *
33. Screw # 8 *
34. Adjustment Hub *
35. Screw # 4 *
36. Outlet Housing *
37. Canister Gasket
** Denotes 2 each are required
IF YOU HAVE QUESTIONS REGARDING YOUR SPRAYER, PLEASE CALL 1-800-
253-4642, MONDAY - FRIDAY, 8:00A.M. TO 7:00P.M., ET
Parts List Model 1026
Cord kit 220 volt Kit Cord kit Frame Kit Misc. 220 volt Euro
(120V) 944-785 (220V) 944-601 Parts Kit
944-820 944-815 944-786
*
*
*
*
*
22 inch 20 ft
952-552
* *
* *
*
*
953-500
*
*
955-020
804-071
* * *
805-202
Damage in transit, wearing of nozzles or other parts, temperature, altitude, climatic
factors and manners of use may effect the performance of this equipment. Careful
maintenance, approved calibration procedures and repeated testing of output are
necessary for safe and satisfactory results. Users must determine that the rate of
application is proper for the chemical being used and the conditions under which
it is being applied.
Cord kit
Euro
948-306
WARNINGS:
•
DO NOT operate this sprayer in small, enclosed areas, or any area where any spray
or foreign material could be sucked into the air intake.
•
DO NOT overheat the motor. Be sure air intake is kept open at all times.
3 m
•
DO NOT use this sprayer for paint spraying.
•
DO NOT spray gasoline or other flammables.
*
•
* DO NOT alter the sprayer.
•
DO NOT store chemicals in canister
•
ALWAYS READ AND FOLLOW instructions for chemical to be applied.
•
IF SPRAY PATTERN BECOMES IRREGULAR, turn sprayer off, remove the intake
strainer and clean the screen.
•
IF CORD BECOMES DAMAGED, it must be replaced before further use.
804-071
•
DO Clean sprayer thoroughly after each use.
* *
SERVICE POLICY:
Do not attempt service or parts replacement beyond installation of parts listed in this
manual. Service to the motor requires special equipment and discharge rates are
carefully tested after service by factory personnel. For this reason, we recommend that
you always return your sprayer to Root-Lowell Manufacturing Co. for service.
Before returning the sprayer, clean thoroughly. Units containing spray solution residue
will not be accepted and returned to the sender freight collect. Pack the unit carefully,
enclosing a note describing the problem and send to:
NOTE: Buyer assumes all responsibility for safety and use not in accordance
with instructions.

OPERATING INSTRUCTIONS

for
ATOMIST ELECTRIC SPRAYERS
Models: 1952B and 1026B
SPECIAL NOTICE TO USERS
BEFORE USE, READ THIS MANUAL COMPLETELY.
KEEP MANUAL FOR FUTURE REFERENCE.
Customer Service Department
Root-Lowell Manufacturing Co.
1000 Foreman Rd.
Lowell, MI 49331
971-015
11/06
