TYR-f
No. 81.400

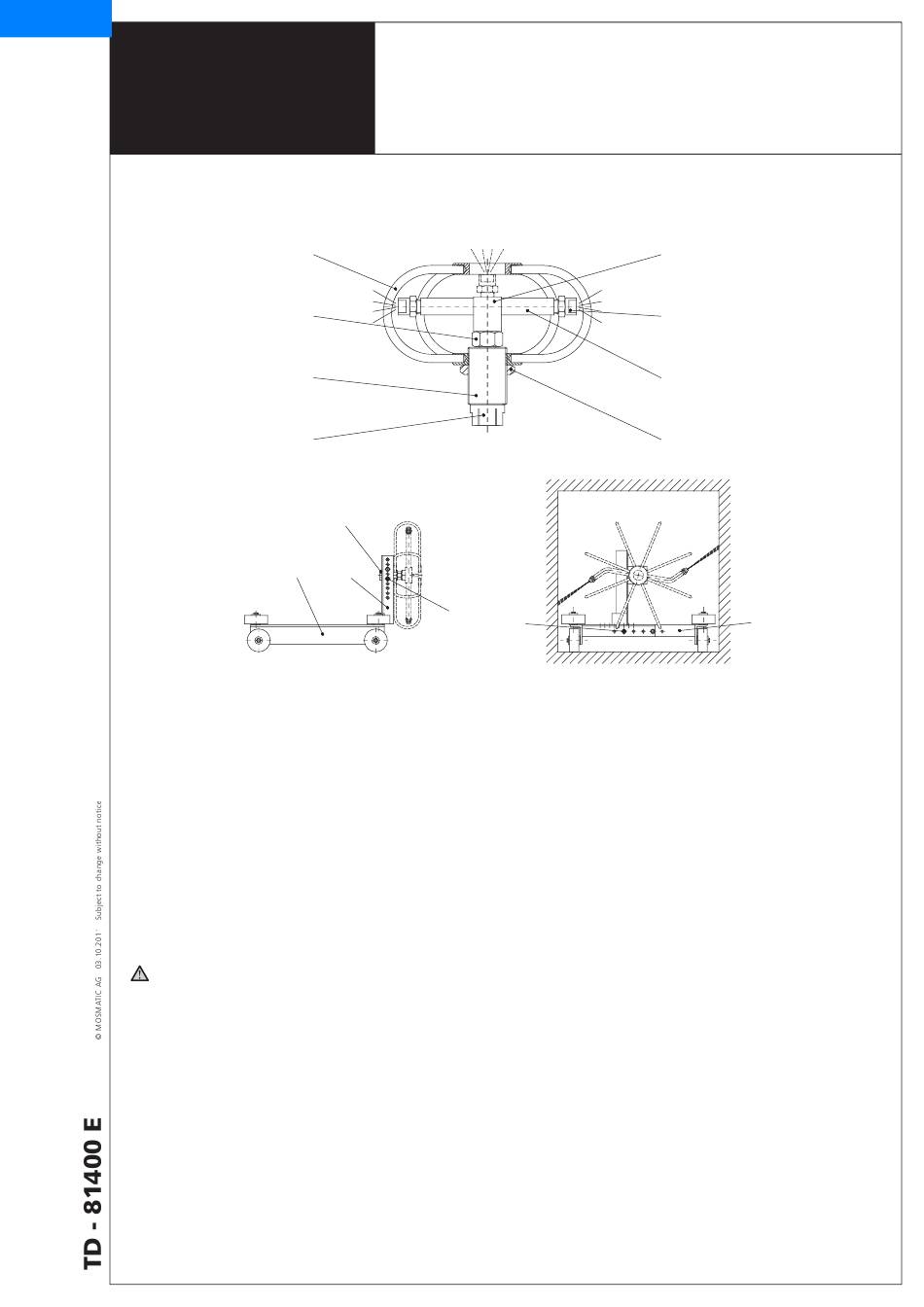

Assembly and connection

1. Screw the nozzles (a / accessory) into the pipes of the distributor-arm (b).
2. Turn the adjustable rotor guard (c) to the desired operating position and
secure with nut (h) tightly.
3. Fasten tightly the high pressure hose or the high pressure pipe
connection (d) of the swivel (e) coming from the high pressure pump.
Installation to the TYR Mobile (accessory)
1. Install the duct cleaner with the swivel (e) to the support (f) of the
TYR mobile (g / accessory) and tighten it by hand.
Secure the rotor guard (c) with the nut (h) to the support (f).
2. Adapt the TYR mobile (g / accessory) to the object to be cleaned, by
adjusting the frame (i) and the support (f) with the bolts (j).
3. Fasten tightly the high pressure hose or the high pressure pipe
connection (d) of the swivel (e) coming from the high pressure pump.
For your own safety
- Read all instructions before the initial operation. Check their proper
condition and that they operate safely.
- Always use protection gear when using products connected to high
pressure.
- Never direct any high pressure water-jet at humans, animals or electric
installations.
- Before any maintenance or nozzle-change, turn off the high pressure
water supply, e.g.: turn off and secure the power switch.
- After turning off the system, allow all self propelled equipment to come
to a complete stop before handling.
- Safety regulations and guidelines (Accident Prevention Rules) from the
manufacturer of your high pressure cleaner are applicable.
- Nozzle installation according to Nozzle manufacturer.
- Do not run the unit if spray-arm is out of balance or bent, damage to the
swivel will result.
- No modifications to the unit are permitted.
- The equipment may be installed and used only by particularly trained
technical personnel.
Duct cleaner *fixed*
Assembly and Service instructions
c
k
e
d
d
g
f

Assembly instructions

j
j

Service instructions

Exchanging the swivel

1. Hold the coupling (k) on the swivel (e) with a spanner and remove
the distributor-arm (l) by hand.
2. Loosen the nut (h) with a spanner then turn out the swivel (e) from
the rotor guard (c).
3. Implement the procedure for the installation of the new swivel (e)
in reverse order.

Exchanging the distributor-arm

1. Hold the coupling (k) on the swivel (e) with a spanner and remove
the distributor-arm (l) by hand.
2. Implement the procedure for the installation of the new distributor-
arm (l) in reverse order.

Exchanging the rotor guard

1. Hold the coupling (k) on the swivel (e) with a spanner and remove
the distributor-arm (l) by hand.
2. Disconnect the nut (h) with a spanner then turn out the swivel (e)
from the rotor guard (c).
3. Implement the procedure for the installation of the new rotor
guard (c) in reverse order.
l
a
b
h
i
