Summary of Contents for MSA AUER SSR 90

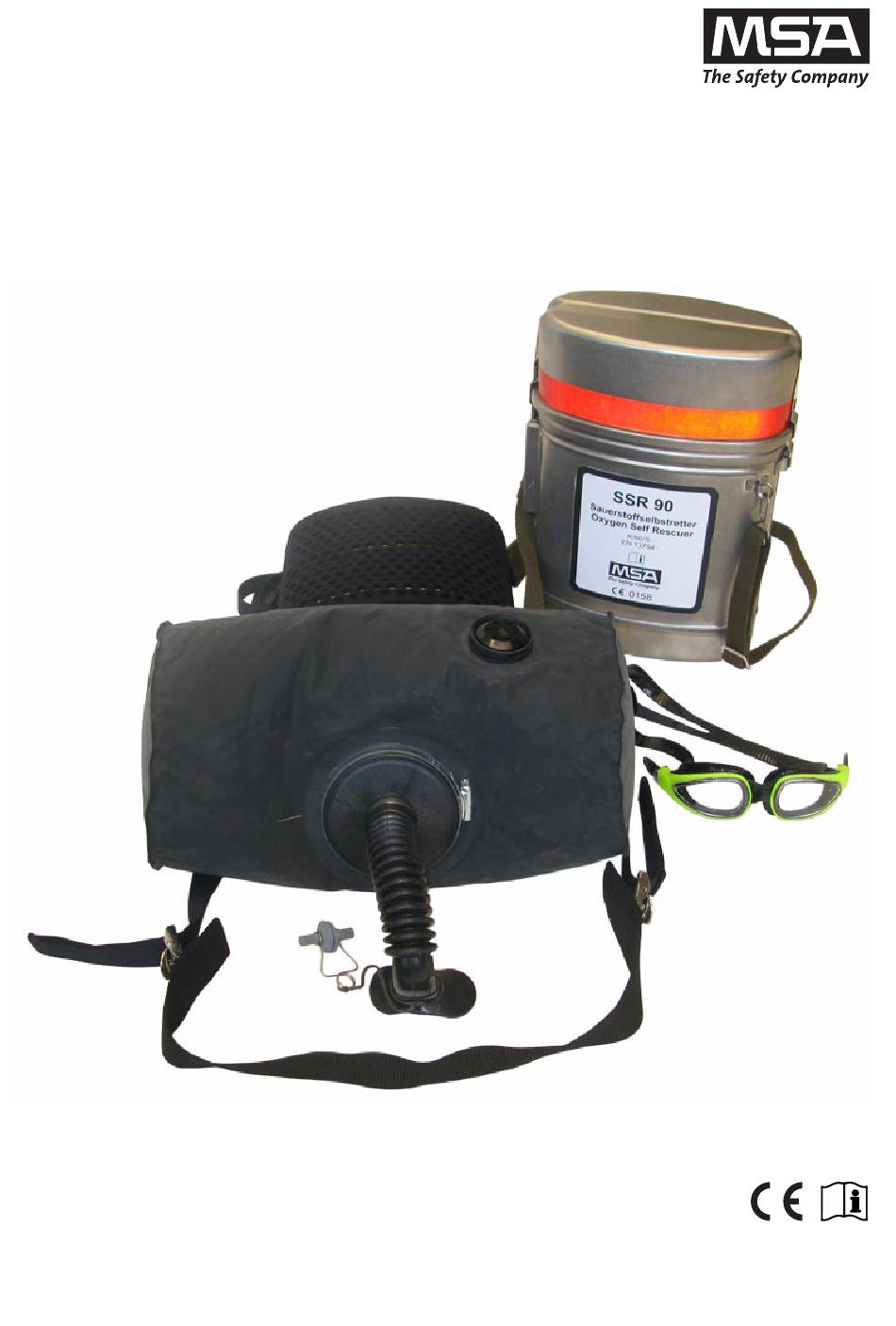

- Page 1 Operating Manual MSA AUER SSR 90 [K60] EN 13794 K/60/S Order No. 10112006/00...
- Page 2 MSA AUER GmbH Thiemannstrasse 1 D-12059 Berlin Germany © MSA AUER GmbH. All rights reserved...
-
Page 3: Table Of Contents
Maintenance and Cleaning .................. 12 Maintenance Instructions ................12 Return of Used Device ................12 Tightness Test .................... 13 Maintenance Intervals ................14 Documentation ................... 14 Transport regulations ..................15 Disposal ........................ 15 Technical Data ...................... 15 Ordering Information ................... 16 SSR 90 [K60]... -
Page 4: Safety Regulations
Safety Regulations Correct Use The SSR 90 [K60] self-rescuer is a respiratory protection device [chemical oxygen apparatus] for self-rescuing which is independent of the ambient atmosphere. It protects the wearer of the devices during escape from a dangerous ambient atmos- phere or whilst waiting for rescue from poisonous gases, toxic particles and oxygen depletion. -
Page 5: Liability Information
Also observe official regulations applicable in the country of use. Attention! Defective devices must not be used! Removed defect devices from service and return them to MSA for inspection. For wearers of spectacles, the special eye protectors [goggles] which are worn over the spectacles are recommended. SSR 90 [K60]... -
Page 6: Description
Exhalation Waist belt Nose clip Quick starter Gas protective goggles -canister Breathing tube with mouthpiece Pressure relief valve Particle filter Corrugated tube Breathing bag The device is contained in an enclosed and sealed sturdy stainless steel container. SSR 90 [K60]... -
Page 7: Function
Warning! The device must only be opened for use! Otherwise humidity from the ambient air can penetrate the open device and affect the performance. Used or opened devices must be replaced by new devices. SSR 90 [K60]... -
Page 8: Marking
Serial No. MSA AUER SSR 90 Date of manufacture SSR 90 [K60] EN 13794 Weight Demonstration and Training Device The demonstration and training device can be used for demonstration and practise of wearing and breathing without using a chemical canister. The inhalation air is tak- en from the ambient air and the exhalation air is expelled outside. -
Page 9: Use
20 seconds. Donning the Device Donning the SSR 90 [K60] Opening the Container (1) Place the container on a solid surface. The label "Side facing body" points to the user, the red locking lever points to the right. - Page 10 (8) Bite down on the two lugs. (9) Exhale into the device. So the breathing bag is inflated. (10) Now pull the start ring under the device forwards. The starter automatically fills the bag with oxygen. SSR 90 [K60]...
- Page 11 Fit Waist Belt (12) Fit waist belt on the right side and tighten. Fit Goggles (13) Remove goggles from neck strap. (14) Fit the goggles. (15) Tighten goggles straps. (16) Put the protective helmet on, if used. SSR 90 [K60]...
-
Page 12: Maintenance And Cleaning
(2) Pack the chemical canister inside the container and seal with the original lock- ing assembly of the container. Do not use finely cutted filling material. Place the other components of the device with the closed container in a carefully packed package. The components must be complete and undamaged. SSR 90 [K60]... -
Page 13: Tightness Test
The device is tight if the black pointer remains in the prescribed pressure range and if the pressure difference is no more than 5 mbar. If the pressure drop is more than 5 mbar, the unit must be replaced. SSR 90 [K60]... -
Page 14: Maintenance Intervals
4. Complete check = Internal inspection and check. The result will decide whether the device can be used further. Documentation MSA recommends keeping a file for each device where the serial numbers, the dates of manufacture and the dates and results of the inspections are recorded. SSR 90 [K60]... -
Page 15: Transport Regulations
The chemical canister contains strong alkaline and oxidizing substances [potassium hydroxide, potassium carbonate and potassium hyperoxide]. For disposal local regulations are to be observed. Technical Data SSR 90 [K60] Weight [total] approx. 4.9 kg Weight [ready for use] approx. 3.4 kg Dimensions height: approx.
