Doherty COU92/DRW User Manual

User Guide
Winchester Couch Drawer
Thank you for purchasing a drawer for your Winchester Couch. Before installing your new
drawer(s) please read these instructions carefully and ensure you fully understand them.

Kit of parts:

x1 Drawer
x4 Screws

Specifications:

Width:
Height:
Overall Depth:

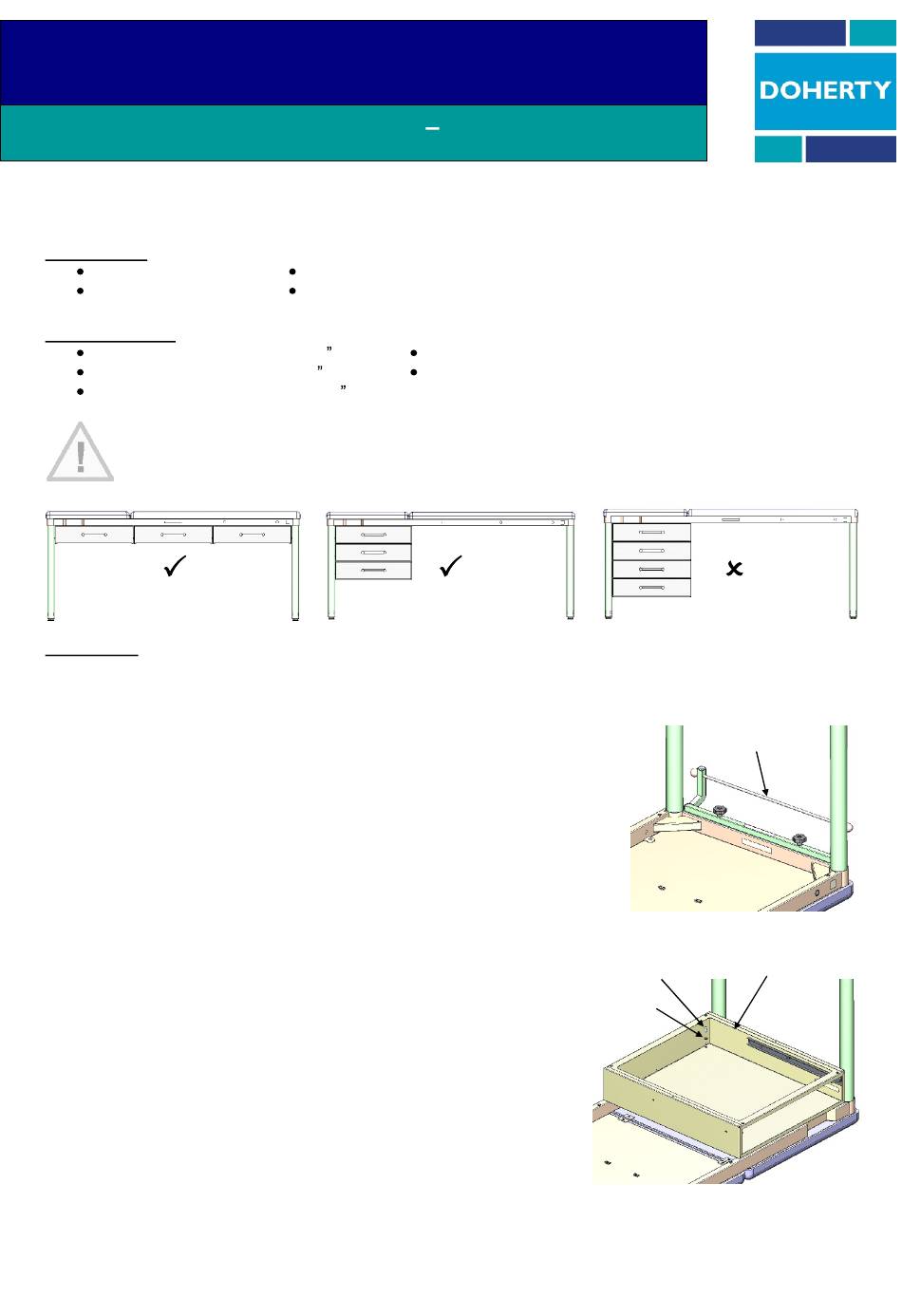

The Winchester couch allows the drawers to be positioned in multiple orientations. If the
drawers are to be stacked underneath each other no more than a maximum of 3 drawers
may be stacked together, as shown below.

Assembly:

1. Carefully remove all packaging and dispose of it in
a sensible and environmental fashion.
2. Turn your Winchester Couch over and carefully
place it upside down, ensuring the couch top is
protected against dirt or sharp objects. Sidhil Ltd.
recommend that the couch is turned over with
a minimum of two able bodied people.
3. If you wish to attach a drawer at the foot end and
the couch has a paper roll holder attached ensure
the paper roll is facing outwards, if it is not remove
the holder and turn it around.
4. Remove the inner drawer from the outer and place
the outer on the couch frame, ensuring the large
cut out section is facing upwards. Consider which
side you want to access the drawers from when
placing the outer drawer on the couch frame.
5. The drawer can be positioned at the head, middle
or foot end. Select the desired position and align
the slots in the outer drawer with the threaded
inserts in the frame.
6. With the aid of the allen key fasten the outer
drawer in place using the supplied washers and
screws. The outer drawer is secured in 4 corners.
(Move on to point 9 if drawers are not to be stacked)
x4 Washers
x1 Allen key
567mm (22.3 )
132mm (5.2 )
687.5mm (27.1 )
COU92/DRW
Net weight:
Max load per drawer:
11.5kg (25.4lb)
10kg (22lb)
Correct orientation of
paper roll holder if
drawer to be placed
at foot end
Screw Cut out
Washer
