Summary of Contents for RTI ATX-2

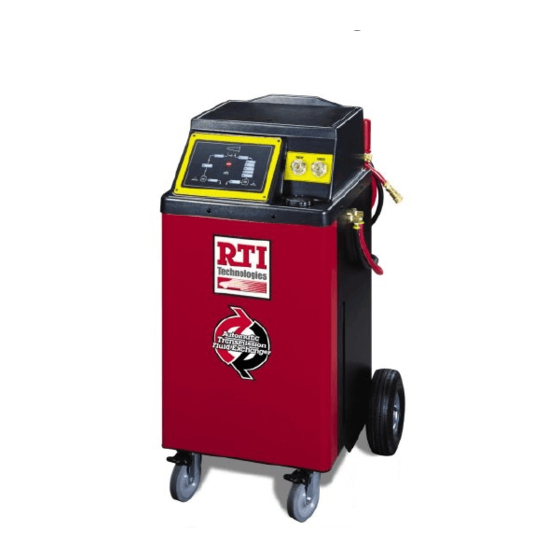

- Page 1 OPERATION MANUAL ATX-2 Automatic Transmission Exchanger RTI Technologies, Inc 4075 East Market St. York, PA 17402 800-468-2321 www.rtitech.com Manual P/N 035-80854-00 (Rev A)
-
Page 2: Table Of Contents
TABLE OF CONTENTS Component Description ..... . . 2 Safety Precautions ......3 Keypad Functions . -
Page 3: Component Description
COMPONENT DESCRIPTION Unpack all components. Use laminated placard to verify fitting adapter quantities. Contact RTI if any items are missing or damaged. 12 INCH HOSE ADAPTER 12 INCH HOSE ADAPTER (STRAIGHT) (90°) FITTING ADAPTER SET PRESSURE GAUGE KEYPAD NEW - USED SIGHT BOWLS... -
Page 4: Safety Precautions
Safety Precautions WARNING: Failure to follow these precautions can result in serious injury or death. • Read and understand the Operation Manual completely before operating this unit. • Always wear proper eye and skin protection when operating and maintaining this equipment. •... -
Page 5: Keypad Functions
2. The fluid is moved by both the vehicle transmission pump removing the used inside the vehicle and the ATX-2 pump replacing it with new. The procedure is complete when the buzzer sounds continuously until the stop button is pressed. Refer to page 9 for complete instructions Transmission fluid is emptied completely from the new fluid tank inside the ATX-2. - Page 6 Removes ½ quart of fluid from the transmission. Fluid is moved by the vehicle transmission pump into the used fluid tank of the ATX-2. The ATX-2 buzzer will sound continuously until the stop button is pushed when procedure is complete. Refer to page 9 for complete instructions.
-
Page 7: Connecting To The Transmission System
Connect 12 inch adapter hoses to fitting adapters. Connect 10 ft black and red hoses (right side of ATX-2) to the 12 inch adapter hoses. Page 6... - Page 8 Set the park brake and turn engine on, listen for the buzzer to sound once loudly and for the READY light on the keypad to stay illuminated. The ATX-2 pressure gauge on the control panel will indicate a positive pressure if the connection to the transmission is correct.
-
Page 9: Flush
Press the DRAIN PAN button on the keypad. Buzzer will sound once and DRAIN PAN light will stay illuminated. If an error occurs the buzzer will sound three times and the ATX-2 will not proceed with the procedure, check all connections. -
Page 10: Fluid Exchange
The change of fluid can be monitored through the ATX-2 Old-New Sight Bowls. These bowls display the new bright red fluid leaving the ATX-2 and the dirty brown to black fluid coming from the vehicle transmission system. The color of the used should become almost equal to the new as the exchange ends. -
Page 11: Disconnecting From The Transmission System
Turn vehicle engine off. READY light should go off. Make sure READY light is OFF before proceeding. Disconnect ATX-2 from the vehicle battery. Disconnect 10 ft black and red hoses from the 12 inch adapter hoses. Disconnect 12 inch adapter hoses from fitting adapters connected to the transmission system. -
Page 12: Empty Used
OFF. The ATX-2 10 ft black and red hoses must be disconnected from the transmission. READY light is off. Couple any fitting adapter to the end of the 8 ft black hose (left side of ATX-2). Place end of hose in bulk used container. -
Page 13: Maintenance
The ATX-2 will provide many years of reliable service if properly maintained. The following checklist will ensure that the ATX-2 will run at peak efficiency and present an image to your customers that your shop performs high tech transmission services. -
Page 14: Parts Identification
022-80111-00 Pressure Switch 4-6 psig SPST 026-80245-00 Pump Gear .33 GPM 12VDC 300-80014-00 Hose Assy Straight 300-80015-00 Hose Assy 90 Degree 300-80001-00 New Fluid Tank Assy ATX-2 300-80002-00 Used Fluid Tank Assy ATX-2 031-80000-00 Load Cell 35 Kg Page 13... -
Page 15: Flow & Wiring Diagram
FLOW & WIRING DIAGRAM Page 14...
