Summary of Contents for CAROL BTM-210C

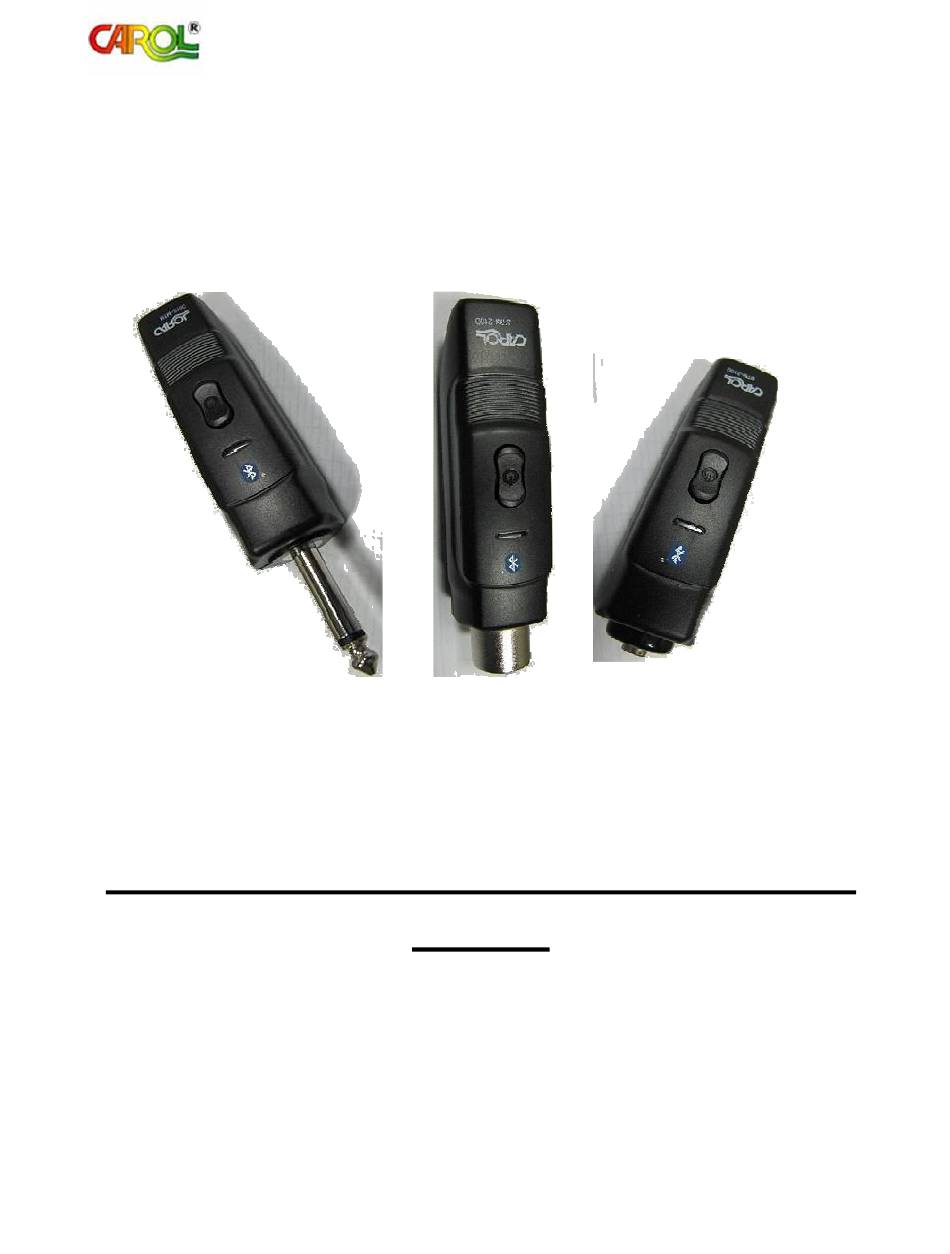

- Page 1 Taiwan Carol Electronics Co., Ltd. Bluetooth Transmission Adapter BTM-210 Manual 1. Bluetooth D35 Transmitter: Model: BTM-210C, FCC ID: G4RBTM-210C 2. Bluetooth XLRT Transmitter: Model:BTM-210D, FCC ID:G4RBTM-210D 3. Bluetooth Receiver: Model: BTM-210R, FCC ID: G4RBTM-210R...
-
Page 2: Components And Function
Taiwan Carol Electronics Co., Ltd. We appreciate your smart choice for the BTM-210 Bluetooth Transmission Adapter. Before use please read carefully the manual to obtain the correct operating instructions and the optimal performance. BTM-210 Bluetooth Transmission Adapter is designed for short distance, high quality, free of movement restriction, portability and low interference with the latest Bluetooth transmission technology. - Page 3 Model : equipment model Battery Cover : for protecting battery and positioning replacement battery 2.3 D35 transmitter (TX) BTM-210C Ø3.5 Female Socket : for connecting microphone with Ø 3.5 male connector at output end LED Indicator : for indicating operating status and function...
-
Page 4: Module Status
Taiwan Carol Electronics Co., Ltd. 3. Operating Instructions 3.1 Product Use 3.1.1 By using one receiver (RX) and one transmitter (TX), you will be able to transmit sound from dynamic (XLR Connector) microphone (Ø3.5 Phone Jack connecting capacitor microphone) through Bluetooth Transmission Adapter to amplifier. - Page 5 Taiwan Carol Electronics Co., Ltd. 3.3 Operating Instructions 3.3.1 Install and replace battery (1) Flip Bluetooth receiver (transmitter) for battery cover to face up. Figure 1 (2) Hold down the bump (as shown inside the circle in Figure 2) and push back and down to open the battery cover.
- Page 6 Taiwan Carol Electronics Co., Ltd. 3.3.2 Power On (1) Put batteries in Bluetooth receiver (transmitter). (2) Hold down the button for 2 seconds to turn on Bluetooth receiver (transmitter). (3) Green light will flash twice every 1 second. (4) Bluetooth receiver (transmitter) will be in automatic connection status.
-
Page 7: Receiver (Rx)
Taiwan Carol Electronics Co., Ltd. 3.3.6 Operating Procedures Receiver (RX) XLR, D35 Transmitter (TX) Hold down button Hold down button Enter in 3 seconds Enter in 3 seconds Power On Power On (3.3.2) (3.3.2) After 5 After 5 Automatic Automatic... -
Page 8: Troubleshooting
Taiwan Carol Electronics Co., Ltd. 4. Troubleshooting Problem Solution Cannot power on Make sure that battery power is sufficient. If power still cannot be turned on, remove batteries first and complete cut off the power for Bluetooth receiver (transmitter). After 10 seconds, try it again. -
Page 9: Special Notes
After connection, on computer select the Bluetooth device as sound input device. 6.7 The name of transmitter (TX) is shown on computer as “CAROL BTM-210D” or “CAROL BTM-210C”; the name of receiver (RX) is shown on mobile phone or computer as “CAROL BTM-210R”. - Page 10 Taiwan Carol Electronics Co., Ltd. Bluetooth Transmission Adapter BTM-210 serial Brand : CAROL Bluetooth D35 Transmitter: Model: BTM-210C Bluetooth XLRT Transmitter: Model:BTM-210D Bluetooth Receiver: Model: BTM-210R EU Declaration of Conformity and Restrictions TAIWAN CAROL ELECTRONICS CO., LTD. Hereby, declares that this equipment complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- Page 11 / BTM-210C FCC ID: G4RBTM-210R / G4RBTM-210D / G4RBTM-210C Bluetooth Transmission Adapter BTM-210 serial Brand : CAROL Bluetooth D35 Transmitter: Model: BTM-210C, FCC ID: G4RBTM-210C Bluetooth XLRT Transmitter: Model:BTM-210D, FCC ID: G4RBTM-210D Bluetooth Receiver: Model: BTM-210R, FCC ID: G4RBTM-210R this device complies with Part 15 of the FCC Rules. Operation is subject to the following...
- Page 12 Taiwan Carol Electronics Co., Ltd. TAIWAN CAROL ELECTRONICS CO., LTD. No. 202 Tung Kuang Road, Taichung, Taiwan. Tel: +886-4-22347677; Fax: +886-4-22348698 Email: twncarol@ms2.hinet.net www.taiwancarol.com...
