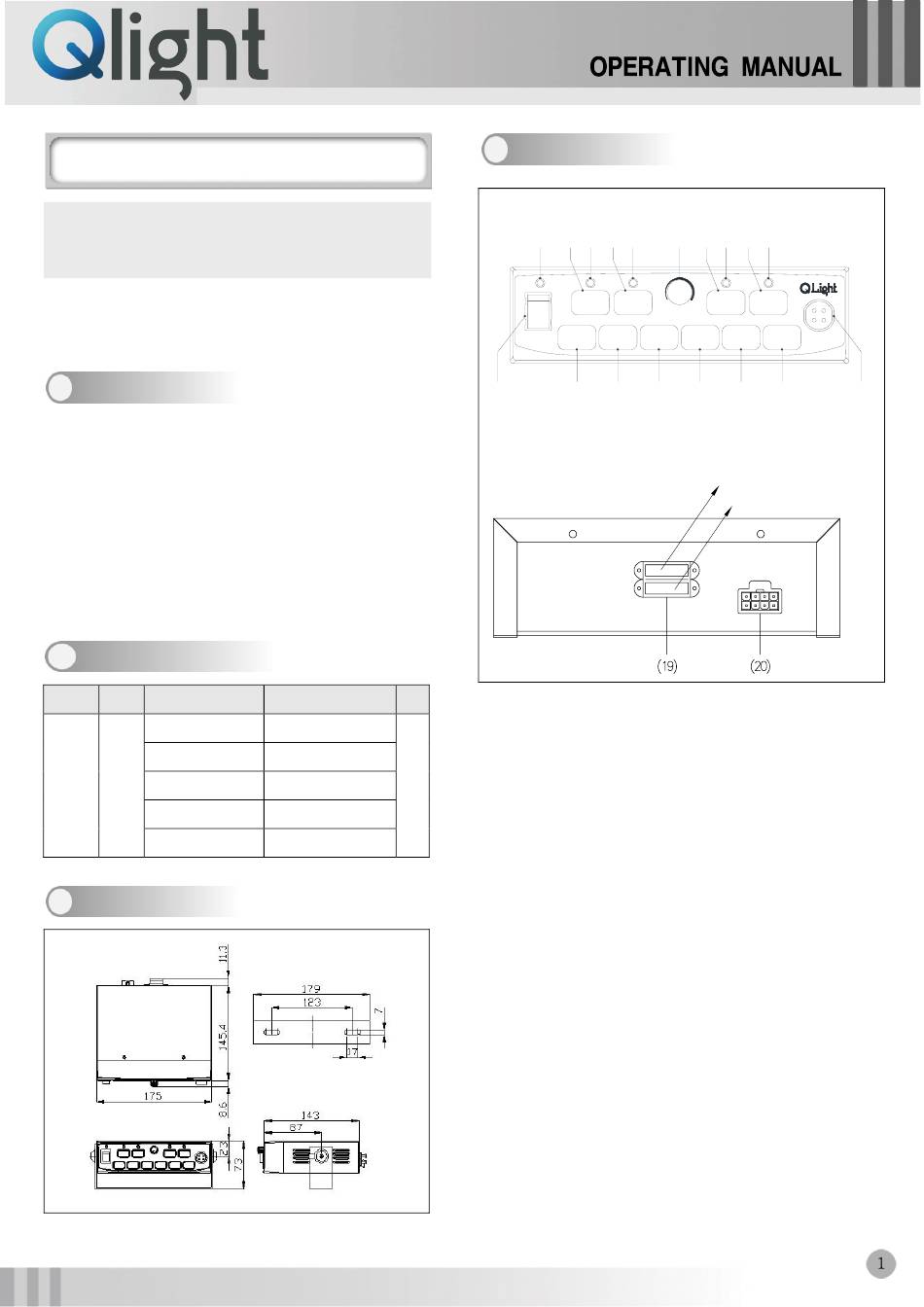

Qlight SAMP12 Operating Manual

ww w.qlight.com
SAMP
OPERATING MANUAL
EMERGENCY SCATTERING AMP
Thank you for purchasing QLight product. Please read this manual
carefully before installing this product for safe and long use.

Product Features

1
▪ One touch function allows convenient connection between
signaling sound and warning light.
▪ 50W high power with clear and stable signal sound
▪ Built-in switch for emergency message on microphone
▪ This product can be combined with Emergency light bar (ELV,
ELM).
▪ Aluminum and steel housing feature provides excellent durability
to vibration.
▪ Materials : Housing-STEEL, Bottom plate-AL
▪ Output(Max) : 50W

Specification

2
Model Voltage Built-in sounds
Emergency
Police
SAMP12/
DC12V/
Fire
DC24V
SAMP24
Buzzer
Horn

Technical Diagram

3
Frequency WGT
450~900Hz
550~1650Hz
550~1350Hz
1kg
0~1300Hz
0~1000Hz

Structure Drawing

4

(Front Panel)

(1) (7) (2) (8) (3)
Y / L F / L
ON
OFF
YELP WAIL HI-LO
POWER
(6) (12) (13) (14)
(Rear Panel)
1. Front panel
(1) Power supply LED.
(2) Emergency LED.
(3) Flashing light LED
(4) Warning light LED
(5) Emergency/warning sound LED
(6) Power switch
(7) Emergency button
(8) Flashing light button
(9) Volume control lever
(10) Warning light button
(11) Emergency sound/warning light button
(12) Policy sound button
(13) Fire sound button
(14) Emergency sound button
(15) Buzzer sound button
(16) Horn sound button
(17) AUX button
(18) Microphone input terminal
2. Rear panel
(19) AMP power supply fuse (Upside Amber fuse 20A(AMP), downside
Red fuse10A(LIGHT)).
(20) AMP and Light power supply input terminal
(9) (10) (4) (11) (5)
W / L H / L
Max
Min
VOL.
BUZZ HORN AUX
MIC
(15) (16) (17)
AMBER FUSE 20A(AMP)
RED FUSE
(Warning light)
(18)
10A
