Silicon power Sky Share H10 User Manual

Usb 3.0 wifi hard drive
Hide thumbs Also See for Sky Share H10:
Table of Contents

Advertisement

Quick Links

USB 3.0 WiFi Hard Drive
Sky Share H10 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky Share H10 and is the answer not in the manual?

Questions and answers

Related Manuals for Silicon power Sky Share H10

Summary of Contents for Silicon power Sky Share H10

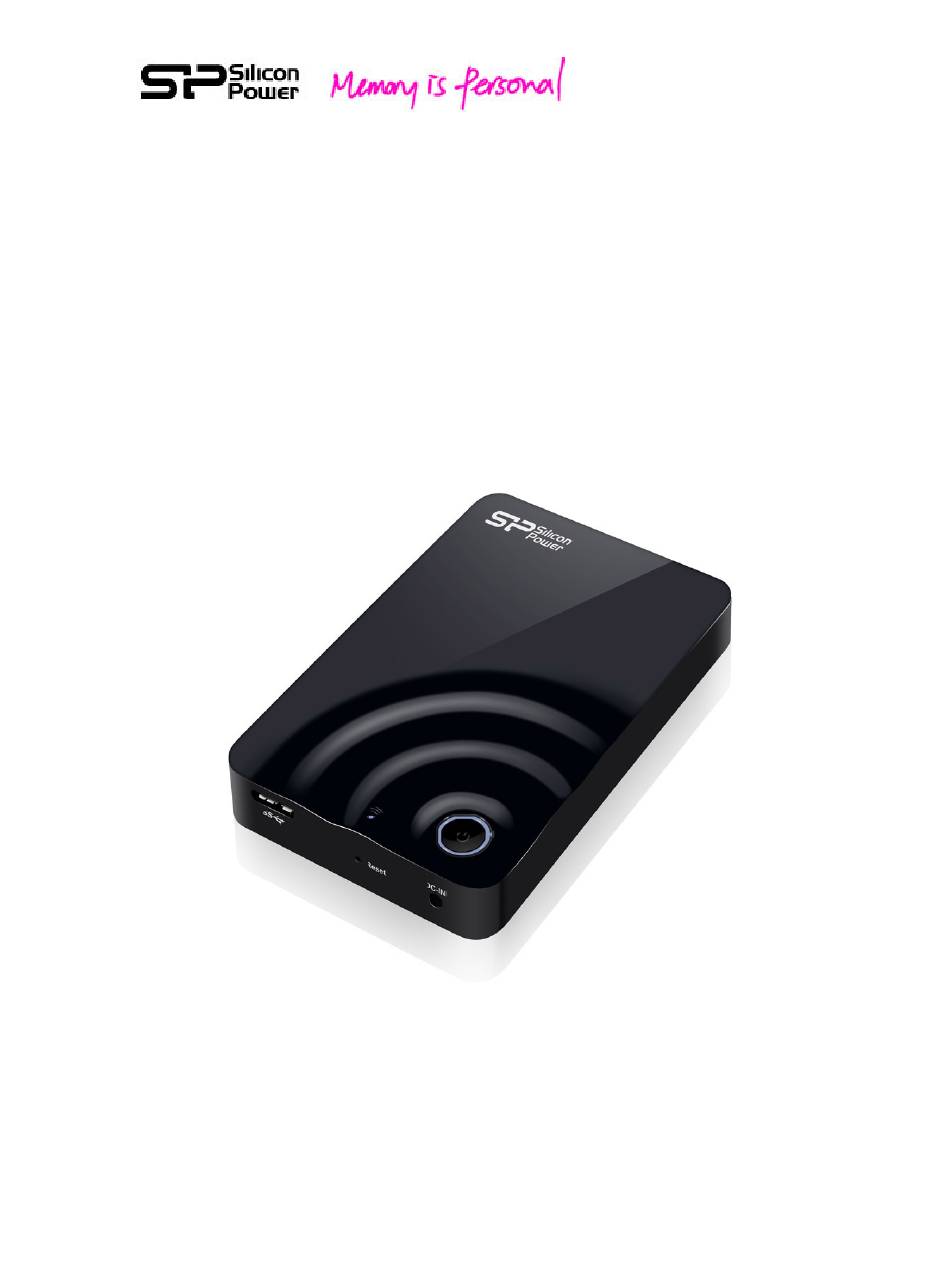

  • Page 1 USB 3.0 WiFi Hard Drive Sky Share H10 User Manual...

  • Page 2: Table Of Contents

    1. Introduction......................3 2. Spec and System Requirements................5 3. Sky Share H10 Overview ..................6 4. Sky Share Web UI Overview ................. 8 5. Sky Share app Overview ..................11 6. Sky Share Wi-Fi Security ..................13 7. Setting up Sky Share Device................13 8.

  • Page 3: Introduction

    Sky Share H10 also provides iPhone App, iPad App, Andorid App, and Web UI (Web browser User Interface) to support various WiFi devices mentioned above. The compact size design makes Sky Share H10 easy to carry, and it is also designed for wireless and cableless operation, providing bigger capacity to support your Smartphone and tablet as a wireless portable media library.
  • Page 4 (Japan, Taiwan, USA...etc) (UK...etc) USB to DC Jack x 1pcs Sky Share x 1 pcs USB 3.0 cable x 1pcs Quick Guide including warranty card x 1pcs...

  • Page 5: Spec And System Requirements

    File system: FAT32/NTFS Supporting file types: You can store any file in Sky Share H10, but need your WiFi device to support the file format and resolution you want to play or view. Sky Share iPhone/iPad App: you can play or view the following file types.- Video: .m4v, mp4, .mov...

  • Page 6: Sky Share H10 Overview

    3. Sky Share H10 Overview Fig. 1 Sky Share H10 Overview Power button (1): Once pressing the power button, Sky Share H10 is turn on and will go into WiFi Mode in a minute. Power button LED (2): Solid Green: Full battery...
  • Page 7 Blinking Blue: Data Access LED off: Hard drive Safety removal USB 3.0 Micro B (4): Connects Sky Share H10 to your computer and then Sky Share will behave like a portable hard drive (PHDD). Note: No power charge in this connection. All charging is required to go through DC Jack (5) of Sky Share H10.

  • Page 8: Sky Share Web Ui Overview

    4. Sky Share Web UI Overview Sky Share Web UI provides a solution for a user to play and view his files stored in Sky Share by his WiFi device’s web browser. After connecting to Sky Share, opening web browser, and typing www.skyshare.com or 192.168.49.73 in the URL (Uniform resource locator) column, Sky Share Web UI will be displayed.
  • Page 9 file structure view to find your file. Search: Input keyword in the search column. Sky Share will display all files associated with the keyword. Sort: The files can be sorted by the file type, file size, alphabet of file name, or creation date.
  • Page 10 Download icon: You can click to download the selected files from Sky Share to your computer. Play icon: After you select one or multiple files, you can click play icon to play the media files selected by you.

  • Page 11: Sky Share App Overview

    Home: Home page of Sky Share App You can view all files stored in Sky Share H10 in home directory. Default Media Folders: Video, Photo, Music, Document Sky Share avoids sorting the whole hard drive during each power-on. This can save a user’s time during each device power-on when he stores a large number of files in...
  • Page 12 Sort: Same as Web UI function Tool/Cancel: Tap “Tool” button to select media files for play, upload to Sky Share, or download to iPhone/iPad local folder. Tap “Cancel” button to cancel the selection function. Select all: Tap “Select all” and then all files will be selected. Deselect all: Tap “Deselect all”, all selections will be cleared.

  • Page 13: Sky Share Wi-Fi Security

    6. Sky Share Wi-Fi Security Sky Share H10 is a wireless broadcasting device within its range (up to 30 Meters/100 Feet). Note: The signal range is related to the environment where you use Sky Share, too. When you are using Sky Share, be aware that your files are visible to any device connecting to your Sky Share.
  • Page 14 Step 2: Fig. 6 Copy files to Sky Share from your computer in PHDD mode In PHDD mode, you can find video/photo/music/document sub-folders under Sky Share directory. Copy your video, photo, music, document files into the default video, photo, music, document folders respectively. Note: You can copy any file to the Sky Share, but the device you use to connect Sky Share will only play or view the file formats it supports.
  • Page 15 During the product shipment, the build-in battery of Sky Share is partially charged to enable Sky Share access. When the power button turns red, please charge your Sky Share by the included USB to DC cable and USB Wall adapter. In order to use the battery efficiently, it’s recommended to activate the battery.

  • Page 16: Regarding File Format

    For Android Smartphone/Tablet: 1. Install the Sky Share app (You can search “Sky Share” on the Android Market and have a free install) 2. On the Android Smartphone/Tablet, Select settings and then enable WiFi 3. Select and connect Sky Share from the wireless network list 4.

  • Page 17: How To Play And View Your Media Files

    9. How to play and view your media files Sky Share Web UI is available for any wireless-enabled tablet, computer, or smartphone with recommended web browsers. You can play and view your media files by Sky Share Web UI. In addition, Sky Share app for iPhone and iPad is available for free download now. You can download Sky Share app and then play and view your media files by Sky Share app.
  • Page 18 the music files. If you would like to remove the music files from the play list, you can tap “delete” or “Empty” to remove one music file or all music files from the play list respectively. Fig. 8: Music play list : Tap to repeat single music file play : Tap to repeat all selected music files play in turn : Tap to play the music / Tap again to pause the music play...
  • Page 19 Viewing Photos 1. Connect to Sky Share 2. Open the Sky Share app or a Web UI. 3. Select the Photo tab on the left side of the screen 4. Tap the Photo you want to watch and then the photo will be displayed. If a photo file you copied to the Sky Share device cannot be displayed, it may be related to the file format not supported by your media player.
  • Page 20 To stop playback of a photo slide show: For the app: Tap the screen and then tap the Done button in the upper left corner. For a browser: Close the current picture or tap the back arrow Viewing Documents 1. Connect to Sky Share 2.
  • Page 21 Fig.11 Thumbnail view of Web UI Fig.12 Folder view of App...
  • Page 22 Fig.13 Thumbnail view of App The App further provides the file categorization function in folder view and thumbnail view of Home. You can select “All”, “Music”, “Video”, “Photo”, or “Document” listed on the bottom of the browsing area to filter the file types displayed in current directory.

  • Page 23: Downloading Content To Your Wifi Device Or Computer

    Search file If you store a huge number of files in Sky Share and want to find the specific file for viewing or playing, you can input the keyword in the search column and then tap search. The system will find all files related to your input keyword and list them in the browsing area.

  • Page 24: Uploading Content To Sky Share From Your Wifi Device Or Computer

    11. Uploading Content to Sky Share from Your WiFi Device or Computer In addition to streaming your content from the Sky Share device, you can upload files from your media device or computer to Sky Share. For a Browser, you can upload your files from your WiFi device or computer to Sky Share.

  • Page 25: Sky Share Setup Page

    12. Sky Share Setup Page Sky Share is designed with default setting in production. You may want to adjust its setting in use. For example, setting your password, change the name of Sky Share, upgrade its firmware and more. The setting adjustment can be done through the setup page of Sky Share Web UI or App.
  • Page 26 When you tap Restart, Sky Share will take a while to restart the system. Once the system is ready (Referring to chapter 3, Sky Share H10 Overview - LED indication), please re-connect to Sky Share and open Sky Share Web UI or App for a further operation.
  • Page 27 Sky Share before you enable Reset Default. Change Network Name (SSID) The Sky Share H10 is named “Sky Share” by default. This is the network name shown in the available network list during your wireless connection. It’s also known as the SSID (Service Set Identifier).
  • Page 28 7. The system will re-confirm if you do want to execute firmware upgrade. Please tap OK. 8. Sky Share H10 will take a while to upgrade the firmware. Please wait for a while. Once the firmware upgrade is completed, the LED of WiFi/Data access will change to solid blue from blinking blue Note: It’s important to plug adapter to have a stable power for firmware upgrade.
  • Page 29 Fig. 16 Network connection confirmation 2. Network Connection Off If you would like to turn off Network connection, please go to “setup page” of Web UI or App and then press “OFF” of Network connection. Sky Share will disable this function and restart again. After the restart is ready, please reconnect to Sky Share.
  • Page 30 To turn off the password Please switch to the setup page of Sky Share Web UI or App. Tap OFF of Wireless Security. The system will re-confirm if you do want to disable the password. Once you tap “Yes”, Sky Share will take a while to switch off Password. Please wait for a while.

  • Page 31: How To Delete The Files Stored In Sky Share

    13. How to delete the files stored in Sky Share You can delete files in PHDD mode. Once you plug USB 3.0 cable to your computer, the Sky Share just behalves as a normal PHDD. You can read, write, and erase files in Sky Share as a PHDD.

  • Page 32: Troubleshooting

    I cannot play the file bigger than 4GB. The default format of Sky Share H10 is FAT32. FAT32 file system can only support the file size up to 4GB. If you want to play the file bigger than 4GB, you can format Sky Share into NTFS file system, remove USB cable, power-on Sky Share, and then the default folders will be automatically created.
  • Page 33 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
  • Page 35 temperature environment. 7. Do not allow this product to have contact with liquid(s). 8. When scrapping this product, the battery needs to be disposed of properly.
