Summary of Contents for ARETE AB100

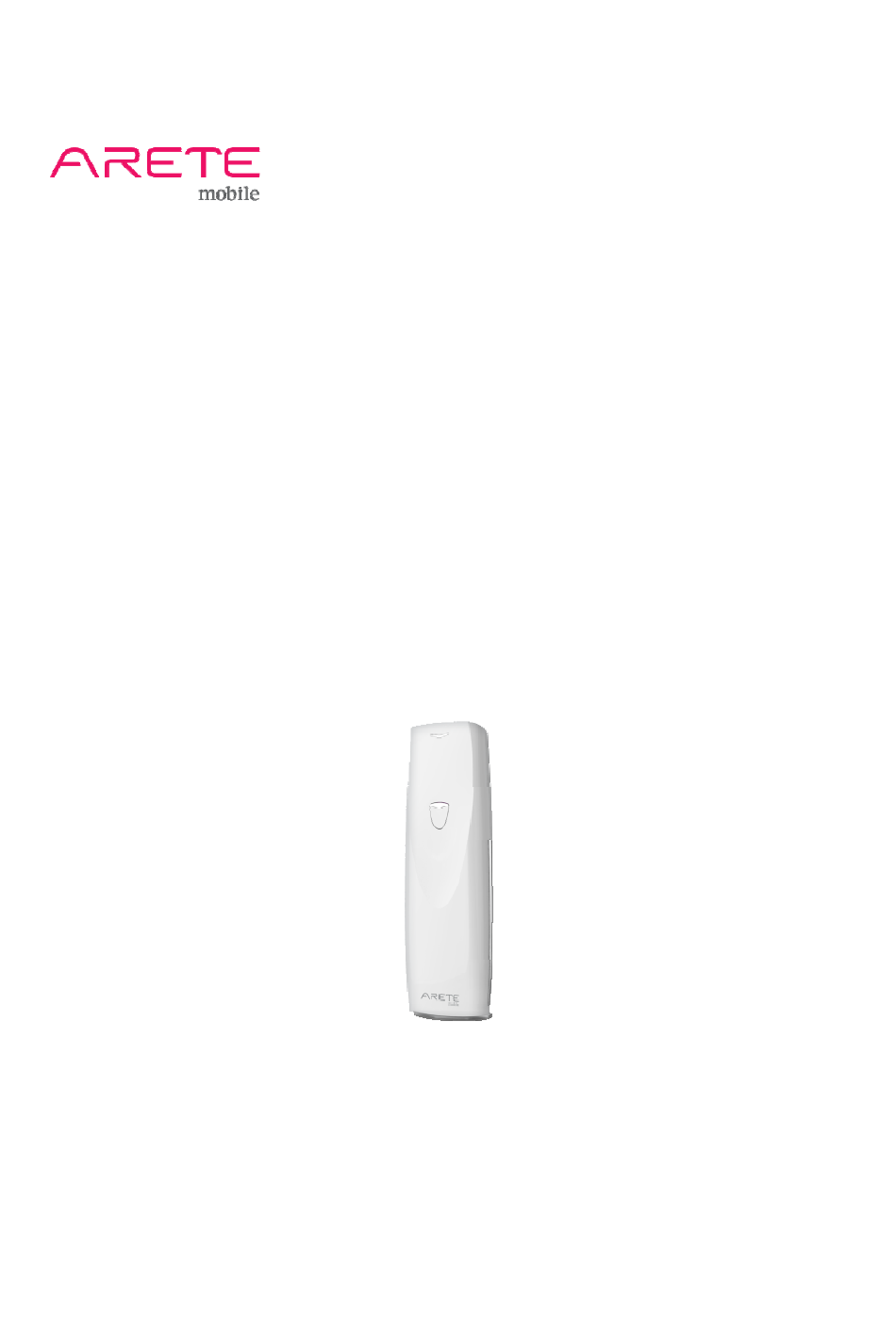

- Page 1 User Guide AB100 Bluetooth UHF RFID Reader...
- Page 2 AB100_User Guide Notice Registered Trademark ARETE mobile is launched by PHYCHIPS Inc. for mobile device and currently registered worldwide with its ARETE mobile trade mark legally protected by law. © 2012 PHYCHIPS Inc. All rights reserved. This User Guide is produced by PHYCHIPS Inc. and protected by Copyright Laws.
-
Page 3: Table Of Contents
AB100_User Guide Contents Chapter 1: Understanding AB100 ......................4 1.1 AB100 at a Glance ........................4 1.2 Accessories ..........................4 1.3 Specifications ..........................5 Chapter 2: Basics ..........................6 2.1 Activating ............................ 6 2.2 Application: How to Install in your Phone................... 7 2.3 Bluetooth Pairing ........................ -
Page 4: Chapter 1: Understanding Ab100
AB100_User Guide Chapter 1: Understanding AB100 1.1 AB100 at a Glance Status Indicator_LED RFID Antenna Power ON/OFF Button Charger Connector Strap Holder 1.2 Accessories USB Cable Neck Strap Quick Manual 4 / 22... -
Page 5: Specifications
AB100_User Guide 1.3 Specifications PHYSICAL Dimension(WxLxH) 35.9 x 101.5 x 11.7mm Weight Indication Power on LED(Blue), Charging LED(Red/Green), Tagging(Red blinking) Battery Rechargeable, 350mAh Li-polymer Continuous Time 2.5 hours , Sleep mode function Charging Micro USB 5pin Color White RFID PERFORMANCE RFID Reader Chip PR9000 Air Protocol... -
Page 6: Chapter 2: Basics
3) LED indicator will be blinked for 60 seconds in blue color 2. Power OFF 1) AB100 will be changed to “Power off” mode automatically if fail to pairing for 60 seconds 2) AB100 will be changed to “Power off” mode automatically after 60 second of pairing and tag... -
Page 7: Application: How To Install In Your Phone
AB100_User Guide 2.2 Application: How to Install in your Phone 1. Connect your phone to PC 2. Turn on USB storage 3. Copy apps into your phone 1) Your phone shows up as a removable device on your PC. 2) Create a folder and copy apps on removable drive. 7 / 22... - Page 8 AB100_User Guide 4. Install 1) Allow unknown sources 2) Open your file browser app 3) Install the APK file 8 / 22...
-
Page 9: Bluetooth Pairing
AB100_User Guide 2.3 Bluetooth Pairing 1. Turn on Bluetooth at Settings 2. Turn on AB100 3. Run App 4. Touch Pair 5. Connected 9 / 22... -
Page 10: Inventory
AB100_User Guide 2.4 Inventory 1. Touch Read button to inventory tag continuously 2. Touch Stop button to finish inventory tag 3. Press shortly the reader button to inventory tag 1 short time 10 / 22... -
Page 11: When Disconnected From Phone
AB100_User Guide 2.5 When disconnected from phone 1. Turn on AB100 2. Scan for Device 3. Now connected 11 / 22... -
Page 12: How To Grip
AB100_User Guide 2.6 How to Grip 1. Do not cover RFID antenna area by hand 2. Hand Effect RFID reader performance will be lower if antenna area covered by hand. GOOD RFID Antenna 12 / 22... -
Page 13: Chapter 3: How To Use Application
AB100_User Guide Chapter 3: How to use Application 3.1 Main Display - Connection Status: Connection status with AB100 such as not connected, connecting, connected - Read Button: Start to read “Tag EPC” - Clear Button: Remove Read Record - Stop Button: Stop Tag Reading... -
Page 14: Read Epc Tag
AB100_User Guide 3.3 Read EPC Tag 1. Touch Read button to start Tag reading 2. Touch Stop button to stop tag reading 14 / 22... -
Page 15: Read Tag Memory
AB100_User Guide 3.4 Read Tag Memory 1. Touch long target EPC code 2. Touch Read Tag Memory 3. Give parameters 4. Touch Read Memory 5. Check Data 15 / 22... -
Page 16: Write Tag Memory
AB100_User Guide 3.5 Write Tag Memory 1) Touch long target EPC code 2) Touch Write Tag Memory 3) Give Parameters 4) Touch Write TAG 16 / 22... -
Page 17: Lock Tag Memry
AB100_User Guide 3.6 Lock Tag Memory 1) Touch long target EPC code 2) Touch Lock Tag Memory 3) Give Parameters 4) Touch Lock TAG 17 / 22... -
Page 18: Kill Tag Memory
AB100_User Guide 3.7 Kill Tag Memory 1) Touch long target EPC code 2) Touch Kill Tag 3) Give Parameters 4) Touch Kill TAG 18 / 22... -
Page 19: Additional Functions
AB100_User Guide 3.8 Additional Functions 1. Setting for Local Regulations 2. Save Setting to AB100 You can store your settings in AB100 flash memory by touching update button. If you touch erase button, stored setting are cleared. 19 / 22... -
Page 20: Chapter 4: Information
Chapter 4: Information 4.1 Safety Information 1. Do not disassemble or repair arbitrarily but contact where you buy when AB100 is in trouble. 2. Do not use chemical substance(alcohol, benzene, detergent etc) and water to clean AB100 3. Please avoid vibrations and shocks. Please place in a safe place when not in use. -
Page 21: Disposal And Recycling
AB100_User Guide 4.3 Disposal and Recycling You must dispose of AB100 properly according to your local laws and regulations. Because electronic components and a battery are included in the AB100. 4.4 Customer Service 1. ARETE mobile Customer Service 1) Phone: + 82 42 864 2402 2) Fax: + 82 42 864 2403 3) Email: sales@phychips.com... - Page 22 AB100_User Guide Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation ======================================================================...
