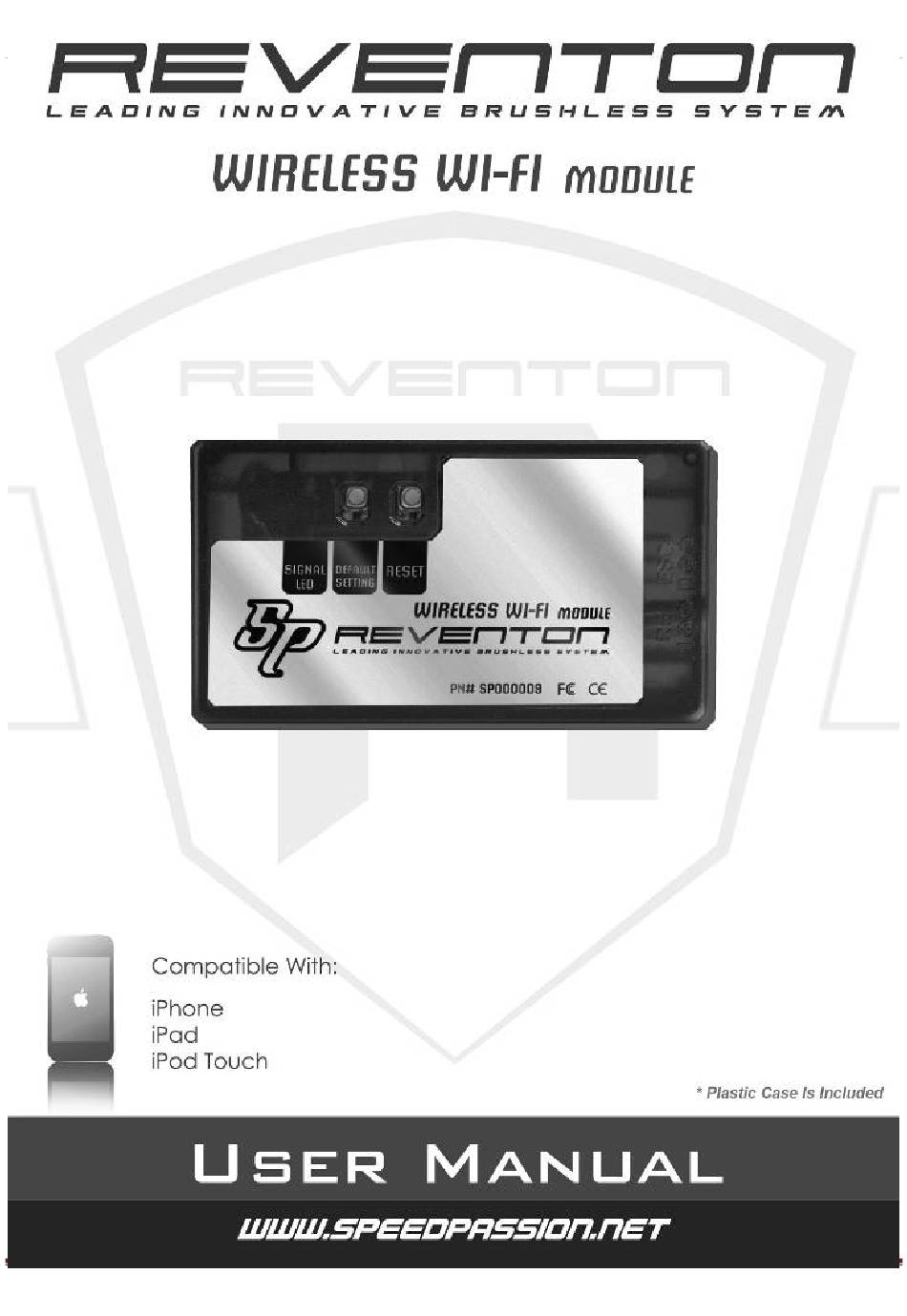

- Page 1 V1.2 Created on Aug28th2012 King‐Golden Limited ...
-
Page 2: Table Of Contents
V1.2 Created on Aug28th2012 CONTENTS 1. Connecting the Wi‐Fi Module…………………………………………..……………….…………Page1 2. Setup Wi‐Fi Module……………………………………………………………………………………..Page3 3. Change SSID and Password…………………………………………………………………………..Page4 4. Set WEP Encryption……………………………………………………………………………………...Page5 5. Reventon Screen…………………………………………………………………………………………..Page6 6. Reventon Flow Chart…………………………………………………………………………………….Page9 ... -
Page 3: Connecting The Wi-Fi Module
V1.2 Created on Aug28th2012 Wi‐Fi Module Layout With plastic box Stand alone 1. Connecting the Wi‐Fi Module: 1.1 Download the “Reventon” App in the Apple App store Compatible with iPhone, iPad, iPod touch with iOS 4.1 or above. Search “Reventon” in App Store or visit the below link: http://itunes.apple.com/hk/app/reventon/id489795844?mt=8 1.2 Connect the Wi‐Fi Module to the Receiver King‐Golden Limited Page 1 ... - Page 4 1.4 Turn on the ESC. The RED LED will flash continuously until the Wi‐Fi module is connected with iOS Device (iPhone /iPad/ iPod touch). The RED LED will turn on once connected. LED light status Wi‐Fi module not connect to any Flash per 2 second device Wi‐Fi module is connected to iOS Turn on Device (iPhone /iPad/ iPod touch) Wi‐Fi module is connected to Flash per 0.5 second “Reventon” app 1.5 Wi‐Fi module supports WEP 64 bit encrypted wireless network (Reference to point 4). 1.7 As long as iOS Device (iPhone /iPad/ iPod touch) is connected to the Wi‐Fi module, the user can change the SSID and password via the Speed Passion Reventon Application. (Reference to point 3) 1.8 If password has been lost or forgotten, keep the Wi‐Fi Module power on and disconnect between iOS Device (iPhone /iPad/ iPod touch) and Wi‐Fi module, and hold the “Default Setup” button at the Wi‐Fi Module for 3 seconds. The Wi‐Fi configuration will return to factory settings as shown below: ...
-
Page 5: Setup Wi-Fi Module
V1.2 Created on Aug28th2012 Baud rate 19200 Data bits 8 Parity bits 0 Start stop bit 1 1.9 Connection between Wi‐Fi module and iOS Device (iPhone /iPad/ iPod touch). 2. Setup Wi‐Fi module: 2.1 Select the “Settings” icon. 2.2 Select “Wi‐Fi” to go to the Wi‐Fi Networks screen. 2.3 Turn Wi‐Fi on. 2.4 Enter Wi‐Fi settings by pressing the blue button next to “Speed passion”. ... -
Page 6: Change Ssid And Password
V1.2 Created on Aug28th2012 2.5 Select static network, enter IP address “192.168.11.223”, subnet mask “255.255.255.0”. Go back to Wi‐Fi Network screen. 2.6 Finally, select “Speed passion” Wi‐Fi. The Wi‐ Fi module is now connected. 3.Change SSID and Password 3.1 Open the Reventon app and connect to the Wi‐Fi module. 3.2 Go to the “Options” page and select the “Wi‐Fi Module Setting” button. 3.3 Enter username and password and select the “OK” button to login into the website. Default username is: admin Default password is: 000000 3.4 Select the “Basic” page. 3.5 Change SSID and press the “Save” button in the “Wireless Settings” section. 3.6 The Wi‐Fi module will restart. ... -
Page 7: Set Wep Encryption
V1.2 Created on Aug28th2012 3.9 Change the password and press the “Save” button in the “Others” section. Password must be 6 characters. 3.10 Wi‐Fi module will restart. 3.11 The SSID and password has now been changed. 4.Set WEP Encryption 4.1 Open the Reventon app and connect to the Wi‐Fi module. 4.2 Go to the “Options” page and select the “Wi‐Fi Module Setting” button. 4.3 Enter username and password and select the “OK” button to login into the website. 4.4 Select the “Basic” page. 4.5 Go to the “Wireless Settings” section. 4.6 Choose Encryption “WEP64” ... -
Page 8: Reventon Screen
V1.2 Created on Aug28th2012 5.Apple Reventon screen Icon Loading page 1. Esc setting Page Information bar King‐Golden Limited Page 6 ... - Page 9 V1.2 Created on Aug28th2012 Needle style Bar style 2. Connection page 3. Option page ...
- Page 10 V1.2 Created on Aug28th2012 King‐Golden Limited Page 8 ...
-
Page 11: Reventon Flow Chart
V1.2 Created on Aug28th2012 6. Apple Reventon Flow chart • Select Connect to connect to Wi‐Fi module. • Select NO show the tutorial of setup Wi‐Fi module. Go to After Loading Loading Page Connect to wifi module If connected to the ESC, the Connect to tool bar center wifi module button (red area) image will change and will receive data from ESC Main screen Press programmable items to change ... - Page 12 V1.2 Created on Aug28th2012 Tool Bar 1. ESC 3. Option Page Setting page 4. Status Page 2. Connection Page ...
- Page 13 V1.2 Created on Aug28th2012 Choose the display style of set esc setting page. Go to team setting page Update firmware Setup Wi‐Fi module Turn On/Off ESC Connection Before close the Reventon app, must disconnect to the ESC connection. Otherwise, the ESC could not be control by the Receiver LED light status If ESC Connection ON Flash per 0.5 second If ESC Connection OFF Flash 2 times per 2 second 4. Status Page functions ...
- Page 14 Exemption Clause: Speed Passion does not have control over the installation or use of this product therefore no liability for any damages incurred in its use will be accepted. Operation of this product is at the user’s risk. The use of R/C models requires a degree of skill, If you are a beginner please consult the advice of an experienced user to prevent injury to goods or other persons.
- Page 15 V1.2 Created on Aug28th2012 The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user manual that comes with the product. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.
