Summary of Contents for Wido ICE2
-

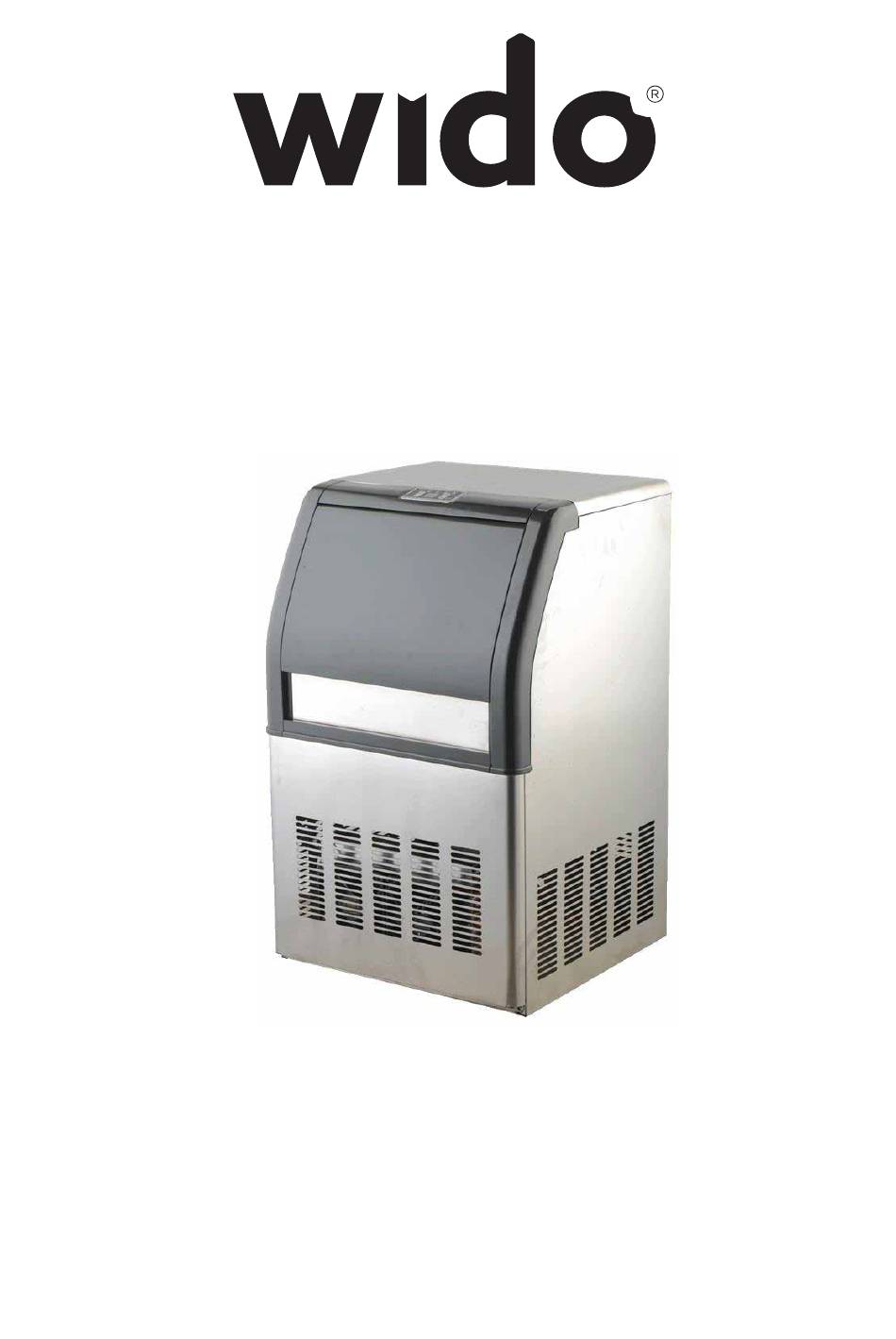

Page 1: Ice Maker
INSTRUCTION MANUAL ICE MAKER ICE2 Thanks for your choosing our ICE MAKER Please read this Instruction Manual carefully before operation Please keep it in a safe place and refer to it when necessary. - 1 -... - Page 2 Description 1. Top Lid 7. Icefull sensor 2. Control panel 8. Fan cover 3. Sliding door 9. Water out 4. Ice storage tank 10. Water inlet 5. Fan 11.Power cord 6. Evaporator Specifications Model ZB-250 Ice Making Capacity 40kgs Ice Sizes adjustable Ice Storage Capacity 10kgs...
- Page 3 Adaptor Water Follow Controller Filling Water Pipe(1m) Filling Water Pipe(40cm) Ice Scoop Filter Bracket Function Instant making ice Ice full alarming,add water water alarming Crystalline ice in square Before/First Use of Your Ice Maker 1.During transportation, the incline angle of the cabinet should not be over 45° .Do not turn the Ice maker upside down.
- Page 4 Area Mark Description ADD WATER alert ice is not enough,need to check the water supply TIMER timer is working or time is under setting. unit is under ice making process ICEFULL alert ice is full,need to be taken out Indicators CLEAN unit is under auto clean process.
- Page 5 Step 1.3 Thread the filter connectors to two sides of the connector Step 1.4 Push the filter into the filter bracket,make sure the flow direction on filter is from left to right Step 1.5 Connect filling pipes at both side of the filter,before connecting the pipe to the unit,please let the water flow over the filter for several...
- Page 6 Step 1.8 Connect water filling controller and metal parts to water faucet as right sketch Step 1.9 Put a barrel beside the unit,and then turn on the water filling controller to let the water flow over the filter for 30seconds,till the water from left side is clean Step 1.10 Take off the anti-drain plug...
- Page 7 TIMER will light up,press button + or - to adjust the timer waken up time.If the timer function is set,the indicator will light up Step 4 Press button ON/OFF,unit starts to make ice,LED screen will show ambient temperature Step 5 Adjustment of ice making time: You can change the ice size by adjust the ice making time as follow,at the last 10minutes before ice harvest,the LED screen will flash,press + or - to adjust the ice making time for next cycles.
- Page 8 Press the “STOP” button, fill with The light of ADD WATER There is no water or water, and press the “START” button is on water is not enough again to restart. Indicator light on the 1.Control panel wire Call for service display is not on line is loosen 2.Control panel is...
- Page 9 Safety Notes • Position the ice maker on flat, stable surface. • This ice maker can only be used indoors. • The installation and any repairs of the ice maker should be performed by qualified technician. • If the power cord is damaged; it must be replaced by a qualified person to avoid a hazard.
