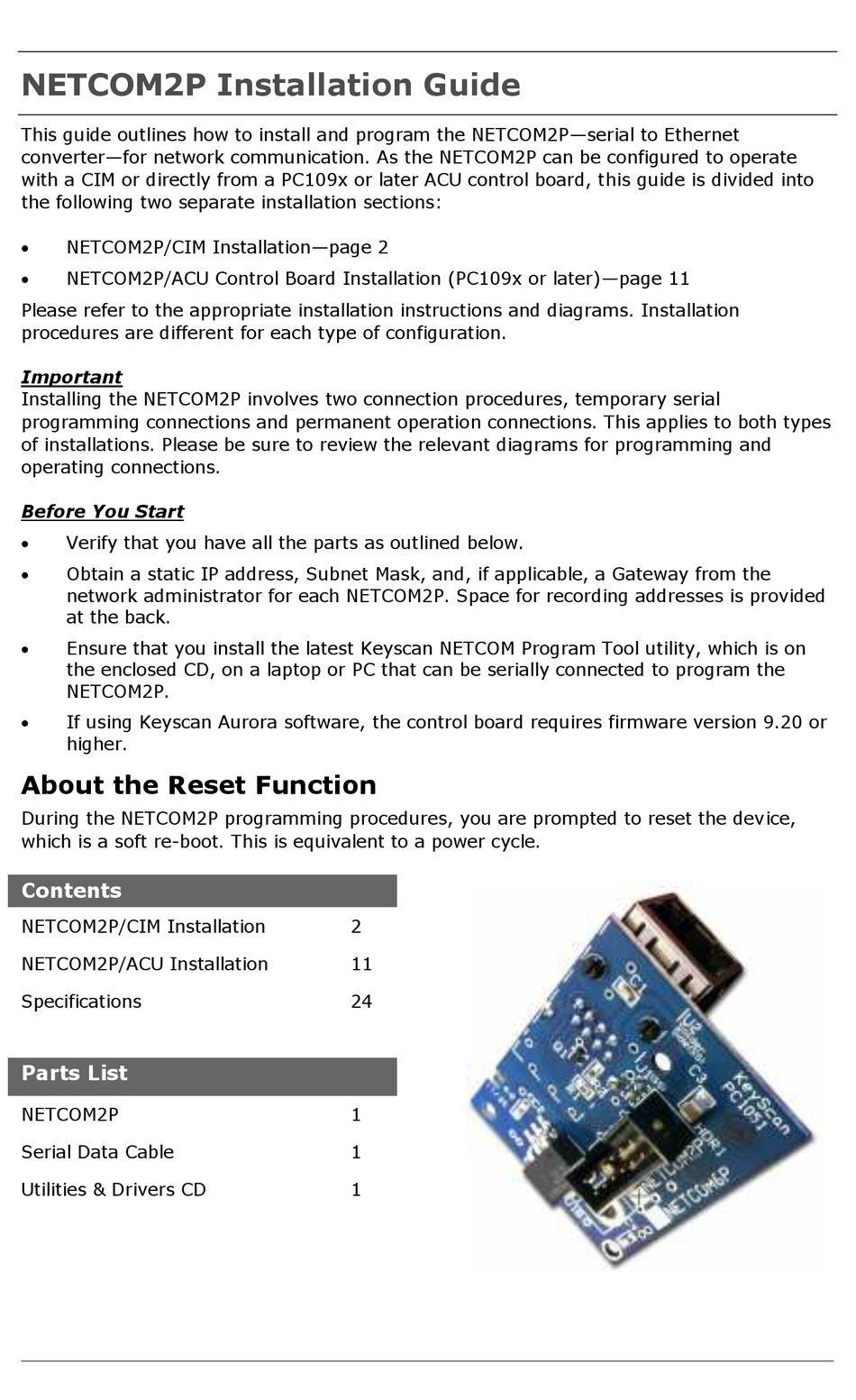

NETCOM2P Installation Guide
This guide outlines how to install and program the NETCOM2P—serial to Ethernet
converter—for network communication. As the NETCOM2P can be configured to operate
with a CIM or directly from a PC109x or later ACU control board, this guide is divided into
the following two separate installation sections:
NETCOM2P/ACU Control Board Installation (PC109x or later)—page 11
Please refer to the appropriate installation instructions and diagrams. Installation
procedures are different for each type of configuration.
Important
Installing the NETCOM2P involves two connection procedures, temporary serial
programming connections and permanent operation connections. This applies to both types
of installations. Please be sure to review the relevant diagrams for programming and
operating connections.

Before You Start

Verify that you have all the parts as outlined below.
Obtain a static IP address, Subnet Mask, and, if applicable, a Gateway from the
network administrator for each NETCOM2P. Space for recording addresses is provided
at the back.
Ensure that you install the latest Keyscan NETCOM Program Tool utility, which is on
the enclosed CD, on a laptop or PC that can be serially connected to program the
NETCOM2P.
If using Keyscan Aurora software, the control board requires firmware version 9.20 or
higher.

About the Reset Function

During the NETCOM2P programming procedures, you are prompted to reset the device,
which is a soft re-boot. This is equivalent to a power cycle.

Contents

NETCOM2P/CIM Installation
NETCOM2P/ACU Installation

Parts List

NETCOM2P
Serial Data Cable
Utilities & Drivers CD
2
11
24
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETCOM2P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Keyscan NETCOM2P

  • Page 1 NETCOM2P. Space for recording addresses is provided at the back.  Ensure that you install the latest Keyscan NETCOM Program Tool utility, which is on the enclosed CD, on a laptop or PC that can be serially connected to program the NETCOM2P.
  • Page 2 CD; otherwise you may encounter communication difficulties. You require a PC or laptop that has a direct serial connection with the NETCOM2P via the CIM terminal block to program the device. To install the Keyscan NETCOM Program Tool utility, load the Keyscan Utilities &...
  • Page 3 11. From the Select NETCOM Device Type screen, click on the Program NETCOM2 Family of Boards button. 12. From the Program NETCOM2B, NETCOM2 & NETCOM2P Boards screen, enter the IP address, the Subnet Mask and, if applicable, a Gateway. NETCOM2P Installation Guide...
  • Page 4 As an example, NETCOM = 100 Mbit/Half Duplex – Network equipment = 100Mbit/Half Duplex. 16. The Discovery Port 77FE is disabled by default. Keyscan recommends that you leave it on the default setting. This function is principally for troubleshooting communication difficulties.
  • Page 5 IP Timed Out indicates the NETCOM2P does not have network communication— verify settings and connections 27. Click on the x in the upper right corner of the Keyscan NETCOM Utility screen to close the application. 28. Depending on the type of installation do one of the following steps: ...
  • Page 6 Figure 1 to Figure 4 illustrate serial programming connections from the PC or laptop to the CIM/NETCOM2P using the enclosed data cable. If the PC or laptop does not have a serial port, use Keyscan's optional USB-SER adaptor. Figure 1 - Serial Programming Connections Powered via H2 on Control Board...
  • Page 7 Figure 2 - Serial Programming Connections via Independent 12 VDC Supply PC or laptop with Keyscan NETCOM Program Tool Utility. Serial Data Cable with loose conductors 12VDC power Current Draw : CIM 150 mA + NETCOMP 140 mA = 290 mA...
  • Page 8 1 2 1 2 Fault PC106x Current Draw : CIM 150 mA + NETCOMP 140 mA = 290 mA PC or laptop with Keyscan NETCOM Program Tool Utility. KI-00467E-04-13 Temporary connections for programming only. Keyscan Inc. A Member of the Kaba Group...
  • Page 9 Figure 4 - Optional USB-SER Serial Programming Connections via Independent 12 VDC Supply PC or laptop with Keyscan NETCOM Program Tool Utility USB cable 12VDC power Current Draw - CIM 150mA + NETCOMP 140mA = 290mA supply (+12V) CAN2 CAN2...
  • Page 10 NETCOM2P/CIM Operational Connections Figure 5 illustrates NETCOM2P operating connections with multiple CIM circuit boards. Ensure that the CIM module with the NETCOM2P is designated as CIM 0 with a jumper on Figure 5 - NETCOM2P/CIM Operational Connections Parts List IOCB (COM1)
  • Page 11 CD; otherwise you may encounter communication difficulties. You require a PC or laptop that has a direct serial connection with the NETCOM2P via the CIM terminal block to program the device. To install the Keyscan NETCOM Program Tool utility, load the Keyscan Utilities &...
  • Page 12 Steps to Program and Install a NETCOM2P/ACU Control Board …cont’d Mount the NETCOM2P into M1 in the correct orientation as shown in Figure 6 or Figure On the control board, set communication for M1 to program mode for the NETCOMP depending on the PC109x version: ...
  • Page 13 Steps to Program and Install a NETCOM2P/ACU Control Board …cont’d 12. From the Program NETCOM2B, NETCOM2 & NETCOM2P Boards screen, enter the IP address, the Subnet Mask, and a Gateway (optional). 13. From Program via IP Address or Serial Port, select the port on the PC/laptop with the serial connection to the control board’s RS-232 (COM4) terminal so the NETCOM2P...
  • Page 14 IP Timed Out indicates the NETCOM2P does not have network communication— verify settings and connections 26. Click on the x in the upper right corner of the Keyscan NETCOM Utility screen to close the application. 27. Disconnect the power from the ACU control board.
  • Page 15 Figure 6 illustrates serial programming connections from the PC or laptop to the NETCOM2P via the RS-232 (COM4) terminal block on the control board using the enclosed data cable. If the PC or laptop does not have a serial port, use Keyscan's optional USB-SER Adaptor as shown in Figure 7.
  • Page 16 Cut view with ACU RS232 wires. protective cover removed. IOCB (COM1) CPB/CB MODULE (COM4) NETCOMP plugs into M1 on control board. KI-00254E-08-13 Common AUX Inputs - D Common AUX Inputs - E Keyscan Inc. A Member of the Kaba Group...
  • Page 17 PC109x or higher control board. This configuration only supports a single control board communication loop. Multiple Building Communication on a WAN Keyscan requires a point-to-point private network where NETCOMs are used on a LAN/WAN (TCP/IP) that integrates building to building communication. Figure 8 - NETCOM2P/PC109x (or higher) Control Board Connections...
  • Page 18 These procedures should only be performed in the event that the NETCOM Program Tool utility was used to program the NETCOM2P and the device is still failing to communicate. If this condition does not apply to the NETCOM2P, use the appropriate procedures outlined in the preceding sections of this installation guide.
  • Page 19 22 = 255.192.0.0 23 = 255.128.0.0 24 = 255.0.0.0  Set DNS Server IP addr: Press the N key for no.  Change telnet config password: Press the N key for no. Continued on the next page… NETCOM2P Installation Guide...
  • Page 20 11. After completing the Server parameters, press 1 for Channel 1 setup parameters and enter the following Keyscan values. Press the Enter key after each entry. 1 Channel 1 (Keyscan Values)  Baudrate = 9600 (Must match ACU settings) ...
  • Page 21 This page is intentionally blank. NETCOM2P Installation Guide...
  • Page 22 This page is intentionally blank. Keyscan Inc. A Member of the Kaba Group...
  • Page 23 This page is intentionally blank. NETCOM2P Installation Guide...
  • Page 24: Specifications

    Specifications Input Power Requirements Powered through control board—NETCOM2P 140 mA + control board 130 mA = 270 mA Powered through CIM—NETCOM2P 140 mA + CIM 150 mA = 290 mA Network Interface RJ45 (10/100 Base-T) Ethernet LAN/ WAN (TCP/IP protocol—port 3001) Agency Approvals—Ethernet Socket...
