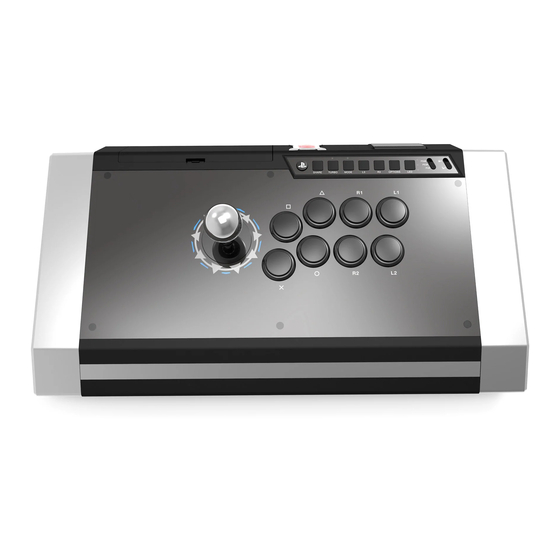

QANBA OBSIDIAN
"HIT BOX" CONVERSION KIT INSTALL GUIDE

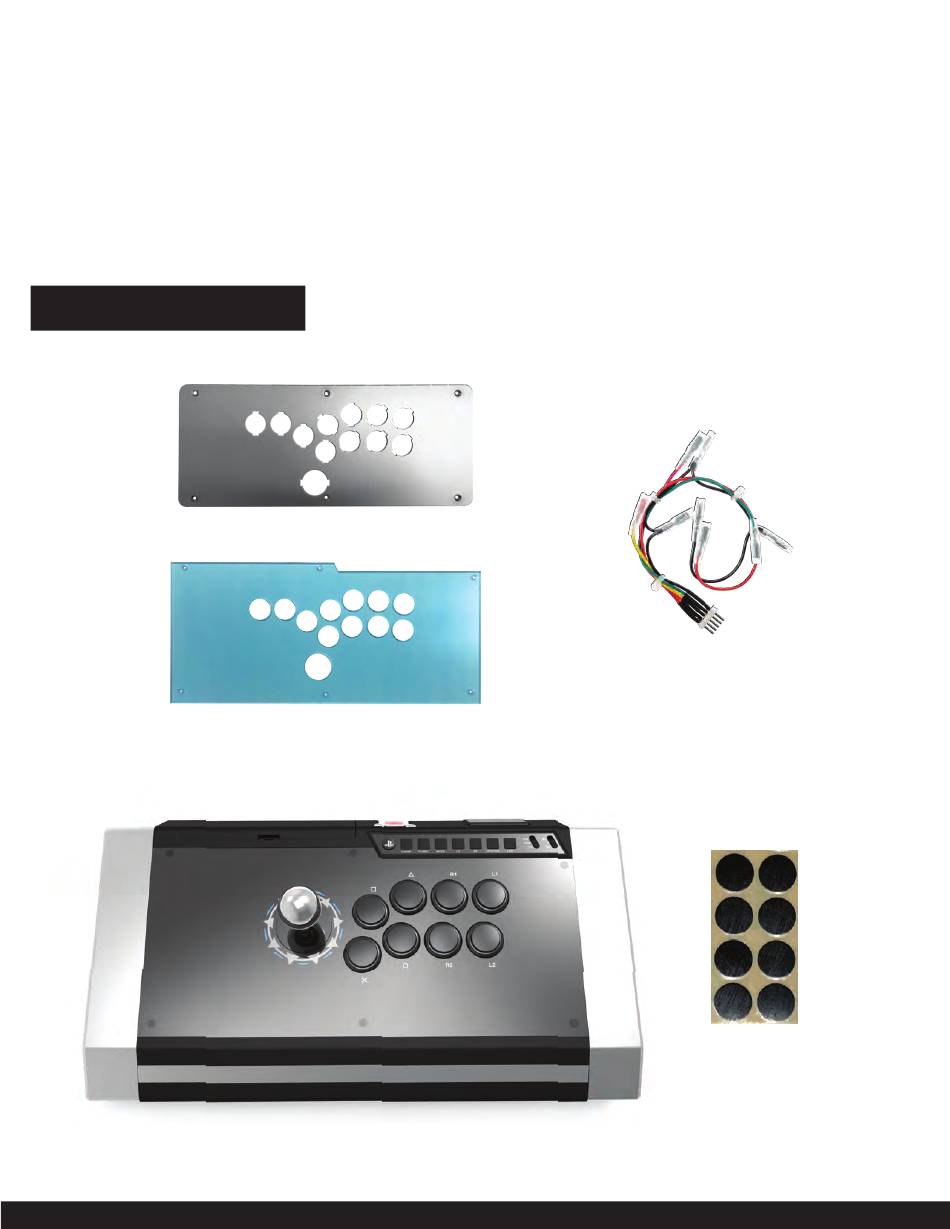

ITEM CHECKLIST
OBSIDIAN HIT BOX METAL
PANEL*
x1
5-PIN to HITBOX
CONVERSION CABLE x1
OBSIDIAN HIT BOX TOP PLEXI
TOP*
x1
*REMOVE PROTECTIVE BLUE FILM BEFORE INSTALLTION
METALLIC
SCREW COVERS
(OPTIONAL)
QANBA OBSIDIAN (SOLD SEPARATELY)
ARCADESHOCK.COM
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for ARCADE SHOCK QANBA OBSIDIAN
- Page 1 “HIT BOX” CONVERSION KIT INSTALL GUIDE ITEM CHECKLIST OBSIDIAN HIT BOX METAL PANEL* 5-PIN to HITBOX CONVERSION CABLE x1 OBSIDIAN HIT BOX TOP PLEXI TOP* *REMOVE PROTECTIVE BLUE FILM BEFORE INSTALLTION METALLIC SCREW COVERS (OPTIONAL) QANBA OBSIDIAN (SOLD SEPARATELY) ARCADESHOCK.COM...
- Page 2 SUGGESTED TOOLS SLOTTED (FLATHEAD) SCREWDRIVER ROTARY CUTTING TOOL SMALL POKING TOOL PHILIPS SCREWDRIVER (PH2) UTILITY KNIFE/CUTTER INSTALL PROCESS UNDO THE SIX (6) BOTTOM SCREWS TO OPEN THE ARCADE STICK BODY ARCADESHOCK.COM...
- Page 3 ONCE OPEN UNDO ALL WIRING AND UNINSTALL ALL EIGHT BUTTONS AND THE JOYSTICK CAREFULLY UNPLUG AND SET ASIDE THE 5-PIN JOYSTICK HARNESS FROM THE PCB USING A SMALL POKING TOOL CAREFULLY REMOVE THE METALLIC SCREW COVERS. ONCE REMOVED, CONTINUE TO UNSCREW USING A PHILIPS SCREWDRIVER THE PLEXI TOP OF THE ARCADE STICK.
- Page 4 ONCE THE BARE METAL PANEL IS EXPOSED CONTINUE TO DISASSEMBLE BY UNDOING THE SIX (6) SCREWS ON THE PANEL USING A PHILIPS SCREWDRIVER TAKE NOTE OF THE MIDDLE BOTTOM AREA. ALIGN THE OBSIDIAN HIT BOX METAL PANEL IN PLACE. ARCADESHOCK.COM...
- Page 5 ON THE 30MM BUTTON HOLE, USE THE PANEL AS A GUIDE AND MARK THE EXTENDED PLASTIC AREA WITH A SHARP TOOL OR MARKER USING A CUTTING TOOL SUCH AS A ROTARY TOOL, TRIM PLASTIC DOWN TO THE PREVIOUSLY MARKED PORTION. THIS WILL ALLOW FOR THE 30MM BUTTON (UP DIRECTION) TO FIT THROUGH THE PANEL.
- Page 6 CONTINUE TO SECURE THE HITBOX METAL PANEL WITH THE PREVIOUSLY REMOVED SIX (6) SCREWS SIMILARLY SECURE THE HITBOX TOP PLEXI ON THEIR RESPECTIVE SIX SCREW POINTS. ARCADESHOCK.COM...
- Page 7 RETRIEVE THE JOYSTICK HARNESS ON THE 5-PIN HEADER WHERE THE JOYSTICK CONNECTS, USE A POKING TOOL PRESS CAREFULLY ON THE CONNECTORS. THERE IS A TINY KNOTCH THAT WHEN PRESSED DOWN, WILL RELEASE THE WIRES FROM THE HEADER WHEN PULLED. RE-ORDER THE WIRES EXCEPT FOR BLACK.
- Page 8 INSTALL THE PUSHBUTTONS AND RE-CONNECT THE WIRES FOR THE ACTION BUTTONS YELLOW BLUE GREEN BLACK ORANGE PURPLE BROWN USE THIS COLOR GUIDE TO WIRE IT IN THE CORRECT ORDER (VIEW FROM BOTTOM/INSIDE THE ARCADE STICK AS SHOWN) PLUG THE JOYSTICK HARNES BACK INTO THE MAIN PCB.
- Page 9 AFTER WIRING IS DONE, REASSEMBLE THE BOTTOM LIDTO CLOSE-UP THE ENCLOSURE ONCE ASSEMBLY IS COMPLETE, THE OBSIDIAN HIT BOX SHOULD BE FULLY FUNCTIONAL AND READY FOR USE. ARCADESHOCK.COM...
- Page 10 METALLIC SCREW COVERS (OPTIONAL) * SET OF 8 SOLD SEPARATELY THE METALLIC SCREW COVERS ARE NOT NECESSARY FOR A STABLE CONSTRUCTION. ALTHOUGH, ADDING IT WILL PREVENT RUST ON THE SCREWS AS WELL AS A MORE REFINED AESTHETIC LOOK TO YOUR ASSEMBLY. METALLIC SCREW COVERS - TOOLS NEEDED HEATED GLUE GUN MICROFIBER...
- Page 11 METALLIC SCREW COVERS - APPLICATION MAKE SURE THE SCREW IS SECURELY INSTALLED. TAKE NOTE OF HOW RECESSED IT IS AFTER IT IS SECURED. IN THIS AREA, CAREFULLY DAB SOME HOT GLUE USING A HEATED GLUE GUN. A SMALL PORTION WILL BE ENOUGH, AND MAKE SURE NOT TO PUT TOO MUCH.
- Page 12 METALLIC SCREW COVERS - APPLICATION FOR A SUCCESSFUL APPLICATION IT SHOULD BE FLUSHED AND SMOOTH ALONGSIDE THE PANEL AS IF IT WERE STOCK. ARCADESHOCK.COM...
