Thank you for purchasing this quality boiler. For your safety and the safety of others, read all warnings and the
operator manual before installing or using the product. Properly instruct all operators. Keep training records. For
future reference, record serial number here:
Grindmaster-Cecilware
4003 Collins Lane, Louisville, KY 40245 USA
Phone: 502.425.4776 Toll Free: 800.695.4500
Fax: 502.425.4664
Web: gmcw.com Email: info@gmcw.com
©2016 Grindmaster-Cecilware
Printed in USA

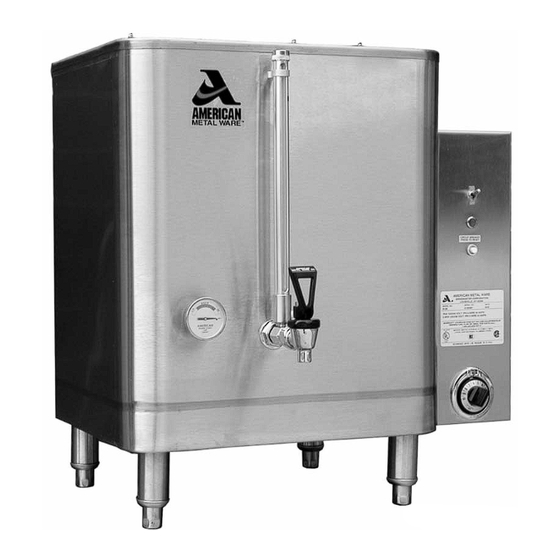

Hot Water Boilers
810(E), 815(E), 830(E), 850(E)
Table of Contents
Operator Manual
Model 810(E)
Adjustments ............................6
Maintenance ...........................6
Troubleshooting Guide...........9
Parts List.................................12
Wiring Diagram.....................13
Grindmaster-Cecilware
industry's BEST warranty. Visit gmcw.com
for warranty terms and conditions.
provides
the
0516 Form #AM-324-04
Part # 390-00072
Advertisement
Table of Contents
Summary of Contents for American Metal Ware 810
-
Page 1: Table Of Contents
Operator Manual Hot Water Boilers 810(E), 815(E), 830(E), 850(E) Model 810(E) Table of Contents Safety Information....2 Adjustments ......6 Rough-In Drawing....3 Maintenance ......6 General Description ....4 Troubleshooting Guide...9 Installation.......4 Parts List.........12 Priming ........5 Wiring Diagram.....13 Cleaning........5 Thank you for purchasing this quality boiler. For your safety and the safety of others, read all warnings and the operator manual before installing or using the product. -
Page 2: Safety Information
This equipment must be installed in compliance with applicable Federal, State, and/or Local plumbing codes having jurisdiction. This product requires an approved back flow prevention water device, such as a double check valve, to be installed between the machine and the water supply. GB Series American Metal Ware Cecilware Hot Water Boilers ®... -
Page 3: Rough-In Drawing
LBS/HR STEAM DRAW OFF 50°F INLET WATER 140°F INLET WATER CONSUMPTION 815E,S 5.5KW 208V 1PH 7KW 240V 1PH 830E,S 12KW 850E,S 15KW Standard operating steam pressure (models with suffix 'S') is 10 - 25 PSIG Hot Water Boilers American Metal Ware... -
Page 4: General Description
3. Install legs by tilting boiler on its side and screwing end. See drawing, as required. legs into leg supports until hand tight. American Metal Ware Hot Water Boilers... -
Page 5: Priming
6. If the unit is not to be used again immediately after sanitizing - do not rinse with water. If the unit is to be used immediately after sanitizing - rinse with water before refilling the unit for further use. Hot Water Boilers American Metal Ware... -
Page 6: Adjustments
Hold shaft so it does not turn while Relay must click on and off. If it sticks, replace. adjusting screw. 4. Add cold water and check that heat comes back on (Pilot light glows), and that thermostat cycles at American Metal Ware Hot Water Boilers... - Page 7 RED WIRE GREEN WIRE GREEN WIRE HIGH HIGH RED WIRE TOP MOUNTED PROBES SIDE MOUNTED PROBES 3. METAL ENCLOSURE (TANK BODY) - provides a common (ground) connection for the electrode circuit. Hot Water Boilers American Metal Ware...
- Page 8 2.) Clean the electrodes. Lime (mineral scale) build-up can interfere with the operation of any liquid level control system. 3.) Check the common (ground) connection. A little looseness or dirt can cause erratic operation. American Metal Ware Hot Water Boilers...
-
Page 9: Troubleshooting Guide
• Visual. • Connect “BLACK” wire lead to “HEAT” terminal. “FILL” terminal. • Dual Level printed • Jumper from “HI” to • Replace Dual Level Control. circuit board faulty. “C” does not stop fill. Hot Water Boilers American Metal Ware... - Page 10 “FILL.” Also check frayed or broken. neutral (white) wire at valve. • Dual Level Control faulty. • Tank does not fill with • Replace Dual Level Control. electrode wires disconnected from “XL” and “H” terminals. American Metal Ware Hot Water Boilers...
- Page 11 Prior authorization must be obtained from Grindmaster-Cecilware for all warranty claims. Grindmaster-Cecilware provides the industry’s BEST warranty. Visit our website at gmcw.com for warranty terms and conditions. Hot Water Boilers American Metal Ware...
-
Page 12: Parts List
Steam Heat Only A506009 Steam Solenoid Valve - 10-40 PSI A506014 Repair Kit for Steam Solenoid A506016 Replacement Coil Only for Steam Solenoid A532027A Steam Strainer IMPORTANT: Give Model Number and Serial Number when ordering American Metal Ware Hot Water Boilers... -
Page 13: Wiring Diagram
Wiring Diagram Hot Water Boilers American Metal Ware... - Page 14 Wiring Diagram (continued) American Metal Ware Hot Water Boilers...
- Page 15 Hot Water Boilers American Metal Ware...
- Page 16 Grindmaster-Cecilware 4003 Collins Lane, Louisville, KY 40245 USA Phone: 502.425.4776 Toll Free: 800.695.4500 Fax: 502.425.4664 Web: gmcw.com Email: info@gmcw.com 0516 Form #AM-324-04 ©2016 Grindmaster-Cecilware Part # 390-00072 Printed in USA...
