Fowler Xtra-Value Series Operating Instructions

Operating Instructions
Please read through this owners manual carefully before using your new tool.
Use your tool properly and only for its intended use.

1. Functional Elements

Frame
Frame
Insulator

2. LCD Display

3. Operation

• Keys are pressed two ways to execute functions:
1. Press and immediately release.
2. Press and hold for at least two seconds
3.1 On/Off— Zero Key
• Press and release: Power on/off
• Press and hold: Zero set for absolute measuring ("Set" will appear)
3.2 ABS/INC — Unit Key
• Press and release: Absolute and INC measuring mode conversion
• Press and hold: Inch/Metric conversion ("in" will appear for inch readings, "mm" will appear for metric readings.)

3.3 Data Output

In measuring mode, this is the data output key.
• Press and release: The micrometer will output the displayed data.
• Press and hold: The micrometer will output the displayed data continually until the button is pressed again.
Fowler Precision
66 Rowe Street • Newton, Massachusetts 02466
1-800-788-2353 • (617) 332-7004 • (617) 332-4137 fax
Anvil Spindle Locking Device
Function buttons
in:
Inch measuring mode
mm:
Metric measuring mode
INC:
Relative measuring mode
ABS:
No symbol present

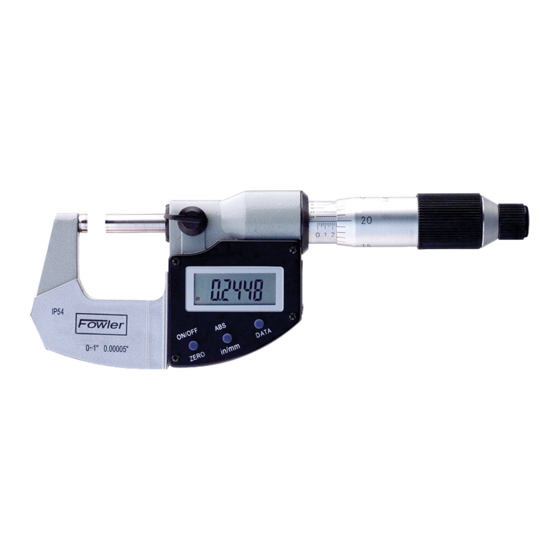

54-815 Xtra-Value Series
Digi-Micrometer
Thimble
SPC output
LCD display
