Model: FPM1949LT3W
• Be sure to read this manual thoroughly before installing.
• Sufficient expertise is required for installing this projector wall mount.
• Do not use the projector wall mount for other purposes than what it is designed for.
• Keep this manual available for future reference.
Advertisement
Related Manuals for FAVI FPM1949LT3W
Summary of Contents for FAVI FPM1949LT3W

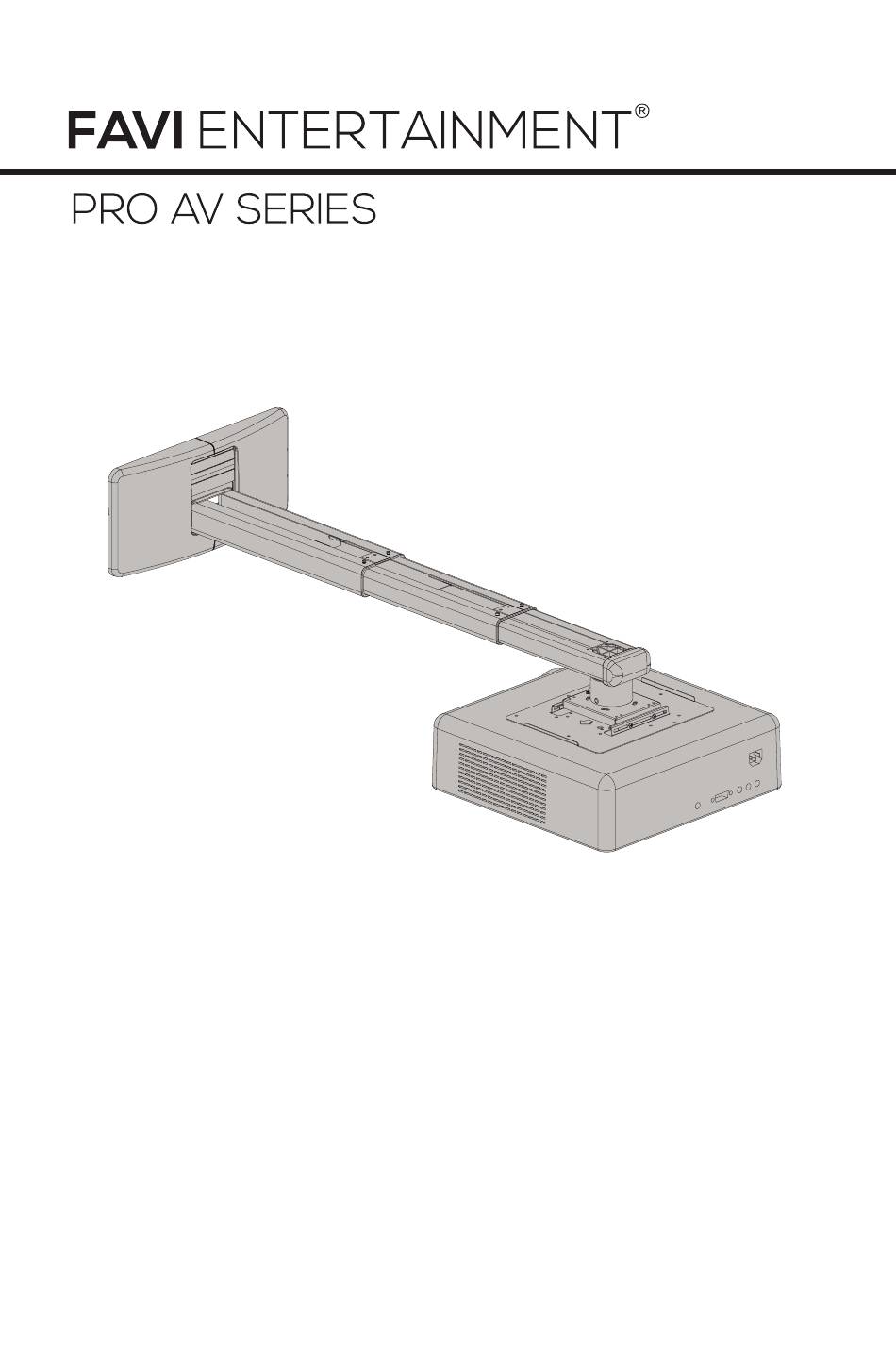

- Page 1 Model: FPM1949LT3W • Be sure to read this manual thoroughly before installing. • Sufficient expertise is required for installing this projector wall mount. • Do not use the projector wall mount for other purposes than what it is designed for.
- Page 2 IMPORTANT SAFTY NOTES 1. Be sure to read this manual thoroughly before installing projector wall mount. 2. Only qualified technicians (two or more) should install or dismount the projector from the wall mount. 3. For safety reasons, check the strength of the wall before installation. If wall is not strong enough to hold wall mount and projector weight, do not install until wall is properly reinforced for installation.
-
Page 3: Installing Wall Mount
INSTALLING WALL MOUNT 2 in Mounting on concrete ceiling: Ensure wall is a minimum of 4-inches in thickness. Use anchor bolts (B) and screws (M6 x 55, A) for installation. Use anchor bolts. 2 in Mounting on dry-ceiling: Ensure wall is a minimum of 4.5-inches in thickness. Use screws (M6 x 55) for installation. - Page 4 INSTALLING WALL MOUNT (Cont.) Cables can be feed through wall plate in the three methods shown to the left. Once cables are secure, fasten the screws. Cables Cables METHOD 3 Cables METHOD 1 METHOD 2 ATTACH PROJECTOR TO MOUNT Move the projector mounting plate left or right to decide the projector position. Adjust left or right sliding distance Screen adjustment direction...
- Page 5 ADJUST SUPPORT ARM Adjustment direction Check the scale to see the distance from wall to mounting plate. NOTE: When the 22-in length of the inside arm does not meet your demand, you should loosen the screws from the outside arm to adjust the middle arm. ADJUST PROJECTOR HEIGHT Adjustment direction ADJUST VERTICAL TILT KNOB...
- Page 6 The plate covers must be used in the specific order as shown above. Once plate covers are in place, put the wall cover on. PRODUCT INFORMATION Model: FPM1949LT3W Net Weight: 11-lb Load Capacity: 33-lb Adjustment Range: 12.8 to 29-in...
