Summary of Contents for Tek-Cor 1100A

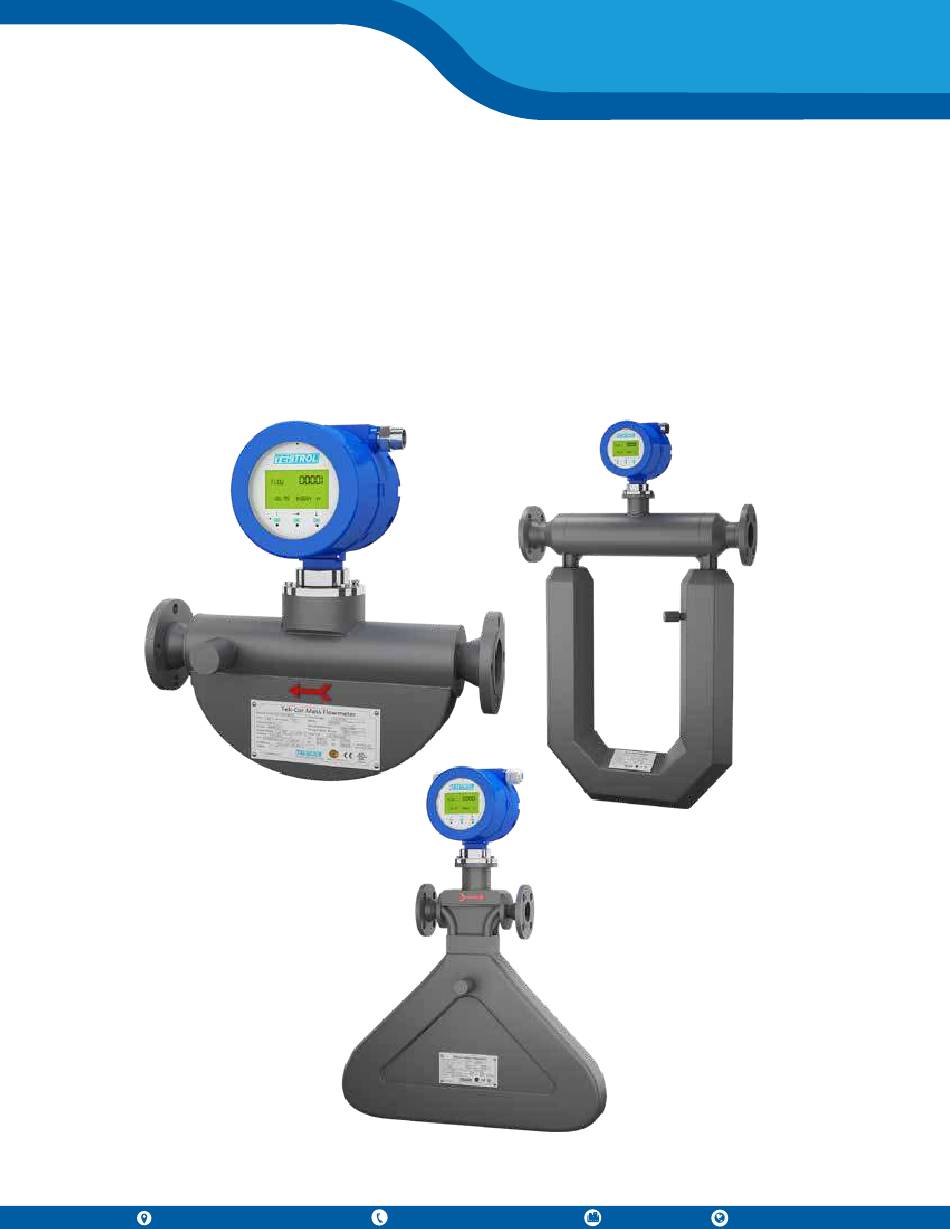

- Page 1 Quick Start Guide Tek-Cor 1100A +1 847 857 6076 | +1 847 655 7428 796 Tek Drive, Crystal Lake, IL 60014 USA www.tek-trol.com +1 847 655 6147...
-
Page 2: Before You Begin
Installation of the transmitter in an explosive environment must be undertaken in accordance with the appropriate local, national, and international standards, codes, and practices. Review the approvals section of the Tek-Cor 1100A reference manual for any restrictions associated with a safe installation. 2. Unpack Tek-Cor 1100A Coriolis Mass Flowmeter x 1 3. -
Page 3: Key Functions
Confirm and Save the or No then Back to Function Function Menu Operation point of Photoelectric Key is located right behind the glass panel. It is better to operate the Photoelectric Key in a vertical direction, not a horizontal direction. Tek-Cor 1100A... -
Page 4: Sensor Mounting
Quick Start Guide Quick Start Guide 6. Sensor Mounting Micro-Bend Sensor Mounting Position B Position A Vertical Mounting Recommended Horizontal Installation U-Shaped Sensor Mounting Position B Position A Vertical Mounting Recommended Horizontal Installation If the medium contains solid particles, mount the meter as shown in position “A”, and in all other cases mount the meter as shown in position “B”. -
Page 5: Remote Mount
Technology Solutions Remote Mount When Tek-Cor 1100A is mounted separately, the sensor and the transmitter should be connected through special 9-core cable. Shielded all wires Brown Brown Orange Orange Yellow Yellow Green Green Blue Blue Gray Gray White White Black... - Page 6 Quick Start Guide Quick Start Guide 8. Power Supply and Signal Output Wiring The transmitter can be connected to 85 to 220 VAC or 18 to 28 VDC power supply. Power Power Power Power Wiring Wiring Wiring Wiring 3 2 1 3 2 1 ±20 ±20...
-
Page 7: Installation
If solid particles expected, then it should not be installed at the lowest point (B). The meters must not be mounted in a drop line near the open end (C), as this may cause the meter to run empty. Tek-Cor 1100A... -
Page 8: Flow Direction
11. Flow Direction There is a flow arrow which indicates the flow direction in front of the sensor; install the Tek-Cor 1100A according- ly; failure to do may result in the transmitter not displaying the mass flow correctly. If the process medium is liquid or slurry, the flow direction is down-up;... -
Page 9: Zero Calibration
LED lights indicates the working condition of the flowmeter, while the LCD displays can show the self-diagnos- tic alarm information of the transmitter, which is useful for detecting the malfunctions. LED Indication LED Condition Working Condition Green Light Normal Operation Red Light Error Note: For additional information refer to the detailed manual. Tek-Cor 1100A... - Page 10 Quick Start Guide Quick Start Guide 14. Menu Tree Password? Flow Config Zero Calibration Low Flow Cut off Reset Totalizer Mass x.xxx t 000000 Press E to enter x.xxx xxx.x kg/h Press E to enter Flow x.xxx t/h Volm x.xxx m3 Output Config Pulse Weight Pulse Output...
- Page 11 YN En kg c 1. 16 No X Correct Value Pressure Comp Coef Other x.xxx g/mLL 9600, 8, N, 1 t 2. 20 x.xxxx Menu Language Mutipoint Correct Restore Para Correction Point No X Time Value Eng. Press E to enter xxx.x Tek-Cor 1100A...
- Page 12 Quick Start Guide Technology Solutions 796 Tek Drive Crystal Lake, IL 60014 Tel : +1 847 857 6076, +1 847 655 7428 Fax : +1 847 655 6147 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Cor 1100A...
