Page 3
Steve’s kindness with his time, innovative ideas, and never ending quest for improvement influence our work to this day. The Structure 344 is meant to inspire. Please use this case to build a synthesizer pushes your music forward. Enjoy, Richard Nicol...
Page 4
Structure 344 and any attached modules. • The Structure 344 is an electronic device. Exposure to water will cause the Structure 344 circuitry to short circuit and may cause permanent damage to the Structure 344 and any attached modules.
8. Utility Bridge Mix/Mult…………………………………………………..20 9. Utility Bridge Voltage Controlled Mixer Bus……………………………..22 10. Utility Bridge Bus Outputs……………………..…………………………26 11. Utility Bridge Signal Attenuators…………………………...……………28 12. Installing and Removing Eurorack Modules…..……………...………..30 13. Structure 344 Power Supply…………………………………..………..32 14. Service and Other Information ………………………………...………..34 15. Warranty……………………………………………………………..…….35...

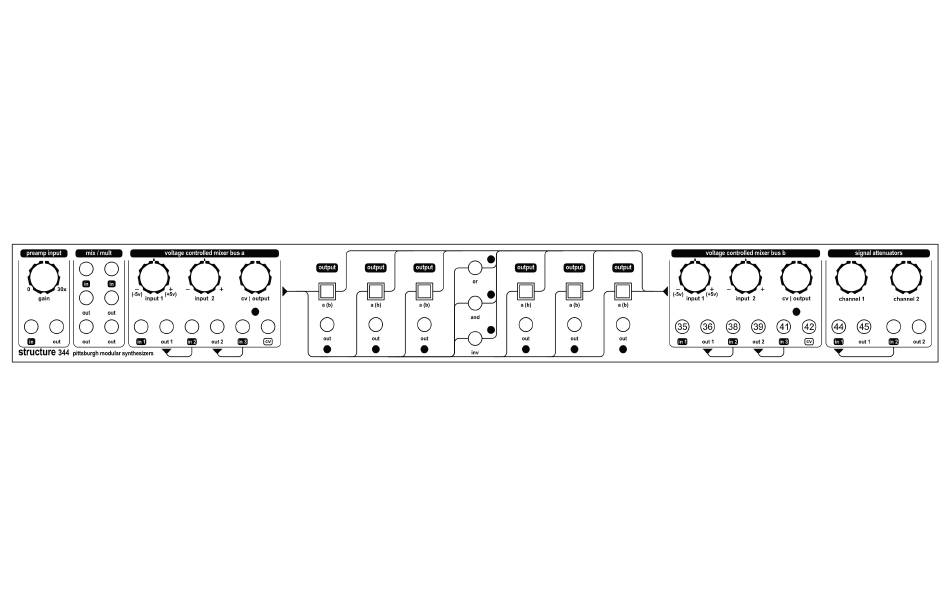

1. Structure 344 Utility Bridge User Interface Map Preamp Bus Mixer 25. Or Output Jack - Analog or mix of Bus A and Bus B. 1. Preamp Gain Knob - Set the preamp drive gain. 26. And Output Jack - Mix of Bus A and Bus B.
2. Structure 344 Utility Bridge Sections, Connections and Signals The Structure 344 Utility Bridge is meant to integrate with attached eurorack format modules to create a patchable, analog synthesizer. The Utility Bridge combines the functionality of 6 individual synthesizer sections.
3. Structure 344 Utility Bridge Interface Conventions The Structure 344 Utility Bridge uses several simple labeling conventions to make the user interface and signal flow easy to understand. The labeling is meant as a starting point and not a definitive rule. Experimentation is key.
4. Structure 344 Utility Bridge Internal Signal Routing The Structure 344 Utility Bus utilizes flexible internal connections to simplify patching and extend the functionality of the Utility Bus. To modify the internal routing or to create something completely new, all of the internal routing can be bypassed using the jacks.
5. Structure 344 Utility Bridge Internal Signal Routing Map a. Voltage Controlled Mixer Bus A Input 1 Output Input 1 signal (11) sent from the Input 1 output (12) to the Voltage Controlled Mixer Bus A outputs. b. Voltage Controlled Mixer Bus A Input 2 Output Input 2 signal (14) sent from the Input 1 output (15) to the Voltage Controlled Mixer Bus A outputs.
6. Individual Utility Bridge Sections The Utility Bridge is comprised of 6 individual function sections. The following pages will explain the features of these sections.
7. Utility Bridge Preamp The Gain Knob (1) controls the preamp for processing external or internal signals. The Gain Knob (1) offers up to 30x gain with integrated soft clipping overdrive. Perfect for processing external signals or overdriving internal waveforms. Preamp Patching Notes •...
8. Utility Bridge Mix/Mult The Mix/Mult is an active audio and CV interchange simultaneously splitting and mixing the incoming signals. This section can be used as a two channel mixer, buffered signal splitter, or both. The Inputs (4,5) create a two channel unity gain mixer.
9. Utility Bridge Voltage Controlled Mixer Bus Voltage Controlled Mixer Bus A and Voltage Controlled Mixer Bus B are functionally identical and will both be covered by the following information. For clarity, references will be made to Bus A but the information applies equally to the corresponding Bus B.
Page 24
9. Utility Bridge Voltage Controlled Mixer Bus (continued) VCA Features The output of the three channel mixer is sent internally to the embedded VCA. The output level of the VCA is controlled in one of two ways. With nothing patched into CV Input If nothing is patched into the CV input (18) the VCA level is controlled manually using the CV|Output Knob (16).
10. Utility Bridge Bus Outputs The Bus Outputs section offers 6 individually buffered outputs assignable to either Bus A or Bus B. To use Bus A, the Output Button should be unpressed and the Button LED should be off. To enable Bus B, the Output Button should be depressed and the Button LED should be lit.
11. Utility Bridge Signal Attenuators The Signal Attenuators section offers a few different functions. The section can function as two independent signal attenuators by patching signals to Input 1 (44) and Input 2 (47). The section can also be used as a buffered signal splitter with individual attenuation controls.
WARNING! ALWAYS FILL UNUSED PANEL SPACE WITH BLANK PANELS. Stray patch cables touching the power headers can cause damage to the case and modules. Always cover empty rack spaces with blank panels. Do not attempt to repair the Structure 344. Please contact Pittsburgh Modular regarding malfunctions of any kind.
+12v power rail reducing the amount of +12v power available to modules. Each of the two Busboards includes a 5v regulator rated to 1.5A allowing the Structure 344 to offer a total of 3A of +5v power split...
14. Service and Other Information Please contact us for service or other information related to the Structure 344 or any other Pittsburgh Modular product. www.pittsburghmodular.com/contact...
Synthesizers LLC. We will repair it (or at our option, replace it) at no charge, and pay the cost of shipping it back to you. This warranty is void if in our opinion the Structure 344 has been damaged by accident, mishandled, altered, improperly serviced, or repaired by the customer where such treatment has affected its performance or reliability.
