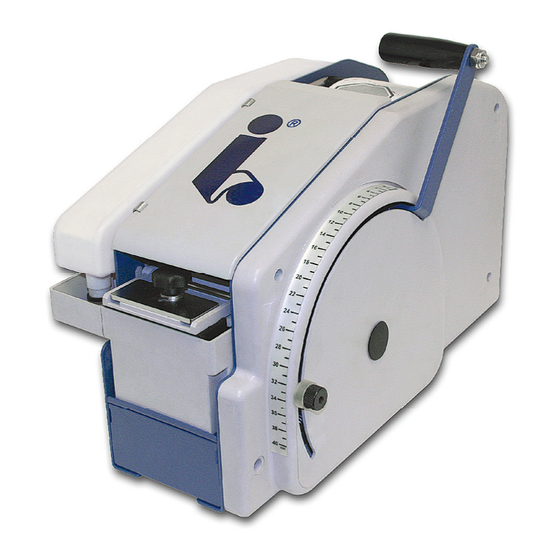

TWA 1000-M
Manual Water Activated Taper
OPERATION MANUAL & PARTS LISTS
This Manual Covers Dispensers With Serial Numbers Starting With TM9701
For All Other Serial Numbers, Contact Customer @800-474-8273
TWA 1000-M (U9701)
UDM 9701
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWA 1000-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Interpack TWA 1000-M

  • Page 1 TWA 1000-M Manual Water Activated Taper OPERATION MANUAL & PARTS LISTS This Manual Covers Dispensers With Serial Numbers Starting With TM9701 For All Other Serial Numbers, Contact Customer @800-474-8273 TWA 1000-M (U9701) UDM 9701...

  • Page 2: Table Of Contents

    Preventive Maintenance------------------------------------ 23 Cleaning The Tape Path----------------------------------------- 23 Cleaning The Brush Pot Assembly-------------------------- 24 Cleaning The Cutter Blade-------------------------------------- 25 Cutter Blade Maintenance-------------------------------------- 26 Cutter Blade Replacement-------------------------------------- 27 Section 11 Appendix A-Illustrations And Parts Lists------------ 28 TWA 1000-M (U9701) UDM 9701...

  • Page 3: Technical

    SSISTANCE Technical Support This is the Interpack Model TWA 1000-M Manual Water Activated Taper you ordered. It has been set up and tested in our factory with Intertape manufactured Water Activated tapes. If any problems occur when setting up or operating this equipment, please contact the authorized distributor from where you purchased this item.

  • Page 4: Section 3 Warranty

    Intertape sells its Interpack Tape Heads, Case Tapers and Case Erectors with the following warranties: 1. The HSD 2000 Tape Heads' knife blades, springs and wipe down rollers will be free from all defects for a period of ninety (90) days.

  • Page 5: Dispenser

    APER Figure 4-1 The Interpack Family of Water Activated Tapers are designed to dispense pre-determined lengths of pre-moistened Intertape or Central Brand water activated carton sealing tape. This tape is then manually applied to the top and bottom center seam of regular slotted corrugated cartons.

  • Page 6: Safety

    AFETY SSUES There is a safety label used on all Interpack Water Activated Tapers. This label is to warn operators and service personnel of the sharp cutting edge of the blade. Please read the label and the following safety precautions before using the Water Activated Taper.
  • Page 7 More detailed information is provided in the “Set Up Procedures” portion of this manual. Turn electrical supplies off before servicing the water activated taper. Figure 5-2 TWA 1000-M (U9701) UDM 9701...

  • Page 8: Section 6 Specifications

    PECIFICATIONS Water Activated Taper Dimensions Figure 6-1 TWA 1000-M (U9701) UDM 9701...

  • Page 9: Components

    PECIFICATIONS Water Activated Taper Components Feed Roller (Shown In Short Length Roll Position Tape Roll Carriage Water Bottle Hinged Cover Tape Dispensing Handle Tape Length Scale Tape Length Adjustment Knob Brush Pot Assembly Figure 6-2 TWA 1000-M (U9701) UDM 9701...

  • Page 10: Water Activated Taper

    PECIFICATIONS Water Activated Taper Components Feed Roller (shown in short roll position) Water Activated Tape Roll Pinch Roller Self Centering Upper Side Guide Tape Guide Plate Brush Pot Assembly Figure 6-3 TWA 1000-M (U9701) UDM 9701...
  • Page 11 PECIFICATIONS Water Activated Taper Components Pressure Plate Pressure Plate Lock Nut Water Level Moistening Brush Adjustment Screw Brush Pot Assembly Figure 6-4 TWA 1000-M (U9701) UDM 9701...

  • Page 12: Specifications

    Use in a dry, relatively clean environment at 40º to 105º F (5º to 40º C) with clean, dry cartons. Note: The TWA 1000-M should never be washed down or subjected to conditions causing condensation on components. Do not subject the TWA 1000-M to ANY harsh detergent or solvent wash down.

  • Page 13: Set Up

    ROCEDURES Receiving and Handling All contents must be verified upon reception. The following items are included with each tape head. TWA 1000-M Manual Taper U9701 Operators Manual UDM 9701 Note: After unpacking the taper, look for any damage that may have occurred during shipping.

  • Page 14: Tape Loading

    3. Adjust the width of the side guides using Tape Length Scale the adjustment knob so that they are about 1/8” away from the edge of the roll and do not restrict the unwinding of the Tape Roll Carriage tape. Figure 7-4 TWA 1000-M (U9701) UDM 9701...

  • Page 15: Tape Threading

    5. Close the top cover Figure 7-5 Feed Roller (shown in small roll position) Tape Roll Carriage Pinch Roller Upper Guide Plate Figure 7-6 TWA 1000-M (U9701) UDM 9701...

  • Page 16: Filling The Water

    1. Lift off the water bottle from the brush pot stem as shown in Figure 7-8 2. Raise the front edge of the brush pot as you slide it forward to remove it from the cavity Lift Straight Figure 7-8 TWA 1000-M (U9701) UDM 9701...

  • Page 17: Removing The Moistening

    Slide the pressure plate from the left side of Figure 7-9 the brush pot Pull the brush straight out from the brush Moistening Notice the brush angle. When replacing Brush the brush, insert at the same angle. Figure 7-10 TWA 1000-M (U9701) UDM 9701...

  • Page 18: Adjusting The Brush Pot Water

    1. Loosen the locking nut 2. Slide the weight forward to increase brush weight 3. Slide the weight to the rear to decrease the brush weight Figure 7-12 TWA 1000-M (U9701) UDM 9701...

  • Page 19: Operating

    PERATING NSTRUCTIONS The TWA 1000-M should now be set up with a tape roll, properly threaded and water in the water bottle. Operating the TWA 1000-M taper is a simple task. A quick pull of the handle will dispense fully moistened tape ready for application to a corrugated case.

  • Page 20: Section 8 Troubleshooting

    ROUBLESHOOTING The TWA 1000-M Water Activated Table Top Dispensers are fabricated with high quality components that provide trouble-free operation for a long period of time. However, should a problem occur, we recommend that you consult the following table. If the problem you encounter is not discussed in this table, call Interpack Technical Support.
  • Page 21 ROUBLESHOOTING ONTINUED Trouble Possible Causes Solutions Tape is not evenly Dirty moistening brush Clean moistening brush (see moistened preventive maintenance) Dirty brush pot Clean brush pot (see preventive maintenance) TWA 1000-M (U9701) UDM 9701...

  • Page 22: Recommended Spare Parts

    We recommend that you stock the following spare parts. These parts are contained in the spare parts listing indicated below. The components of the spare parts kits are also referenced should individual components need to be ordered. TWA 1000-M Recommended Spare Parts Listing UANTITY UMBER...

  • Page 23: Preventive

    REVENTIVE AINTENANCE The TWA 1000-M has been designed and manufactured with the finest components to provide long, trouble free performance. General preventive maintenance will improve performance and prolong the life of the water activated taper Please review the illustration and chart below for information regarding tape head maintenance Cleaning The Tape Path 1.

  • Page 24: Assembly

    (See Page 16) Remove pressure plate assembly Remove moistening brush Figure 10-2 Wash moistening brush, pressure plate and brush pot in warm water and mild detergent Reassemble and re-install in machine Moistening Brush Figure 10-3 TWA 1000-M (U9701) UDM 9701...

  • Page 25: Blade

    6. Clean the striker plate using warm water and a mild detergent 7. Replace the Upper guide plate, brush pot assembly and water bottle Striker Plate Back Side Of Cutter Blade Figure 10-5 TWA 1000-M (U9701) UDM 9701...

  • Page 26: Cutter Blade

    8. Observe the cutter blade lifting spring. When the handle is pulled, the spring should raise the cutter blade. 9. Replace spring if necessary Replace side cover, pull handle, upper guide plate, brush pot assembly and water bottle Figure 10-6 TWA 1000-M (U9701) UDM 9701...

  • Page 27: Replacement

    2.5mm hex key. 7. Remove the striker plate Figure 10-8 8. Replace the cutter blade and striker plate 9. Replace the brush pot assembly, water Cutter Blade bottle and upper guide plate Striker Plate Figure 10-9 TWA 1000-M (U9701) UDM 9701...

  • Page 28: Lists

    A –I & P PPENDIX LLUSTRATIONS ARTS ISTS This page is blank TWA 1000-M (U9701) UDM 9701...
  • Page 29 WAT0001...
  • Page 30 ITEM NO. PART NUMBER DESCRIPTION default/QTY. WPT0058 WT Bottom Plate Front WAT0001 UF7009 SS BHCS M4-0.7 x 8 WPT0063 WT Upper Guide Plate WPT0067 WT Brush Pot Locator UF7011 SS BHCS M5-0.8 X 12MM WST0002 WT Frame Left Side SA UF7008 SS BHCS M4-07 X 6MM WPT0042...
  • Page 31 WST0001...
  • Page 32 WST0001 Default/ ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0001 WT Frame Right Side WPT0002 Flange Bearing 8mm WPT0004 OilliteFlange Bearing 10mm WPT0003 Oillite Bearing 16mm WPT0005 WT Foot WPT0006 WT Bumper WPT0007 WT Spacer Bar WPT0009 WT Roller Shaft WPT0010 WT Double Gear Shaft UF3147 SS SHCS M5 X 0.8 X 10MM...
  • Page 33 WST0002...
  • Page 34 WST0002 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0012 WT Frame Left Side WPT0002 Flange Bearing 8mm WPT0003 Oillite Bearing 16mm WPT0004 OilliteFlange Bearing 10mm WPT0005 WT Foot UF6340 SS FW 5 mm UF7003 SS SHCS M5 - 0.8 x 12...
  • Page 35 WST0003...
  • Page 36 WST0003 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0013 WT Bottle WPT0014 WT Duck Bill Valve...
  • Page 37 WST0004...
  • Page 38 WST0004 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0015 WT Double Threaded Screw WPT0016 WT Self Centering Right Side Guide WPT0017 WT Self Centering Left Side Guide...
  • Page 39 WST0005...
  • Page 40 WST0005 ITEM NO. PART NUMBER DESCRIPTION WPT0018 WT Arm WPT0019 WT Handle UF7014 SS M10-1.5 N Nylon Lock Nut UF7015 SS FW M10...
  • Page 41 WST0006...
  • Page 42 WST0006 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0020 Gear 80t, 120mm dia WPT0021 Bearing Housing WPT0022 One way bearing WPT0023 WT Spring UF7005 SS SHCS M4-0.7 X 16MM UF7004 SS SHCS M4-0.7 X 30MM UF7006 SS HEX NUT M4-07...
  • Page 43 WST0007...
  • Page 44 WST0007 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0024 Wt Water Pot WPT0027 Wt Pivot Shaft WPT0026 Wt Tape Guide WPT0028 Wt Pressure Plate WPT0029 Wt Weight WPT0025 Wt Moistening Brush UF7016 SS Thrd Rod M6-1 X 20mm Lg UF6341 SS FW 6 mm UF3391 SS M6 LOCKNUT UF7020...
  • Page 45 WST0008...
  • Page 46 WST0008 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0030 WT Cover WPT0031 WT Knurled Nut WPT0032 WT Stopper Washer WPT0011 WT Scale UF4009 CARRIAGE BOLT HK 1/4-20 X 1/2...
  • Page 47 WST0009...
  • Page 48 WST0009 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0033 WT Pinch Roller Support WPT0034 WT Pinch Roller WPT0035 WT Pinch Roller Shaft UF7009 SS BHCS M4-0.7 x 8...
  • Page 49 WST0010...
  • Page 50 WST0010 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0036 WT Drive Roll Pivot Shaft UF7019 SS E Ret'g ring external 10mm...
  • Page 51 WST0011...
  • Page 52 WST0011 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0040 WT Drive Roll Shaft WPT0038 WT Drive Roll WPT0039 WT Drive Roll Gear UF7013 SS SSS M5 X 5MM...
  • Page 53 WST0012...
  • Page 54 WST0012 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0041 WT Drive Roll Pivot Shaft WPT0042 WT Washer WPT0072 SS E-Ret'g Ring External 16mm WPT0073 SS Ret'g Ring External 16mm...
  • Page 55 WST0013...
  • Page 56 WST0013 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0043 WT Tape Guide Support WPT0045 WT Tape Guide WPT0044 WT Stricker Plate UF6351 SS FHCS M4-0.7 x 6 mm...
  • Page 57 WST0014...
  • Page 58 WST0014 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0046 WT Knife Arm Right Side WPT0047 WT Knife Arm Left Side WPT0052 WT Reinforcement Plate WPT0004 OilliteFlange Bearing 10mm WPT0055 WT Knife Arm Block WPT0048 WT Knife Arm Pivot Shaft WST0015 WT Cutter Blade SA WPT0053 WT SPRING UF6351...
  • Page 59 WST0015...
  • Page 60 WST0015 ITEM NO. PART NUMBER DESCRIPTION QTY. WPT0049 WT Cutter Blade Support WPT0050 WT Cutter Blade WPT0051 WT Cutter Blade Lock Plate UF6351 SS FHCS M4-0.7 x 6 mm...
