- Page 1 Mi Drone User Guide Please read this manual carefully before using...
- Page 2 Be away from the circumstances such as airports, railways, high ways, tall buildings and electric wires etc. The flying height, distance and zone are limited by relevant laws and regulations set forth by government. All operator should compliance with safety precautions during using this product. Scan & Install Mi Drone App...

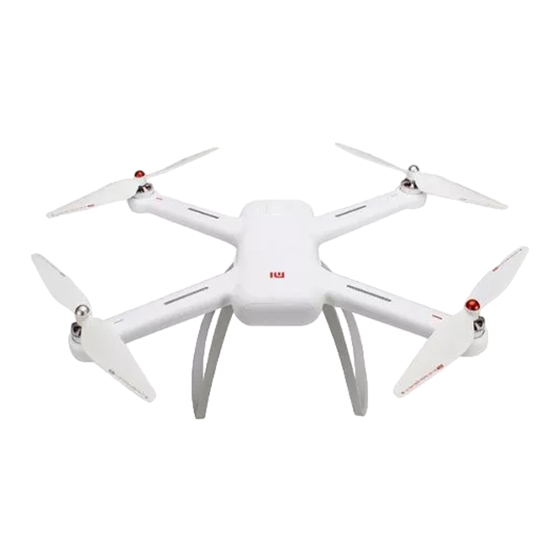

- Page 3 P r o d u c t s & A c c e s s o r i e s 1. Aircraft Auxillary Positioning Module (Option) Motor Undercarriage Lock Battery Compartment Light Undercarriage...
-
Page 4: Radio Controller
P r o d u c t s & A c c e s s o r i e s 2. Radio Controller Normal Flight/Auto Return Mode Switch Button B Button A Mobile Device Holder Belt Hole Left Roller Left Stick Right Stick Power Button Battery Indicator... - Page 5 P r o d u c t s & A c c e s s o r i e s 3. Integraded Gimbal Camera Shock-Absorbing Frame Rotate Upwards Connection Indicator TF Card Port Camera Lens Micro-USB Port Shooting Indicator...
- Page 6 P r o d u c t s & A c c e s s o r i e s 4. Accessories for Quadcopter 5. Tool Box Wireless Adapter Quick-detachable Propellers Battery USB Cable Battery Charger...
-
Page 7: Charge The Battery
C h a r g i n g 2. Charge the Radio Controller 1. Charge the Battery The indicator will be blinking during the charging The indicator will be turned off when chariging is completed Indicator Power High 100～240 V The indicator will be blinking during the charging The indicator will be turned off... - Page 8 P r e p a r e 1. Prepare the Aircraft a. Undercarriage Undercarriage lock Turn down the undercarriage till hear clicking sound； Turn and hold the undercarriage lock to unlock position; Note: Pull up the undercarriage. Before flight, the undercarriage MUST be turned down.
- Page 9 b. Battery c. Protective Frame Push the battery into the battery Please use included screws and compartment till hear clicking sound. driver to assemble propeller frames. Press the battery assemble switch Two screws are needed on every then can pull out the battery. propeller frame.
- Page 10 d. Propellers Disassemble Assemble Check propeller cap is on unlock position Put the propellers on the top of motors with same color marks. Press the propeller down onto the motor and rotate the propeller cap in the lock direction untill it is secured. Color Mark .
- Page 11 P r e p a r e t h e G i m b a l C a m e r a Insert TF Card Turn and keep the gimbal switch to unlock position, remove the gimbal cover. TF Card Port USB Port Insert gimbal camera into Upwards rotate 90°...
- Page 12 P r e p a r e t h e R a d i o C o n t r o l l e r Clip Unfold the antennas as shown figure. Pull out moble device holder untill the clip pop up. Note: Please keep the vertical surface of antennas toward aircraft to get the more stable singnal level.
- Page 13 Open the cover on the bottom of radio controller Connect the radio controller with mobile device by USB cable or wireless adaptor Refer to Mi Drone APP instruction to complete connection. Note: Due to size limitation, Some mobile device MAY NOT be placed on the holder.
- Page 14 Choose USB cable to connect the radio controller and mobile device 1 . Open Mi Drone APP, select “ Next” button 1 . Open Mi Drone APP, select “ Next” button 2 . Pop up dialog box, select “USB connection”, tap 2 .
