Solazone Q4 User Manual

For 300 – 600 watt vertical wind generators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Solazone
USER MANUAL
300 – 600 watt Q4 Model
For
Vertical Wind Generators
Version 02. Updated 10 June 2017.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solazone Q4

  • Page 1 Solazone USER MANUAL 300 – 600 watt Q4 Model Vertical Wind Generators Version 02. Updated 10 June 2017.

  • Page 2: Table Of Contents

    IMPORTANT NOTE: Read this manual carefully and completely before attempting to install or use this device. Incorrect installation could contribute to death, injury, or property damage, and will void the warranty. Contents Part 1. Important Safety Information Part 2. Product Features Part 3.

  • Page 3: Part 1. Important Safety Information

    Basic requirements： ● Do not disassemble the wind generator. Please contact the Solazone maintenance department for advice whenever the wind generator requires servicing. ● Do not modify or change the equipment structure, safety features and performance design.
  • Page 4 5. When assembling the wind generator, all parts should be fastened with fasteners as specified in table 2. Table 2 tightening Executive Serial# Fasteners spec remarks quantity torque (N*M) standard Flange bolts M12x55 galvanized Plain washer D12.2 galvanized Spring washer D12.2 galvanized one-time...
  • Page 5 wrapped with adhesive tape and then stuffed into the steel pipe. After that, wind generator flange and tower flange can be connected. 7. Before hoisting the wind generator, the ends of the output leads, which are to be connected to the charge controller, should be bared and then screwed together. ( to short circuit them) 8.

  • Page 6: Part 2. Product Features

    Part 2. Product Features 1. This wind generator has low start up speed; high wind energy utilization; beautiful appearance, and low vibration. 2. It features creative simple design, easy installation, maintenance and repair. 3. The blades are strong with an optimized aerodynamic contour and structure, the blades have high utilization of wind energy, which contributes to the high annual energy output.
  • Page 7 U-type bolt(4-WIRE STRAND) GB/T5976-8 Galvanized steel guy wire 1*19-10 Wind turbine tower Strainer(16 inches) mixed earth mounds The earth anchor Figure1:manufacture of mixed earth mound Figure3 The manufacture of guy cable Technical requirement 1、L-type bolts for four galvanized wire strands; screws should be 60 higher from the mixed earth surface.
  • Page 8 Rubber Cushion Flange base Flange base stiffener Tron pipe Tron pipe The flange joint stiffener decided on your own steel bracket welded tinn ed Tower base tinned Grounding connector outlet Figure 2 wind generator flange connection in the top of tower 5.

  • Page 9: Part 4. Installation

    Part 4. Installation · Do not try to assemble and install the wind generator on rainy days. 1 . The three insulated power output transmission wires are installed inside the steel pole mounting tower. The upper ends come out through the center hole of the wind generator flange, while the bottom ends come out from a 12mm hole drilled about 30cm above the ground.
  • Page 10 4. After completing the installation of the tower and lightning protection, use a 500V megga to measure the insulation resistance between transmission lines and earth. (earth wire can act as ground) In the case of not separating the short circuited leads of the transmission lines, measurement should not be less than 5MΏ, otherwise check whether the insulating layer may be crushed or damaged, and this should be dealt with immediately.

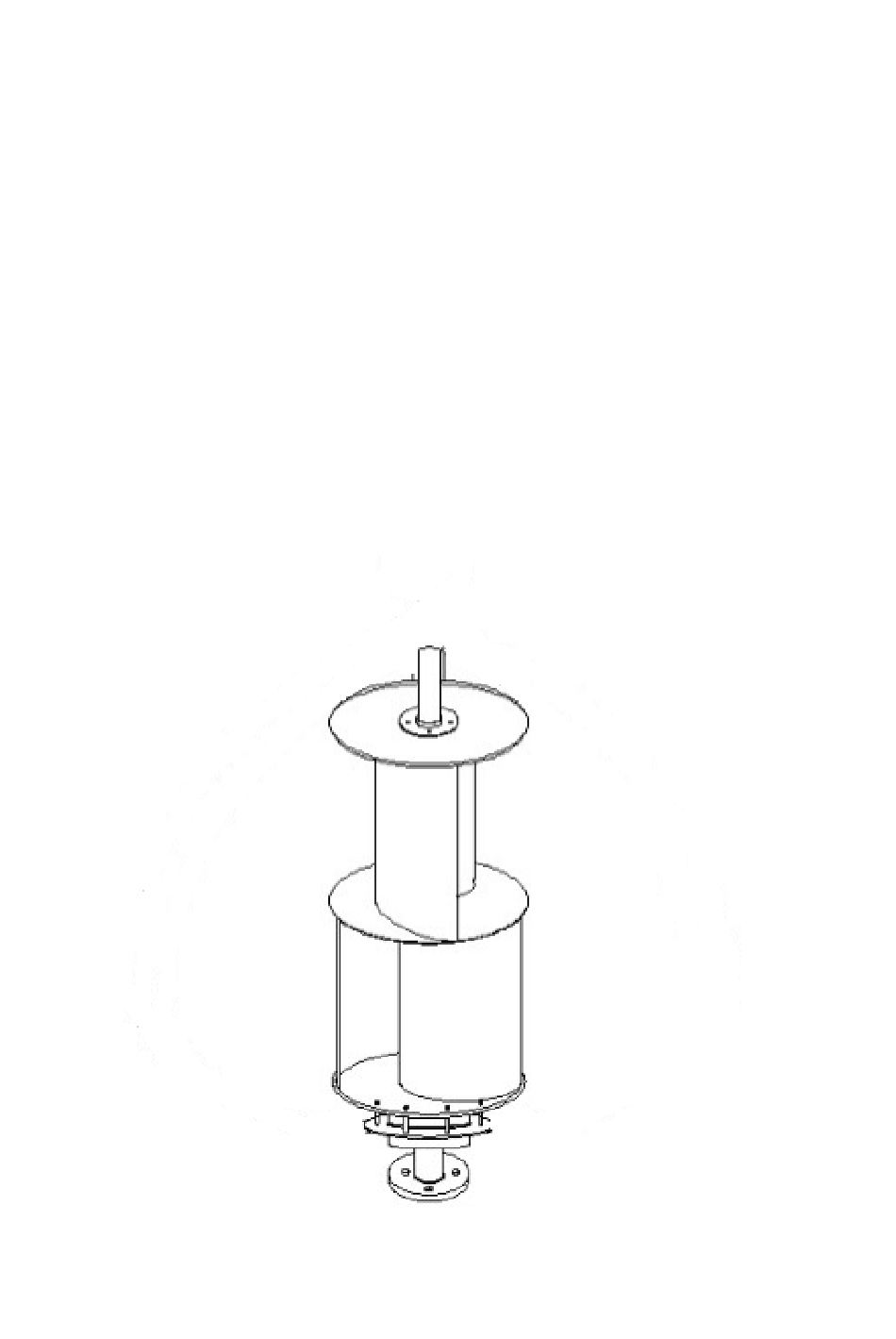

  • Page 11 Figure 3 1.Triangle plate for 3 outer blades 2. Inner blades 3. Generator 4. Flange Plate 5. Connecting plate 6. Outer blades 7. Connecting bolts Figure 4 wind generator decomposition...

  • Page 12: Part 5. Connecting The Controller

    Part 5. Connecting the Controller · Avoid heavy rain days for the first commissioning. Ideally, days with gentle breeze or a strong wind are best. (wind speed: 5~13m/s). 1. Carefully connect the positive and negative poles of the battery to the positive and negative poles of controller, observing the polarity.
  • Page 13 Attention: ● Battery should be connected to the controller before the wind generator is connected to the controller. ● Failure to follow these important instructions will void your warranty. Connection diagram of wind generator, battery & electrical appliances Note: Even though this diagram shows solar panels can be connected to the wind generator controller, we strongly recommend that solar panels be connected through their own separate solar regulator, unless using a very small solar array.

  • Page 14: Part 6. Maintenance And Precautions

    Part 6. Maintenance and Precautions 1. Wind generators often work in harsh environments, so check it regularly with your sight and hearing; check whether the tower is swaying or whether the cables may have become loose. (using a telescope is a good idea). 2.

  • Page 15: Part7. Packing List

    Part 7. Packing List Serial# Item Quantity Remarks Wind Generator body Outer blades optional Bolts and nuts 1 bag L spanner optional hex wrench optional Controller / inverter optional tower optional Part 8. Warranty 1. The company guarantees customers that the wind generator is of excellent quality, functions well, the body is complete, and rigorously checked before delivery, 2.

  • Page 16: Owner's Registration Details

    Sales company： Purchase date： Address： Invoice： Postcode： Model： Phone： Maintenance records: Maintenance species Date Summary SMT rework Solazone Victoria Solazone Queensland 68 Highbury Road 5 / 6 Beech Street Burwood, Vic., 3126 Marcoola, Qld., 4564 (03) 9808 7337 (07) 5448 8304...
