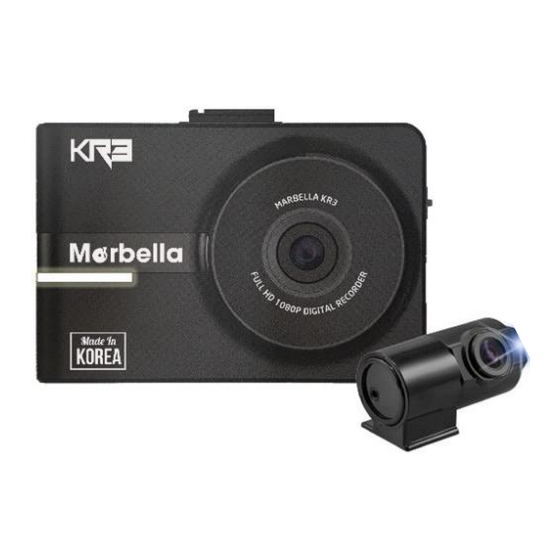

USER MANUAL
Trademarks
All brand and product names are trademarks or registered
trademarks of Maka GPS Technologies Group. In association with
Maka GPS Technologies Private Limited (Singapore), Maka GPS
Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group
(H.K.) Limited. and Maka Corporation USA
Inc.
The information in this manual is subject to change without notice
.
www.makagps.com
10/2018. R1.1
1
© 2018 Maka Technologies Group. All Rights Reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marbella KR3 series
Summary of Contents for Marbella KR3 series
- Page 1 USER MANUAL Trademarks All brand and product names are trademarks or registered trademarks of Maka GPS Technologies Group. In association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group (H.K.) Limited. and Maka Corporation USA Inc.
-
Page 2: Table Of Contents
Table Content Getting Started • General information • Specifications • Product guidance 05-06 • Notice of safety 07-09 • Cautions while using 10-12 • Other Caution Product Guide • Default Components • Optional Components • External Appearance • Installing instruction 16-17 •... -
Page 3: Getting Started
SD memory card. It also helps extend the life of your memory card • Unlike other Korean car dashcamera, you can view recorded video files from Marbella KR3/KR3S on any media player without having a trouble to download a dedicated player to playback on your computer Serial Number •... -
Page 4: Specifications
Video Resolution Front - FHD 1920 x 1080 @ 30fps / Rear FHD 1920 x 1080 @ 30fps (Rear camera is optional accessory unless you purchased the Marbella KR3S) 1 / 2.7” FHD CMOS sensor Image Sensor Video Codec H.264 High Profile... -
Page 5: Product Guidance
Getting Started Product Guidance of your KR3 FHD Digital Roadcorder Product Guidance Voice Recording High sensitive MIC is installed • Record video and voice simultaneously • No voice recording Operating Status • When booting, voice guide you recording in process •... - Page 6 Getting Started Product Guidance of your KR3 FHD Digital Roadcorder Speaker Guidance Speaker is installed • Event sound notification are generated in various status • Voice Guidance is generated • Voice is generated during playback in device Mounting Mount holder is supplied •...
-
Page 7: Notice Of Safety
Getting Started Notice of Safety of your KR3 FHD Digital Roadcorder Notice This user manual is made for easy using the device, furthermore it will be helpful for your safety driving. Before operating the device, read the manual carefully and follow these safety warnings in-order to prevent the user’s property damage •... - Page 8 Getting Started Notice of Safety of your KR3 FHD Digital Roadcorder • The recommended operating temperature range will be at -10℃ to 60℃, make sure that the optimal temperature is maintained. • Do not expose the device under extreme temperature (too high or too low), or else the device life span will be affected and can be damaged quickly.
- Page 9 Getting Started Notice of Safety of your KR3 FHD Digital Roadcorder • Keep the device and cables clean, or else it may cause damage or malfunction. • When the device is damaged by an accident, stop using it and contact us immediately. •...
-
Page 10: Cautions While Using
Getting Started Cautions while using of your KR3 FHD Digital Roadcorder Cautions While Using Before using the device, read the instructions carefully for proper use. • When you first start using our device, check the recorded files after 5minutes filming. After checking the device and SD card before recording, do double check that the installation method has no problem then you may take recordings normally. - Page 11 Getting Started Cautions while using of your KR3 FHD Digital Roadcorder • Use the most reliable SD card for the device. We will not take any responsibility for damages or problems caused by other branded SD card instead of using the enclosed SD card.
- Page 12 Getting Started Cautions while using of your KR3 FHD Digital Roadcorder • Whenever possible, move and park your vehicle in a shady area. If you park the vehicle outside for a long time, remember to cut off the power supply from the device. Or else it may cause malfunction of the device due to the extreme high temperature.
-
Page 13: Other Caution
Getting Started Cautions while using of your KR3 FHD Digital Roadcorder Other Cautions • When you insert SD card into the device, check card directions carefully. • Carefully remove SD card from the device, so that it may not stick out so far from you. •... -
Page 14: Product Guide
Product Guide Default Components of your KR3 FHD Digital Roadcorder Default Component Components could be changed to improve product quality without prior notice. Optional Component Note : Each component could be changed depending on their quality and supply status © 2018 Maka Technologies Group. All Rights Reserved. -
Page 15: External Appearance
Product Guide External Appearance of your KR3 FHD Digital Roadcorder External Appearance © 2018 Maka Technologies Group. All Rights Reserved. -
Page 16: Installing Instruction
Product Guide Installation Instruction of your KR3 FHD Digital Roadcorder 1. Cleaning of both window (windscreen & Rear Window) Select a suitable place for the device mounting and clean the spot with a dry cloth to achieve a good contact between the glass and the 3M double side tape 2. -
Page 17: Power Cable Hardwiring
Product Guide Installation Instruction of your KR3 FHD Digital Roadcorder Power Cable Hardwiring Batt (+) Red wire having fuse. Connect it to car permanent source (Ex. Emergency lamp, dome light, tail light etc) ACC (+) Yellow wire. Connect to the fuse that gets power through the ignition (Ex. -
Page 18: Recording Guide
Recording Guide Recording Guide of your KR3 FHD Digital Roadcorder Recording Guide There are 4 type of recording – Normal / Event / Parking / Manual (Manual event folder) Normal Recording When the ignition is turn on, the device will begin recording automatically till the ignition is turned off. -
Page 19: Driving Recording Guide
Recording Guide Driving Recording of your KR3 FHD Digital Roadcorder Driving Recording Guide When the ignition is turned on, the device will begin recording automatically till the ignition is turn off Recording Time Recording file is made at 1min long Recording Files It is made in the format. - Page 20 Recording Guide Driving Recording of your KR3 FHD Digital Roadcorder If you remove the SD card during driving recording? This device record at every 1sec. Last 1 second image is not saved. And because the SD card or main unit could be damaged, do not remove SD card during operation.
-
Page 21: Event/Manual Recording Guide
Recording Guide Event Recording of your KR3 FHD Digital Roadcorder Event Recording Guide When a impact is occurred base on your registered data (adjust the value in configuration), alarm will beep once in shortly and REC LED lamp flashes in Red Purpose of event recording is to save a important file such as accident video separately in order to prevent its missing. - Page 22 Recording Guide Event Recording of your KR3 FHD Digital Roadcorder If car engine is off suddenly by such as a accident? In case of hardwiring power connection, if there is no disconnection with car battery, it keep recording. But in case of cigar power connection recording stop after saving 1sec image If you remove the SD card during driving recording? This device record at every 1sec.
-
Page 23: Parking Recording Guide
Recording Guide Parking Recording of your KR3 FHD Digital Roadcorder Parking Recording Guide Parking recording mode will be only activated when the device is connected by hardwire power cable. Recording starts when there is an impact or movement. Recording Time Parking file size is maximum 1min. - Page 24 Recording Guide Parking Recording of your KR3 FHD Digital Roadcorder detected it stop recording. If an impact is detected by car or man, the device detects and starts recording up to 10 from an impact. If recording is not saved from a certain time when parking a car for long time? In order to prevent car battery drainage, this device support auto off function of parking recording...
-
Page 25: Booting / Main Screen
Recording Guide Booting / Main Screen of your KR3 FHD Digital Roadcorder Booting Power on the ignition or slight the power switch on your left hand side of the device to turn on the device After power is connected, it will automatically enter into the driving mode and start recording. - Page 26 Recording Guide Booting / Main Screen of your KR3 FHD Digital Roadcorder Main Screen © 2018 Maka Technologies Group. All Rights Reserved.
- Page 27 There will be 4 type of mode change. Noted : Rear Camera view only apply for Marbella KR3S user or optional to upgrade for the rear camera. © 2018 Maka Technologies Group. All Rights Reserved.
- Page 28 To view the rear camera recording tap on the icon switch over. Noted : Rear Camera view only apply for Marbella KR3S user or optional to upgrade for the rear camera. © 2018 Maka Technologies Group. All Rights Reserved.
-
Page 29: Video Playback
Recording Guide Video Playback Screen of your KR3 FHD Digital Roadcorder Play List Video Playback Screen Note : Playback of video can also be done via media player. Recommended to use VLC player © 2018 Maka Technologies Group. All Rights Reserved. -
Page 30: Setting
Setting Setting Guide of your KR3 FHD Digital Roadcorder Setting Introduction Setting Guide Recording 1. Recording Quality Selection by tapping to change from Low, Normal, High 2. Night Vison Selection by tapping to change On/Off © 2018 Maka Technologies Group. All Rights Reserved. - Page 31 Setting Setting Guide of your KR3 FHD Digital Roadcorder Parking Mode Rec type. Selection by tapping to change from i: Motion – Recording base on Motion Detection during Parking ii: Time Lapse (New Function) – Recording is based on continue loop recording when parking.
- Page 32 Setting Setting Guide of your KR3 FHD Digital Roadcorder Security LED Selection by tapping to change the blinking mode blink or off during parking and driving System Info Information of the device name/firmware version and factory restore (initializing) Memory Memory Allocation Select by tapping to change sd card memory recording time preferred more to...
-
Page 33: Pc Viewer
PC Viewer Install of your KR3 FHD Digital Roadcorder PC Viewer Install Install PC viewer which can be download from : www.makagps.com.sg > Support > Download > Marbella Dashcamera Unzip the file after download complete (bbViewer_Setup_V1.29.zip) Double click on the file to proceed install the viewer (bbViewer_Setup_V1.29.exe) - Page 34 PC Viewer PC Viewer Install of your KR3 FHD Digital Roadcorder © 2018 Maka Technologies Group. All Rights Reserved.
- Page 35 PC Viewer PC Viewer Install of your KR3 FHD Digital Roadcorder © 2018 Maka Technologies Group. All Rights Reserved.
-
Page 36: Overview
PC Viewer Starting PC Viewer of your KR3 FHD Digital Roadcorder Overview of PC Viewer © 2018 Maka Technologies Group. All Rights Reserved. -
Page 37: Q&A
PC Viewer Q & A of your KR3 FHD Digital Roadcorder Q & A Q: Video recording does not work. A: Check whether SD card is inserted properly. SD card has its own lifetime. If it does not work well, replace it with a new one or format SD card regularly.
