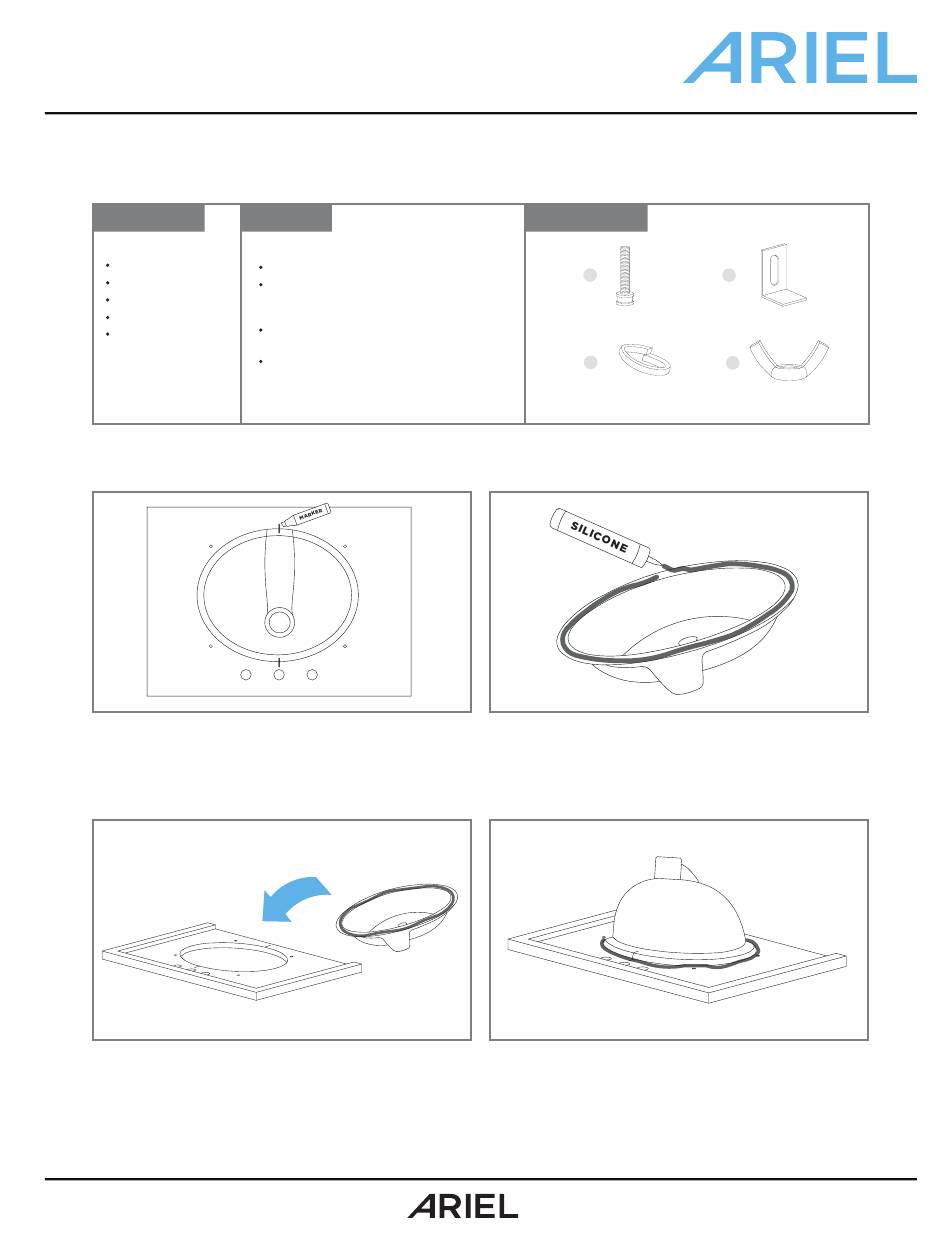

UNDERMOUNT SINK INSTALLATION GUIDE
INCLUDED
Base cabinet
Countertop
Sink basin
Backsplash
Hardware
STEP 1 - PLACE & TRACE
Place the sink basin on the bottom of the countertop, making
sure to center over the opening. Draw guide lines on the
countertop and the basin in two locations.
STEP 3 - FLIP & SET IN PLACE
Carefully flip the sink basin over and place it so the guide lines
match up in both locations.
Need Further Assistance?
For more help, please contact us and one of our trusted
experts will be more than happy to provide guidance.
NEEDED
Permanent marker
Silicone - (Recommend Liquid
Nails #LN-933 OR Loctite
#PL530 OR GE Silicone II #M90010)
Epoxy - (Recommend Loctite
#1365868 OR Gorilla Glue #4200101)
Caulking gun
WWW.ARIELBATH.COM
HARDWARE
A
Bolts (4)
C
Washers (4)
STEP 2 - PREPARE SINK BASIN
Using a caulking gun, apply a heavy amount of silicone of your
choice on the top side of the sink basin edge.
STEP 4 - DRY & SET
Press down on the sink basin to seal the silicone. Remove any
excess. Follow dry time recommendations found on your
product, typically 12 to 24 hours.
B
Undermount clips (4)
D
Wing nuts (4)
800-509-5070
Monday - Friday
9:00am - 5:00pm (PST)
P 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Ariel UNDERMOUNT SINK
- Page 1 UNDERMOUNT SINK INSTALLATION GUIDE INCLUDED NEEDED HARDWARE Base cabinet Permanent marker Countertop Silicone - (Recommend Liquid Nails #LN-933 OR Loctite Sink basin #PL530 OR GE Silicone II #M90010) Backsplash Bolts (4) Undermount clips (4) Epoxy - (Recommend Loctite Hardware #1365868 OR Gorilla Glue #4200101)
- Page 2 UNDERMOUNT SINK INSTALLATION GUIDE STEP 6 - ATTACH UNDERMOUNT CLIPS STEP 5 - PREPARE & SET BOLTS After following recommended drying time, Fill in the small holes surrounding the sink basin with epoxy. attach the undermount clips (PART B) facing down, place the Immediately place the top of the bolt (PART A) in the hole washer (PART C) on the clips &...
Need help?
Do you have a question about the UNDERMOUNT SINK and is the answer not in the manual?
Questions and answers

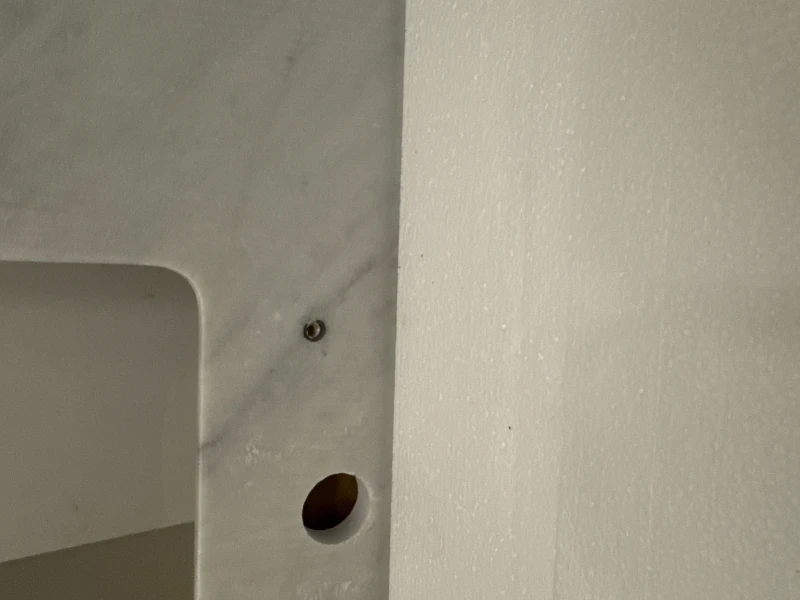

What size are these bolts. I lost them and need to replace. I have Ariel 55” Carrara marble rectangular sink. Model CW-055S-REC-CT
