Australian Barbell Company 20 Class Bar Rack Assembly Instructions

ASSEMBLY INSTRUCTIONS

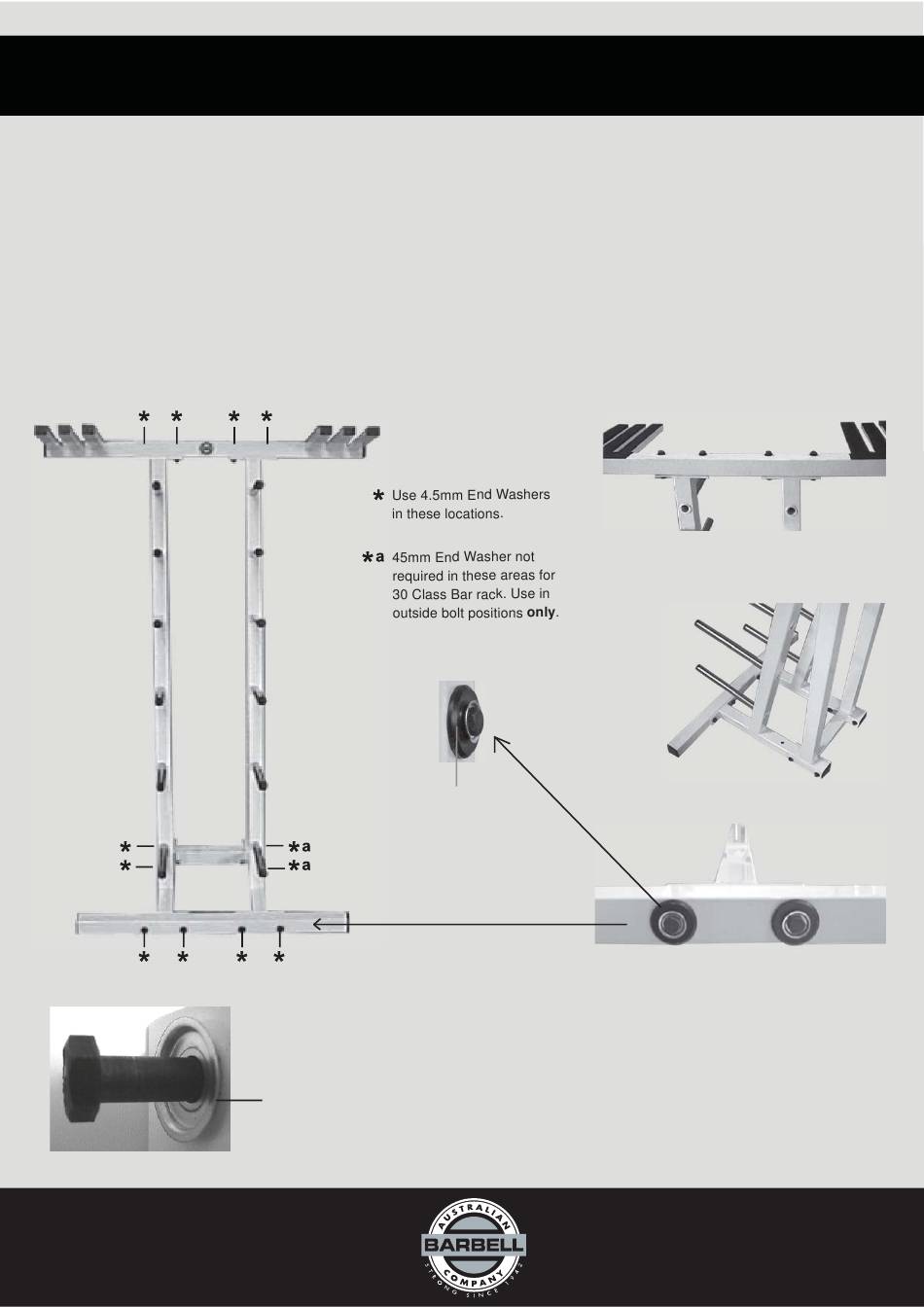

Step 1: Arrange Racking as shown below. Note, pictures below are of the
Step 2: Loosely bolt into position ensuring;
Step 3: Tighten all bolts and nuts securely using two 16mm spanners.

Step 4: Push all nut/bolt head covers into place.

FULLY ASSEMBLED RACK

Australian Barbell Company
54 Bond St West, Mordialloc, VIC 3195
ABN 29 004 420 848
20/30 CLASS BAR RACK
20 bar rack. The 30 bar rack has three columns of plate storage.
i) 45mm End Washers are used at each position listed below.
ii) A flanged washer is located under each bolt head and each nut.
(Refer to 'Plastic Bolt Head Covers' below.)
Make sure bevel
on 45mm End Washer
faces outwards.
NOTE: Your Australian Barbell Racking has been supplied with special Plastic Bolt-Head Covers.
These are used to cover all bolt heads and nuts. When assembling racking, please follow these
instructions to ensure they are fitted correctly.
i) Ensure that the flange on the Flanged Washer is facing upwards.
ii) After all bolts have been fully tightened, push the Plastic Bolt-Head Cover down onto the
steel washer and it will snap into place.

PLASTIC BOLT HEAD COVERS

info@australianbarbellco.com
www.australianbarbellco.com

TOP/BACK VIEW

SIDE VIEW

CLOSE UP
45mm End Washers
