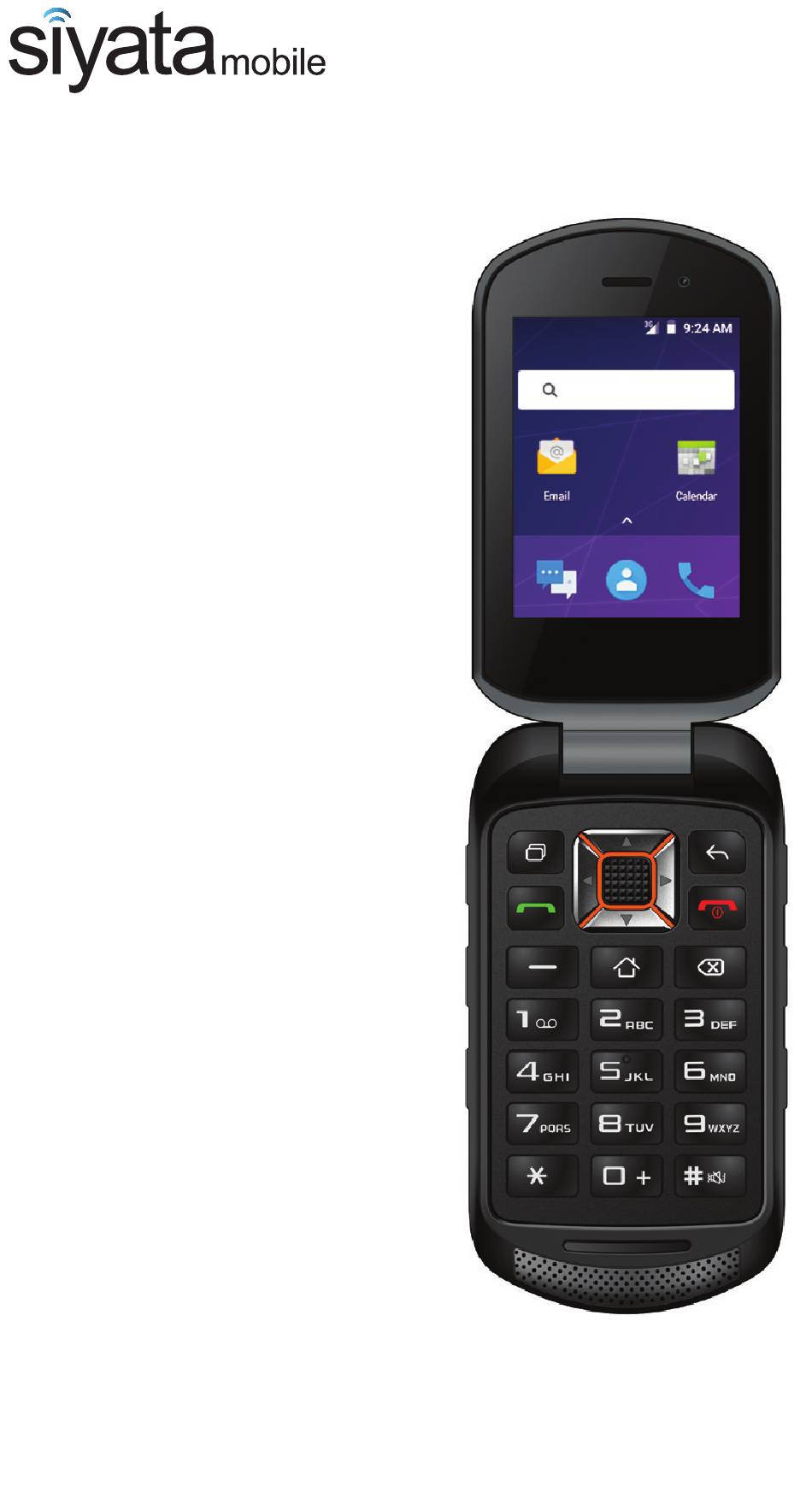

- Page 1 POWERFUL SMART CLAMSHELL FOR A RUGGED WORLD User Guide...
- Page 2 4G LTE SMART RUGGED CLAMSHELL DEDICATED PTT BUTTON DUAL SPEAKER ENSURES EXCELLENT SOUND QUALITY QUALCOMM SNAPDRAGON 210 MSM8909, QUAD CORE, 1.2GHZ ANDROID OS * Additional Accessories Available...

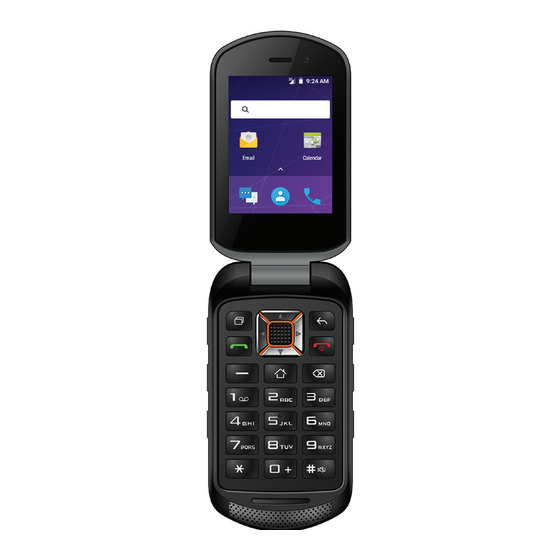

- Page 3 Thank you for purchasing UR7 The Siyata UR7 is the first LTE rugged smartphone in a clamshell form factor. This powerful device is based on a Qualcomm Snapdragon chipset supporting 4G LTE. This IP67 device boasts 4G speed, crystal clear...
-
Page 4: Table Of Contents
Table Of Contents Your UR7 ............6 1.1 Keys and Connectors ..........6 1.2 Getting started ............8 1.3 Home screen ............9 Basic Operations ..........12 2.1 Making a call ............12 2.2 Answering or rejecting a call ....... 12 2.3 Call log .............. - Page 5 Box Content Your purchased UR7 device includes the following Original items: UR7 Device Battery AC adapter Micro USB cable User Guide Note: We have made every effort to ensure that the product arrives complete and in working order. If you discover any problems with this product, please contact the point of sale immediately.
-
Page 6: Your Ur7
Your UR7 1.1 Keys and Connectors Touchscreen Recently used Back application End key Call Key Softkey Navigation keys Voice mail Home Key Change Silent/ language Vibration Speaker... - Page 7 Softkey Flashlight Headset connector PTT key Volume up Volume down Micro USB connector Camera SOS key On home screen – touch and hold on empty place to see available options: Settings, Widgets, Wallpapers. Short press: Back to home screen. Go back to the previous menu or screen.
-
Page 8: Getting Started
1.2 Getting started 1.2.1 Set-up Removing the back cover Using a coin or other similar object, turn the screw on the back cover, then pull off the cover. Removing the battery Remove the back cover and then remove the battery. Inserting and Removing the SIM cards Please power off your phone and remove the battery before inserting or removing the SIM cards. -
Page 9: Home Screen
1.3 Home screen 1.3.1 Home screen display The home screen allows you to organize your applications and folders on home screen itself. In this way you can keep your most useful applications at hand. Your home screen provides you with up to date information such as the weather, calendar, next meetings, notifications, new messages, missed calls, new mail, etc. - Page 10 Pinch/Spread: Place the fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate: Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better screen view. 1.3.3 Status bar From the status bar you can view the time, battery status, Network and notifications.
- Page 11 From the notification panel you can open options with a single keystroke, move over the icons of different alerts and reminders, or edit the options. 1.3.4 Lock/Unlock your screen To protect your phone and privacy, you can touch once to lock the screen and you can also select Settings, Security, Screen lock to lock the phone screen by creating a variety of patterns, a PIN or password.
-
Page 12: Basic Operations
Basic Operations 2.1 Making a call Enter the desired number from the keyboard directly and touch , or touch to open the Contact list, or select a contact from Contacts, All. The number you entered can be saved to the Contact list. -
Page 13: Call Log
2.3 Call log Access you call memory by touching from the Home screen, and select Call log. Messaging You can create, edit and receive SMS and MMS with this mobile phone. To access this feature, touch key from the Home screen, or select SMS from the app list. -
Page 14: Edit Text
3.2 Edit Text You can edit the text you have entered. Click the text you wish to edit, the selected text will be highlighted in green. Drag the highlighting tab to change the range of your selection. A menu will display the options. -
Page 15: Edit A Contact
4.3 Edit a Contact Slide with your finger up/ down to find a contact. Select the one you need. Touch to Edit. Touch More fields to get more options. Touch to save. Importing, exporting and sharing contacts From the Contacts screen, touch key and touch Import/Export. -
Page 16: Accounts
Touch key from the contacts list screen, and touch Accounts. Accounts Touch Settings, Accounts and select Add Account to add you email address. Note that this feature requires an active Internet connection. Settings Menu The Settings menu includes all application and phone menu settings. -
Page 17: Troubleshooting
Troubleshooting Before contacting the service centre, you are advised to follow the instructions below: • You are advised to fully charge the battery for optimal operation. • Avoid storing large amounts of data in your phone as this may affect its performance. Carry out the following checks: My phone is frozen or cannot switch on •... - Page 18 charger from the box • Make sure your battery is inserted properly and clean the battery contact if it’s dirty. It must be inserted before plugging in the charger • Make sure that your battery is not completely discharged; if the battery power is empty for a long time, it may take around 20 minutes to display the battery charger indicator on the screen •...
- Page 19 • Try connecting at a later time or another location Invalid SIM card • Make sure the SIM card has been correctly inserted • Make sure the chip on your SIM card is not damaged or scratched • Make sure the service of your SIM card is available Unable to make outgoing calls •...
- Page 20 The caller’s name/number does not appear when a call is received • Your caller has concealed his/her name or number I cannot find my contacts • Make sure your SIM card is not broken • Make sure your SIM card is inserted properly •...
- Page 21 My callers are unable to leave messages on my voicemail • Contact your network operator to check service availability I cannot access my voicemail • Make sure your operator’s voicemail number is correctly entered in “My numbers” • Try later if the network is busy I am unable to send and receive MMS •...
- Page 22 • Make sure that the two phones are within Bluetooth’s detection range How to make your battery last longer • Make sure you follow the complete charge time (minimum 3 hours) • After a partial charge, the battery level indicator may not be exact.
-
Page 23: Safety Use
Safety use We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. Traffic Safety Given that studies show that using a mobile phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...),... - Page 24 Conditions of Use You are advised to switch off the telephone from time to time to optimise its performance. Switch the phone off before boarding an aircraft. Switch the phone off when you are in healthcare facilities, except in designated areas. As with many other types of equipment now in regular use, mobile telephones can interfere with other electrical or electronic devices, or equipment using...
- Page 25 Do not paint it. Use only batteries, battery chargers, and accessories which are recommended by Siyata Mobile and are compatible with your phone model. Siyata Mobile disclaim any liability for damage caused by the use of other chargers or batteries.
- Page 26 written record of all important information stored in your phone. Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout.
- Page 27 • If you continue to have sore hands, wrists, or arms during or after playing, stop the game and see a doctor. When you play games on your phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow the instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders.
- Page 28 Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by Siyata Mobile. This symbol on your telephone, the battery and the accessories means that these...
- Page 29 They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points.
- Page 30 source is compatible with that marked on the charger. • In order to decrease the risk of damage to the electric cable, do not disconnect the charger from the socket by pulling the cable. Grip the charger itself and pull it out of the socket. •...
- Page 31 Disclaimer There may be certain differences between the user manual description and the phone’s operation, depending on the software release of your telephone or specific operator services. Warning: The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this mobile phone or use contrary to the instructions contained in this manual.
- Page 32 © 2018 Siyata Mobile Inc. All rights reserved www.siyatamobile.com...
