Summary of Contents for Brightwin Technology BRT2010

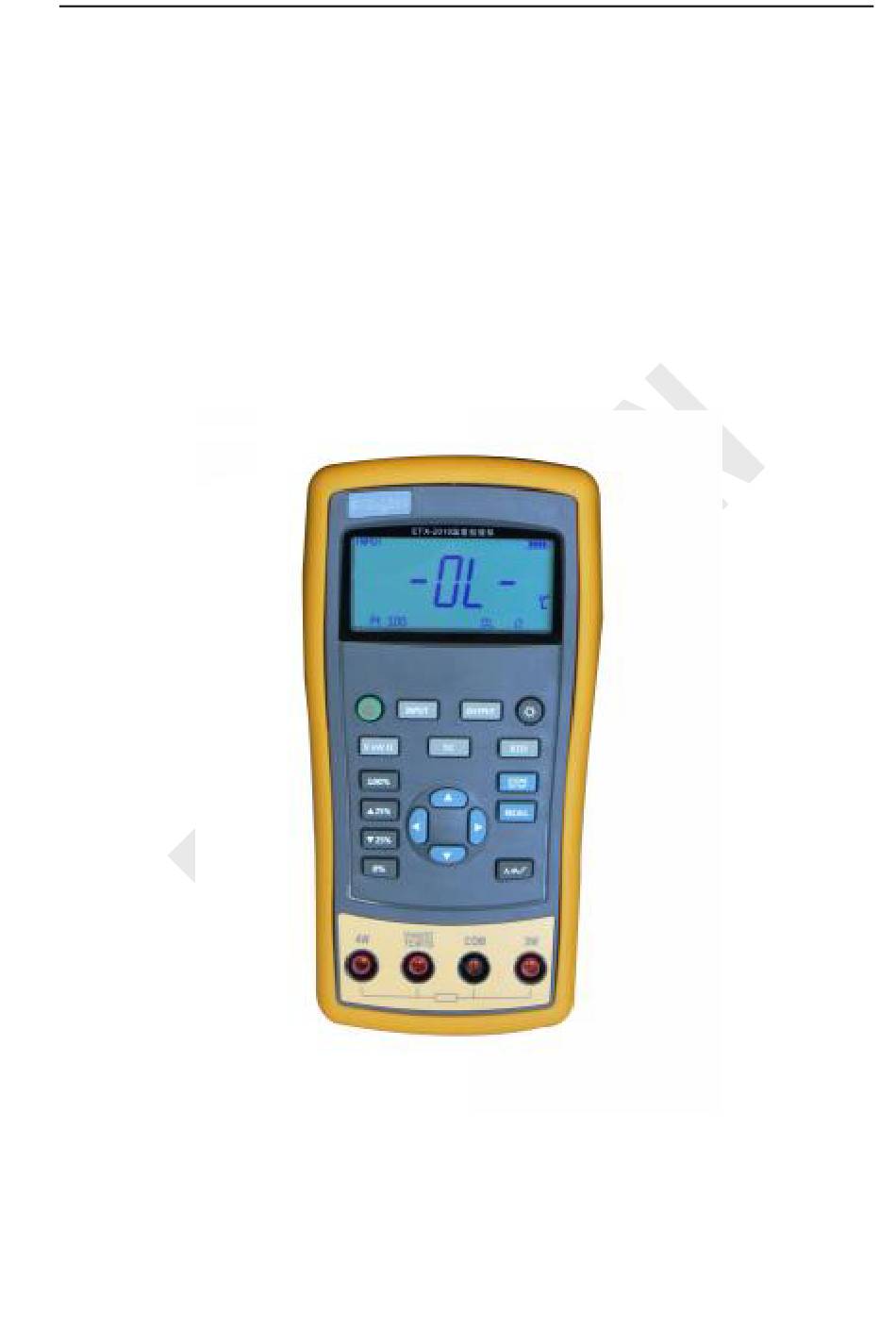

- Page 1 Temperature Calibrator Users Manual Model No.: BRT 2010 Shenzhen Brightwin Technology Co., Ltd.
-
Page 2: Table Of Contents
Contents 1 Basic Introduction......................1 1.1 Function......................1 1.2 Summary of Source and Measure Functions..........1 1.3 Terminal Description..................2 1.4 Key Description....................3 1.5 Display Screen....................4 2 Basic Operation......................5 2.1 Measure and Source..................5 2.2 Shutdown Mode....................7 2.3 Backlight Brightness Adjustment..............8 3 Function Usage......................9 3.1 DC V Measurement..................9 3.2 DC mV Measurement.................. - Page 3 8.2 DC Voltage Source..................23 8.3 Resistance Measurement................24 8.4 Resistance Output..................24 8.5 Temperature, TC.....................25 8.6 Temperature, RTD..................26 9 Product Accessories....................27 9.1 Standard Accessories..................27 9.2 Optional accessories..................27 10 Warning........................28...
-
Page 4: Basic Introduction
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 1 Basic Introduction 1.1 Function It allows you to measure DC V, DC mV, resistance ,TC and RTD. Outputs resistance, simulation of TC and RTD. Thermocouple (TC) measurement provides cold-junction compensation. Manual stepping, automatic stepping, 0 ～ 100% phase step and ramp ... -
Page 5: Terminal Description
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 1.3 Terminal Description Figure 1.3-1 Name Description Communication and Connect power adaptor to charge batteries or connect ① charging connector the calibrator to the computer. 3-wire and 4-wire electric and thermal resistance 3W and 4W terminal ②... -
Page 6: Key Description
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 1.4 Key Description Figure 1.4-1 Description Turns the power on or off ① Selects the measurement mode ② Selects output and analog transmitter mode. ③ Enables backlight switch display during start, enters backlight ④ brightness control mode. Selects thermal resistance mode ⑤... -
Page 7: Display Screen
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Recovers factory default setting ⑦ Sets manual output ⑧ Cycles through: ⑨ slow repeating 0%-100%-0% ramp Fast repeating 0 % - 100 % - 0 % ramp Repeating 0 % - 100 % - 0 % ramp in 25 % steps Set output by 0% of span, Press and hold to store the source ⑩... -
Page 8: Basic Operation
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 2 Basic Operation 2.1 Measure and Source This section acquaints you with some basic operations of BRT-2010/ BRT-1810. Proceed as follows: The connection of the calibrator as shown in Figure 2.1-1. Figure 2.1-1 Press more than 2 seconds to turn on the calibrator. The calibrator checks itself, including check on internal circuit and LCD, during which, LCD displays all contents for 1s as shown in Figure 2.1-2: www.brightwinelectronics.com... - Page 9 BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Figure 2.1-2 Then the product model（2010） and automatic shutdown time（30 min） will be displayed for 2 seconds as shown in Figure 2.1-3. Figure 2.1-3 Then the default interface of boot will be displayed as shown in Figure 2.1-4: Figure 2.1-4 Press...
-
Page 10: Shutdown Mode
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Figure 2.1-5 Press to increase or decrease 1 of the horizontal line position (the number will be based on automatic stepping without change of horizontal line position); press to change the position of horizontal line. Press until the buzzer works and to enter 0mV as 0% value. -
Page 11: Backlight Brightness Adjustment
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR shutdown after the time duration has elapsed from the time the last key was pressed. To disable the shutdown mode, press simultaneously. To enable the mode, press simultaneously. To adjust the time duration, press simultaneously, the screen will display as shown in Figure 2.2-1,then press and/or to adjust the time between 1 and 30 minutes... -
Page 12: Function Usage
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 3 Function Usage 3.1 DC V Measurement The default function after turn on is DC V measurement. If it is required, press to re-select the voltage measurement (the display unit is V).Please connect the lines after all functions are selected. The connection mode and interface are shown in Figure 3.1-1: Figure 3.1-1 www.brightwinelectronics.com... -
Page 13: Dc Mv Measurement
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 3.2 DC mV Measurement Press to re-select the DC mV function (the display unit is DC mV), the connection mode is same to that of voltage measurement. The screen will display as shown in Figure 3.2-1. Figure 3.2-1 3.3 Resistance Measurement Press... -
Page 14: Dc Mv Output
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Figure 3.3-2 Press to force the calibrator to adopt two-wire system, three-wire system or four-wire system. Afterwards, the calibrator will not detect connecting type automatically unless you quit the mode of resistance measurement and re-enter. 3.4 DC mV Output Press to select DC mV output function, the connection mode... -
Page 15: Resistance Output
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 3.5 Resistance Output Press to select the resistance output function, the connection mode is same to that of voltage measurement. Figure 3.5-1 indicates the undersize of exciting current, meanwhile, the main value flashes Press to select resistance output at 3200Ω level. Figure 3.5-2 indicates the oversize of exciting current, meanwhile, the main value flashes... -
Page 16: Temperature Measurement
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 4 Temperature Measurement 4.1 Using Thermocouple (TC) The calibrator supports eleven standard thermocouples, including J, K, T, E, R, S, B, L, U and N. Lower table summarizes the ranges and characteristics of the supported thermocouples Positive wire (H) Specified Positive lead... - Page 17 BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Process temperature Figure 4.1-1 Attention: Under different calibrator-thermocouple temperature environment, you shall wait for one minute to stabilize the plug temperature after connecting TC to input & output wiring. Press to select measurement mode. Press to display thermocouple reading as shown in Figure 4.1-2.
-
Page 18: Using Resistance Thermometer Detector (Rtd)
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Figure 4.1-3 There are two kinds of cold end temperature compensation for thermocouple measurement, automatic compensation directly using machine internal cold end temperature compensation and manual compensation through the key to set the cold end temperature compensation by the user. 4.1.1 Automatic compensation First entered the thermocouple measurement mode, the default of the cold end temperature compensation is automatic compensation reading as shown in... - Page 19 BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 4.1.2 Manual compensation Manual compensation through the key to set the cold end temperature compensation by the user, the following steps shall be followed: Press key to enter the set mode, reading as shown in Figure 4.1.2-1, the appear of sign shows that entering the setup mode, the assistant value...
- Page 20 BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR Using Resistance Thermometer Detector (RTD) The calibrator accepts Pt100, Pt1000, Cu50 and Cu100, etc. The calibrator accepts RTD measurements inputs in two-, three-, or four-wire connections, with the three-wire connection the most common. A four-wire configuration provides the highest measurement precision, and two-wire provides the lowest measurement precision.
-
Page 21: Simulation Of Temperature Sensor
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 5 Simulation of temperature sensor 5.1 Simulating Thermocouples Connect calibrator input/output terminal to the instrument to be tested using thermocouple. The connecting diagram is shown below, Proceed as follows to simulate a thermocouple: Connect thermocouple to the TC input/output plughole of calibrator as shown in Figure 5.1-1. -
Page 22: Application Of Resistance Temperature Detector (Rtd)
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR using thermocouple, section same to please refer to 4.1 for specific operation. Application Resistance Temperature Detector (RTD) Connect the calibrator and the instrument to be tested according to the Figure 5.2-1. Simulation of RTD should be based on the following steps: If necessary, press to select mode. -
Page 23: Advanced Application
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 6 Advanced Application 6.1 Setting 0 % and 100 % output parameters As for stepping operation and percentage display, 0% and 100% should be set before using. Some gear values have been set when delivered from the factory and set values are illustrated below: Output Function 0% value... -
Page 24: Auto Ramping The Output
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR based on 25% increment. Press instantly to make output jump within the span of 0% to 100%. 6.2 Auto Ramping the Output Automatic ramping gives you the ability to continuously apply a varying stimulus from the calibrator to a transmitter, while your hands remain free to test the response of the transmitter. -
Page 25: Power
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 7 Power The calibrator needs 6 disposable LR03 model (size 7) alkaline batteries or 6 R03 model (size 7) nickel-metal hydride batteries (or nickel-cadmium batteries). The longest service life of alkaline batteries can reach 50 hours. A 12V/1A power adaptor is used for charging and providing working power for the calibrator. -
Page 26: Specifications
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 8 Specifications Specifications are based on a one year calibration cycle and apply from +18℃ to +28 ℃ unless stated otherwise. All specifications assume a 10 minute warm up period. 8.1 DC Voltage Measurement Accuracy (% of reading + Maximum Counts) measurement... -
Page 27: Resistance Measurement
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 8.3 Resistance Measurement Accuracy (Ω) Maximum BRT-1810 BRT-2010 Range measurement Resolution range 2-wire, 2-wire, 4-wire 4-wire 3-wire 3-wire 400Ω 0～440Ω 0.01Ω 0.25 0.15 0.15 0.10 3200Ω 420Ω～3600Ω 0.1Ω -10 ℃～ 18 ℃， +28 ℃～ 55 ℃ temperature coefficient,±0.005%FS/ ℃ . Exciting current during measurement: 400Ω... -
Page 28: Temperature, Tc
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 8.5 Temperature, TC Accuracy (Ω) Graduation Range Resolution BRT-1810 BRT-2010 -200℃～0℃ 1.5℃ 1.0℃ 0.1℃ 0℃～1200℃ 1.0℃ 0.7℃ -200℃～0℃ 1.8℃ 1.2℃ 0.1℃ 0℃～1370℃ 1.2℃ 0.8℃ -200℃～0℃ 1.8℃ 1.2℃ 0.1℃ 0℃～400℃ 1.2℃ 0.8℃ -200℃～0℃ 1.5℃ 0.9℃ 0.1℃ 0℃～950℃... -
Page 29: Temperature, Rtd
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 8.6 Temperature, RTD Accuracy (℃) BRT-1810 BRT-2010 Graduatio Range Resolution 2-wire 2-wire 4-wir Output 4-wire Output 3-wire 3-wire -200℃～ Pt100 850℃ -200℃～ Pt1000 0.15 0.15 650℃ 0.1℃ -50℃～ Cu50 150℃ -50℃～ Cu100 0.25 0.25 150℃ As for exciting current during measurement, please refer to resistance measurement function. -
Page 30: Product Accessories
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 9 Product Accessories 9.1 Standard Accessories A set of BRT-2010/BRT-1810 calibrator also includes the following items: hard spot test leads (one set) alligator clip (one set) one 12V/1A power adaptor BRT-2010/BRT-1810 users manual ... -
Page 31: Warning
BRIGHTWIN BRT 2010 TEMPERATURE CALIBRATOR 10 Warning To avoid possible electric shock or personal injury: Test a given voltage to confirm its normal operation before using. Please follow all the safety operation standards. Select correct function and range gear according to measurement ... - Page 32 Shenzhen Brightwin Technology Co., Ltd. Phone: 0086-18126150525 Fax: 0086-755-05464313 Website:www.brightwinelectronics.com E-mail:info@brightwinelectronics.com Zip Code: 518000 Address: #20, 10th AL, Wangtang, Bantian St., Longgang Dist, Shenzhen, China.
