The HA360DB Doorbell Signaler will alert you when someone comes to visit. The HA360DB
requires no wires and can be installed in seconds.
The HA360DB will alert you to someone at the door via the HA360M master unit. The master
unit receives a wireless signal from the Doorbell signaler and will flash a strobe, make a loud
sound and vibrate a bed shaker. Once the master unit receives the signal from the doorbell it
will also send a signal to all HomeAware remote receivers. In addition to the HomeAware
receivers, if using our optional bridge unit you will also be alerted to the HA360DB doorbell
signaler using your original Sonic Alert receivers (SA102, SA201, BL300, and SB1000).
Step #1) Install Battery

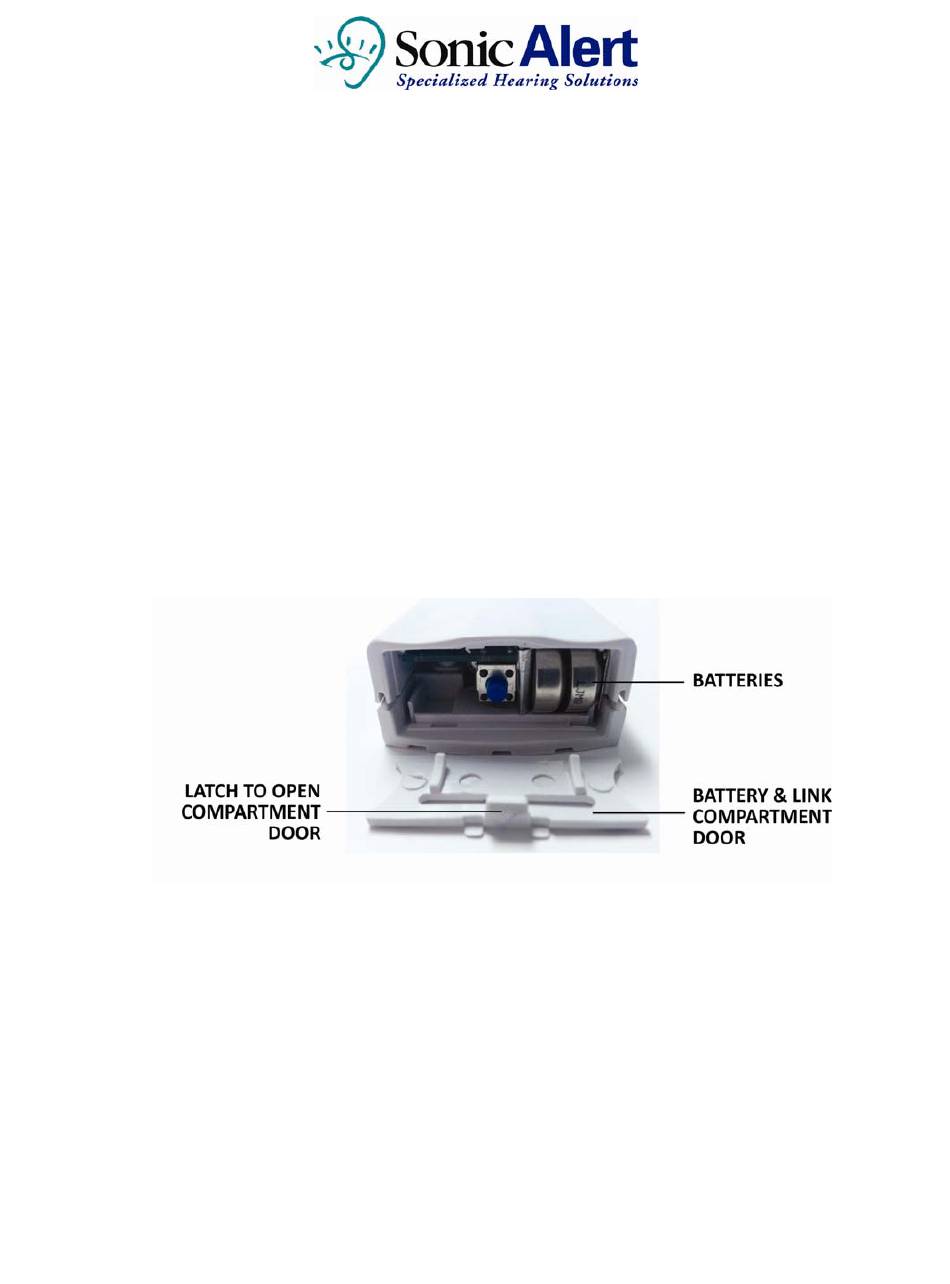

The HA360DB comes with two #357 silver oxide long lasting batteries that need to be
installed into the bottom of the unit. See photo for Battery installation. Once installed the red
light should light when the button is pushed. If the light does not show, you may have the
batteries in backwards.
Step #2) Installation of button outside
There are two methods for installing the doorbell button, see #3 if you have an existing
doorbell chime box.
For this method you will need the provided hardware to install. We provide screws, and a
mounting block see diagram for button install below, also step by step instructions.
To install to a hard surface using the provided hardware follow these steps:
1) Install mounting block using provided short screw. Install the small side to the surface
(side without arrow). This will provide a space for the unit to slide over in order to attach
to the mounting block.
2) Remove the screw cover at the top of the doorbell unit; this will slide up to remove. Once
removed, you'll see the top screw mounting hole.
Installation and setup for the HA360DB
HomeAware™ Doorbell Signaler
Advertisement
Table of Contents
Related Manuals for Sonic Alert HomeAware HA360DB
Summary of Contents for Sonic Alert HomeAware HA360DB
- Page 1 HomeAware remote receivers. In addition to the HomeAware receivers, if using our optional bridge unit you will also be alerted to the HA360DB doorbell signaler using your original Sonic Alert receivers (SA102, SA201, BL300, and SB1000). Step #1) Install Battery The HA360DB comes with two #357 silver oxide long lasting batteries that need to be installed into the bottom of the unit.
- Page 2 3) Once the mounting block is in place, and you’ve removed the top screw cover, position the back of the doorbell unit over the mounting block. There is a square opening that the block will fit into position that opening over the mounting block. Next slide the doorbell unit down on the block about 1/8 inch, the doorbell unit should stay on by itself if installed correctly.
- Page 3 This procedure will link your HA360DB to your HomeAware Master unit. The Master unit will also provide an alert to all HomeAware remote receivers. When using the Sonic Alert bridge unit HA360BU all original Sonic Alert receivers (SA101, SA201, BL300, and SB1000) will also alert you.
- Page 4 3) The word LINK will begin flashing for up to 1 minute until this part of the setup is finished. 4) At anytime if you need to exit out simply press the back button to exit. 5) Next Press the link button on the back of the HA360DB signaler. On the Master unit display the word FT DOOR will begin flashing.
- Page 5 The HA360DB Doorbell Signaler is warranted against manufacturing defects in material or workmanship for 1 year from the date of purchase. Within this period of time Sonic Alert will repair or replace at our option the HA360ss without charge for parts or labor.
