Distributed by: BEST MATERIALS ®
Ph: 800-474-7570, 602-272-8128 Fax: 602-272-8014
www.BestMaterials.com Email: Sales@BestMaterials.com

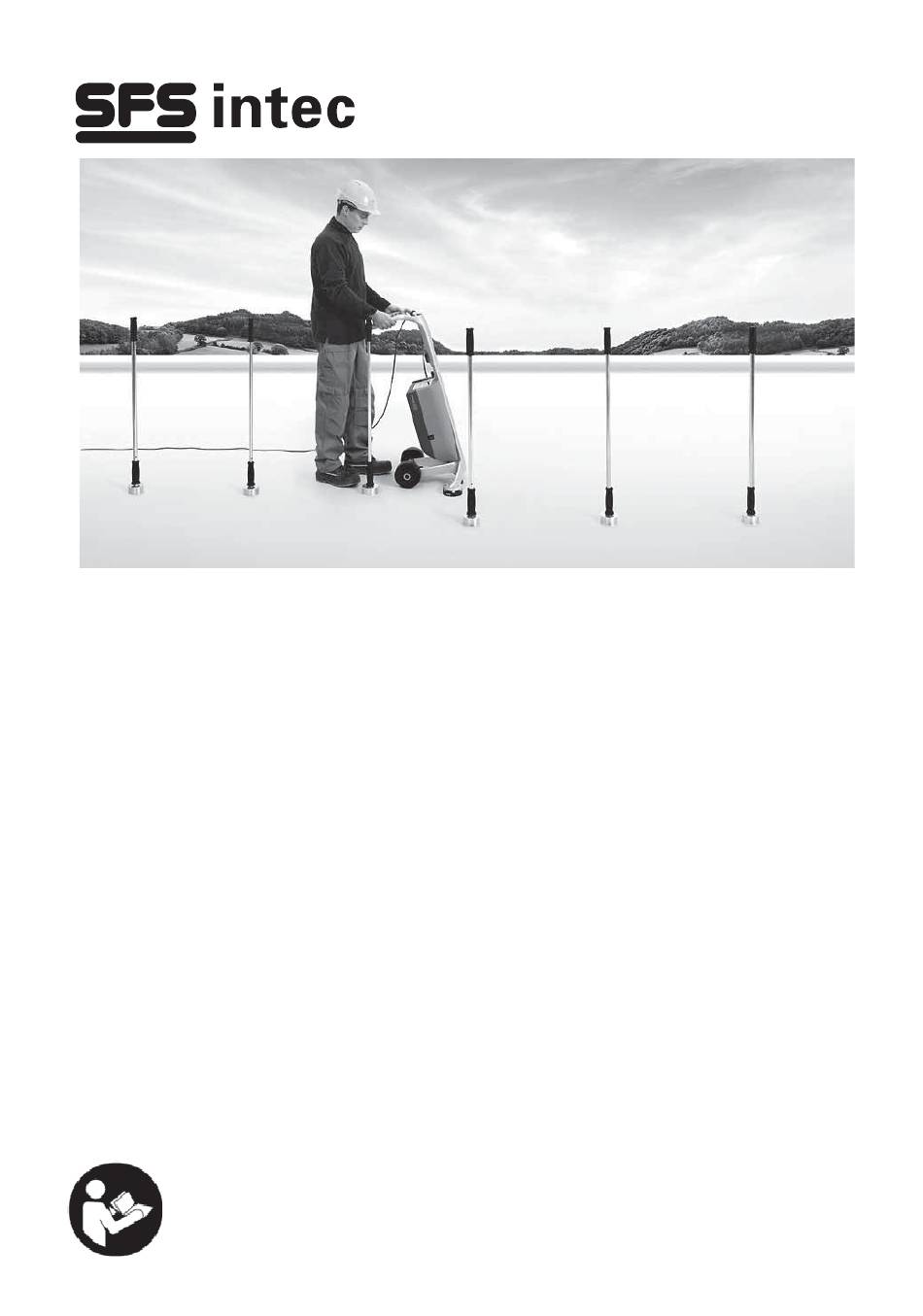

System isoweld
Original-Installationsanleitung
Installing Instructions
Instructions d'installation
Istruzioni per l'installazione
Manual de instalación
Installasjonsveiledning
Instrukcja montażu
Installatiehandleiding
Installationsvejledning
Installatiehandleiding
Руководство по установке
Installáció útmutató
Instalaþní návod
Installationsinstruktion
Asennusohje
TM
3000
DE
3
EN
11
FR
19
IT
27
ES
35
NO
43
PL
51
FL
59
DK
67
NL
75
RU
83
HU
91
CZ
99
SV
107
FI
115
Version 1.02
1
Advertisement
Table of Contents
Related Manuals for SFS intec isoweld 3000
Summary of Contents for SFS intec isoweld 3000
- Page 1 Distributed by: BEST MATERIALS ® Ph: 800-474-7570, 602-272-8128 Fax: 602-272-8014 www.BestMaterials.com Email: Sales@BestMaterials.com System isoweld 3000 Original-Installationsanleitung Installing Instructions Instructions d’installation Istruzioni per l’installazione Manual de instalación Installasjonsveiledning Instrukcja montażu Installatiehandleiding Installationsvejledning Installatiehandleiding Руководство по установке Installáció útmutató Instalaþní návod Installationsinstruktion Asennusohje Version 1.02...
-
Page 2: Table Of Contents
English Table of contents System components Deciding on installation strategy Preparing the roof for fastening Measuring and marking fastening points Fixing the stress plates Rolling out the waterproof membrane Marking the fastening points Preparing the induction tool Welding the membrane at the fastening points... -
Page 3: System Components
Dist. by: BEST MATERIALS® | Ph: 800-474-7570 www.BestMaterials.com | Email: Sales@BestMaterials.com System components Ensure that you have all required system components at your disposal. System components Product identification Stress plate FI-P Sleeves FI-R Fastener Setting tool FI80 Induction tool isoweld 3000 Magnets FI-Magnet... -
Page 4: Deciding On Installation Strategy
1. Deciding on installation strategy Familiarise yourself with the results of the wind load calculation and decide on the procedure for the installation. Consider how best to deploy personnel, materials and equipment. In this way you will achieve a fast, correct and efficient installation. 2. -
Page 5: Fixing The Stress Plates 14
4. Fixing stress plates Fix the stress plates in accordance with the wind load calculation. Use the specified fastener and preferably the FI80 hand setting tool. Only set as many stress plates as can be welded on that day. Ensure that the stress plates are dry and clean, both in storage and during and after installation. -
Page 6: Rolling Out The Waterproof Membrane
5. Rolling out the waterproof membrane Install the waterproof membrane in accordance with the membrane manufacturer’s instructions. Compared to seam fixing systems, the isoweld system makes it possible to reduce the overlap of the waterproof membrane. Overlaps of the waterproof membrane in the area of the stress plate should be avoided. - Page 7 7. Preparing the isoweld 3000 induction tool Prepare the isoweld 3000 induction tool for welding in accordance with the separate operating instructions. This includes in particular: unpacking and assembling the magnets unpacking and assembling the tool switching the tool on entering the waterproof membrane material entering the waterproof membrane thickness calibration...
-
Page 8: Welding The Membrane At The Fastening Points
8. Welding the membrane at the fastening points Proceed with the welding process in accordance with the isoweld 3000 operating instructions. For an efficient process, we recommend the following procedure: 1. Place at least 10 magnets to the right of the points to be welded (A). 2. - Page 9 Fast and exact positioning of the magnet is a prerequisite for good welds. Ensure that all fastening points have been properly welded. Should you be uncertain about whether some welds have completed properly, SFS intec recommends testing with a commercially available suction pad. See also isoweld 3000 operating instructions.
