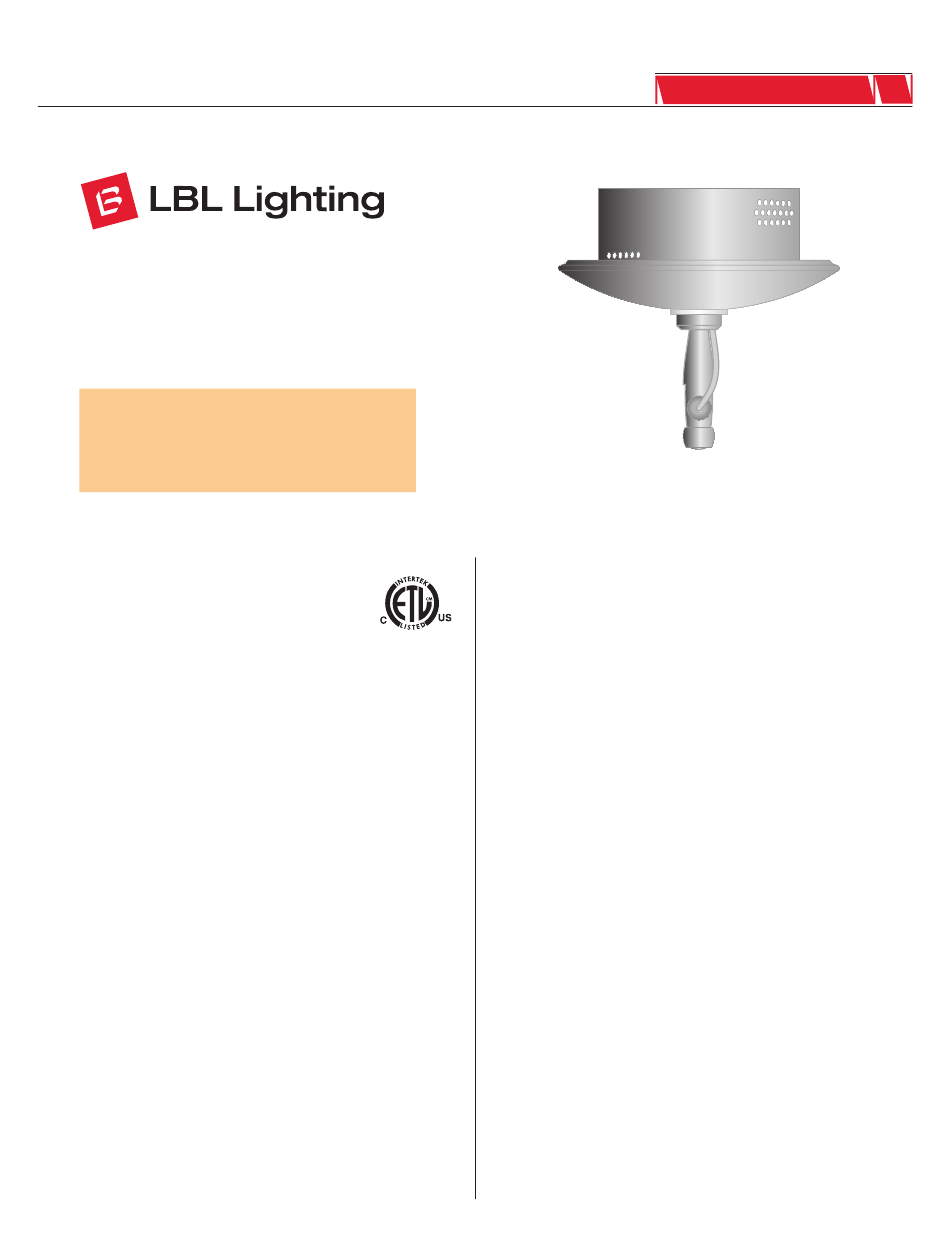

LBL Lighting TRANSDIR-SFE300 Installation Instructions

Installation Instructions for
12 Volt 300 Watt Single Direct Power Feed
Electronic Surface Mount Transformers
2-Circuit Monorail
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and DISCONNECT POWER TO
THE ELECTRICAL BOX.
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
A typical installation is shown. Specific installation must be in
accordance with local electrical codes.
This product may be dimmed only with a low voltage electronic
dimmer. Using a dimmer not designed for low voltage electronic
applications may work initially, but could eventually cause
transformer failure and will void the warranty.
derated as indicated by the dimmer manufacturer.
This product is intended for use with LBL Lighting low voltage
lighting systems only.
Read all instructions thoroughly. Read "Important Safety
Information" on next column before proceeding with the
installation.
Important Safety Information
Do not conceal or extend bus bar conductors through a building
wall.
Do not install this lighting system in a damp or wet location.
To reduce the risk of fire and burns, do not install this lighting
system where the uninsulated open bus bar conductors can be
shorted or contact any conductive materials.
To reduce the risk of the system overheating and possibly causing a
fire, make sure all the connections are tight.
The dimmer must be
Do not install fixture assemblies closer than six inches to curtains
or similarly combustible materials.
Turn the electrical power off before modifying the lighting system in
any way.
The fixtures used with the system must be identified to be used
with the corresponding system.
Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeters).
Load the circuit of the surface mount transformer to no more than
the maximum rated capacity as specified.
To reset the electronic surface mount transformer, turn the power
off then on (main power, breaker panel, or wall switch).
