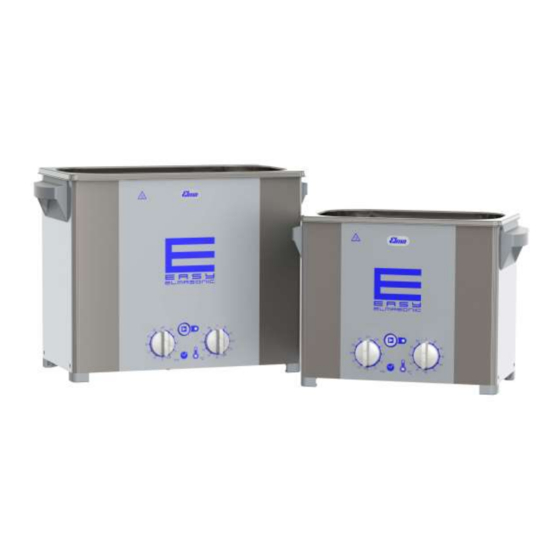

Summary of Contents for Elma Elmasonic EASY 10 H
- Page 1 Operating Instructions Elmasonic EASY Ultrasonic Cleaning Units english Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 (0)7731 / 882-0 Fax +49 (0)7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com document ref. 107 5552...
-
Page 2: Table Of Contents
Degassing of liquid..........18 Ultrasonic cleaning process ........19 Heating up of the cleaning liquid (units with heating) ..........20 Starting the cleaning process manually ....21 Sweep function ............21 Pulse Mode .............22 After the cleaning ............22 BA_Elmasonic EASY_EN_Vers. 03.2016 © Elma Schmidbauer GmbH... - Page 3 Maintenance / Care ..........27 Service life of the transducer tank ......28 Repair ..............28 Technical Details ........... 29 Troubleshooting ............. 30 Putting out of action and waste disposal ....32 Manufacturer's contact address ......32 © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016...
-
Page 4: General
Caution The signal word Caution warns of the risk of light injury or damage to the equipment. Attention The signal word Attention warns of the risk of damage to the equipment. BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 5: Instructions For The Use Of The Unit
Instructions for the use of the unit The present Elma ultrasonic cleaning unit has been designed Intended use for the treatment of items and liquids only. No cleaning of living beings or plants! User Operation of the unit by authorized and instructed staff only. -
Page 6: Intended Use As Medical Device
The service intervals and regional regulations for checking the equipment must be complied with. Safety instructions on the machine This symbol warns about the risk of injury from hot surfaces and liquids. BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 7: Functioning
Cleaning media For saponification and removal of the dirt particles a suitable cleaning agent is required. Elma has a large range of cleaning media on offer. Cleaning chemicals are also necessary to reduce the surface tension. -
Page 8: Product Description
Protection against unintended restart, e.g. after automatic safety shutdown or power failure CE conformity This Elma ultrasonic cleaner meets the requirements for the CE marking based on the EC/EU Low Voltage, Electromagnetic Compatibility (EMC) and RoHS Directives. Some models are also registered as medical devices. -
Page 9: Delivered Equipment
Turning knob for the draining of the tank (from Elmasonic EASY 60 H) functional description see section 4.7. Operating panel for the control of the operating functions. Description see section 4.8 and 0. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 10: Unit Back View
Mains supply socket for quick and easy removal of the mains cable e.g. for transportation purposes Turning knob for draining the tank (from EASY 60 H) Illustration 4.7 View turning knob for draining the tank Vertical position: drain open Horizontal position: drain shut BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 11: Description Of Operating Elements
Heater operation LED indicator for machines with heater, lights when the heater is active. Fault indicator (flashes - see chapter 11) * setting the preselection: turn clockwise reset of the preselection: turn anticlockwise © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 12: Description Of Led Indicators
BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 13: Operating And Display Functions
Press Start/Stop button briefly Switch on heater Heater rotary switch Heater LED indicator lights until setpoint not in "0" position temperature is reached, then extinguishes Cleaning time rotary switch ≠ "OFF" © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... - Page 14 3 seconds, switching off the then goes out machine) Heater rotary switch = desired temperature limit Press Start/Stop button and keep pressed (> 2 seconds) BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH...
-
Page 15: Initial Operation
(see illustration 5.1.2). The plastic thread is self-sealing when the socket has been screwed in by hand as far as possible. Note: Unscrewing the tube socket (anti-clockwise) can cause a leak of the thread. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 16: Connecting The Unit To The Mains
Ensure that the values indicated on the nameplate of the unit correspond with the available connecting conditions. The mains plug must be connected to an easily accessible socket only, as it serves as interrupted device! BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 17: Putting Unit Into Operation
8.2. For queries please contact the manufacturer or your supplier. Danger of damage to the transducer system! CAUTION Fill no liquid > 60 °C and < 10 °C in the ultrasonic tank. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 18: Placement Of Cleaning Items
Ultrasound button Degas the fesh cleaning liquid for approx. 5 - 10 minutes. BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 19: Ultrasonic Cleaning Process
For the cleaning of temperature-sensitive items please take into consideration the heating-up of the cleaning liquid. Please observe that the temperature of the cleaning media remains below 42 °C when cleaning parts contaminated with fresh protein or blood. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 20: Heating Up Of The Cleaning Liquid (Units With Heating)
We recommend not to exceed a temperature of 80°C inside the tank. For the recommended cleaning temperature please observe the product information of the used elma clean cleaner. High temperatures! Risk of burning and scalding! Cleaning liquid, cleaning tank, casing, cover, basket and CAUTION cleaning items can heat up considerably. -
Page 21: Starting The Cleaning Process Manually
Elmasonic EASY machines are also equipped with an automatic Sweep function. How it Works Homogeneous irradiation in the cleaning tank is reached by constant shifting of the maximum zones of the sound pressure. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 22: Pulse Mode
Certain residues and types of contamination may destroy or damage the stainless steel tank. Use the quick-drain duct to drain the cleaning tank (see section 4.7). BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 23: Cleaning Media
(Clˉ) or bromide (Brˉ) ions can be taken in by the removed dirt or through the cleaning chemical. These can destroy the stainless-steel tank by crevice corrosion within a very short period of ultrasonic operation. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 24: List Of Recommended Cleaning Media
For queries please contact the manufacturer or your supplier. List of recommended cleaning media Elma has a large range of suitable cleaning products on offer developed by chemical engineers in the Elma laboratory. Please contact your supplier to find the most suitable cleaning chemical for your application. -
Page 25: Dental
Acid cleaning concentrate for instruments made of stainless steel, glass and plastic. Removes corrosion, rust films and mineral deposits. 8.3.3 Optics elma opto clean Cleaning concentrate for glasses, frames, optical lenses and components. Also suitable for plastics. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 26: Laboratory
Cleaning media 8.3.4 Laboratory elma lab clean S10 Acid cleaning concentrate for glass, ceramics, metal incl. light and non-ferrous heavy metals, plastic. Removes mineral deposits, lime, lime soap and non-ferrous heavy metal oxides, mineral grease and oil. elma lab clean S20 Strong acid cleaning concentrate for stainless steel, glass and plastic. -
Page 27: Industry And Workshop
Lime deposits on the stainless-steel tank can be cleaned gently Care of transducer e.g. with elma clean 40 or elma clean 115C (operate the unit tank with concentrate + water). Check regularly the grid of the air fan at the bottom of the unit Grid of air fan (not existent in all units). -
Page 28: Service Life Of The Transducer Tank
The manufacturer cannot be held responsible for any damage caused by unauthorised maintenance or repair works on the unit. In the case of a break-down of the unit, please contact the manufacturer or your supplier. BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... -
Page 29: Technical Details
The selection of the signal form has been adapted to the bath geometry. Due to the signal form, the quadruple or octuple value is produced for the maximum peak value of the ultrasound power. © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016... -
Page 30: Troubleshooting
Possibly no or unsuitable Use appropriate cleaning satisfactory cleaning agent agent Cleaning temperature may not Heat cleaning liquid be optimal Cleaning time may be too Repeat cleaning interval short BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH... - Page 31 LED indicators pause, flashes, flashes, flashes, temperature sensor defective pause… LED indicators pause, flashes, flashes, flashes, ultrasound power too low flashes, pause… LED indictors pause, flashes, flashes, flashes, unknown program error flashes, flashes, pause… © Elma Schmidbauer GmbH BA_Elmasonic EASY_EN_Vers. 03.2016...
-
Page 32: Putting Out Of Action And Waste Disposal
Do you have any queries or suggestions concerning the present unit, its operation or the Operating Instructions? Please contact us, we will be glad to assist: Technical Support Tel +49 (0) 7731 / 882-280 Fax +49 (0) 7731 / 882-253 support@elma-ultrasonic.com BA_Elmasonic EASY_EN_Vers. 03.2016. © Elma Schmidbauer GmbH...
