Summary of Contents for Xplore ORX
- Page 1 USER’S MANUAL MADE IN FRANCE BY 09/11/2018...
-
Page 2: Table Of Contents
Pairing a new coil — Page 10 Page 19 ELECTROMAGNETIC RADIO WAVES — Save a coil into the list — Page 10 Page 20 ACCESSORIES — Delete coil from the list — Page 10 Page 21 FACTORY PROGRAMS — ORX STARTING UP — BACK... -
Page 3: Technical Introduction
The ORX has been designed and manufactured in France. The ORX is innovative in terms of metal detector design as it offers an unique system based on different wireless elements communicating via a digital radio link. In this new design the coil and remote control have been made independent of each other through the integration of very compact high-capacity lithium batteries. - Page 4 ASSEMBLY HF COILS / REMOTE CONTROL...
-
Page 5: Factory Programs
FACTORY PROGRAMS # 1 - GOLD For low / average mineralisation, good sensitivity to medium and large sized Gold. # 2 - FINE GOLD For heavy mineralisation / with good sensitivity to small and medium sized Gold. For coins and all types of targets good performance on mineralised or contaminated ground. # 3 - COIN FAST # 4 - COIND DEEP For coins and all types of targets good performance on low mineralised / uncontaminated ground. -
Page 6: Menu
SENS Sensitivity is often described as the setting which adjusts the device’s power FREQUENCY level. Increased sensitivity levels can enable the ORX to detect deeper targets REACTIVITY but may cause an unstable operation.The most commonly used sensitivity levels range from 50 to 80. It may be necessary to reduce the level if there is too much interference. -
Page 7: Discrimination Iar (Gold Field)
This is also known as Recovery speed. If the soil contains a great deal of iron, hot rocks or other mineralised debris, soil penetration is generally reduced. The ORX enables you to select a high degree of reactivity which will help you speed up the analysis of signals. However if the ground is "clean", it is better to reduce the Reactivity and sweep slower. -
Page 8: Ground
GROUND General features Different levels of soil mineralisation can affect the performance of your detector. For example, this may be due to natural magnetic mineralisation such as iron oxide, hot rocks and magnetite, or sporadic mineralisation from sites of ancient habitation. Other magnetic items include: hearths, pottery, hot rocks, slag, etc. - Page 9 On the controller, press the “ Ground Balance” button once briefly 6 inch 15 cm while pumping the coil to the ground. The ORX will grab and calibrate 1- GOLD 27800 HZ GND LEVEL the current ground value and stabilise your ORX. The number on the...
-
Page 10: Configuration
Select your laguage. GO TERRAIN GO TERRAIN is an application for IOS or Android smartphones, designed to optimize your ORX experience. Key features are : Geo-locate, a real time map and the ability to make an inventory of your finds (More information on our website available coming soon). -

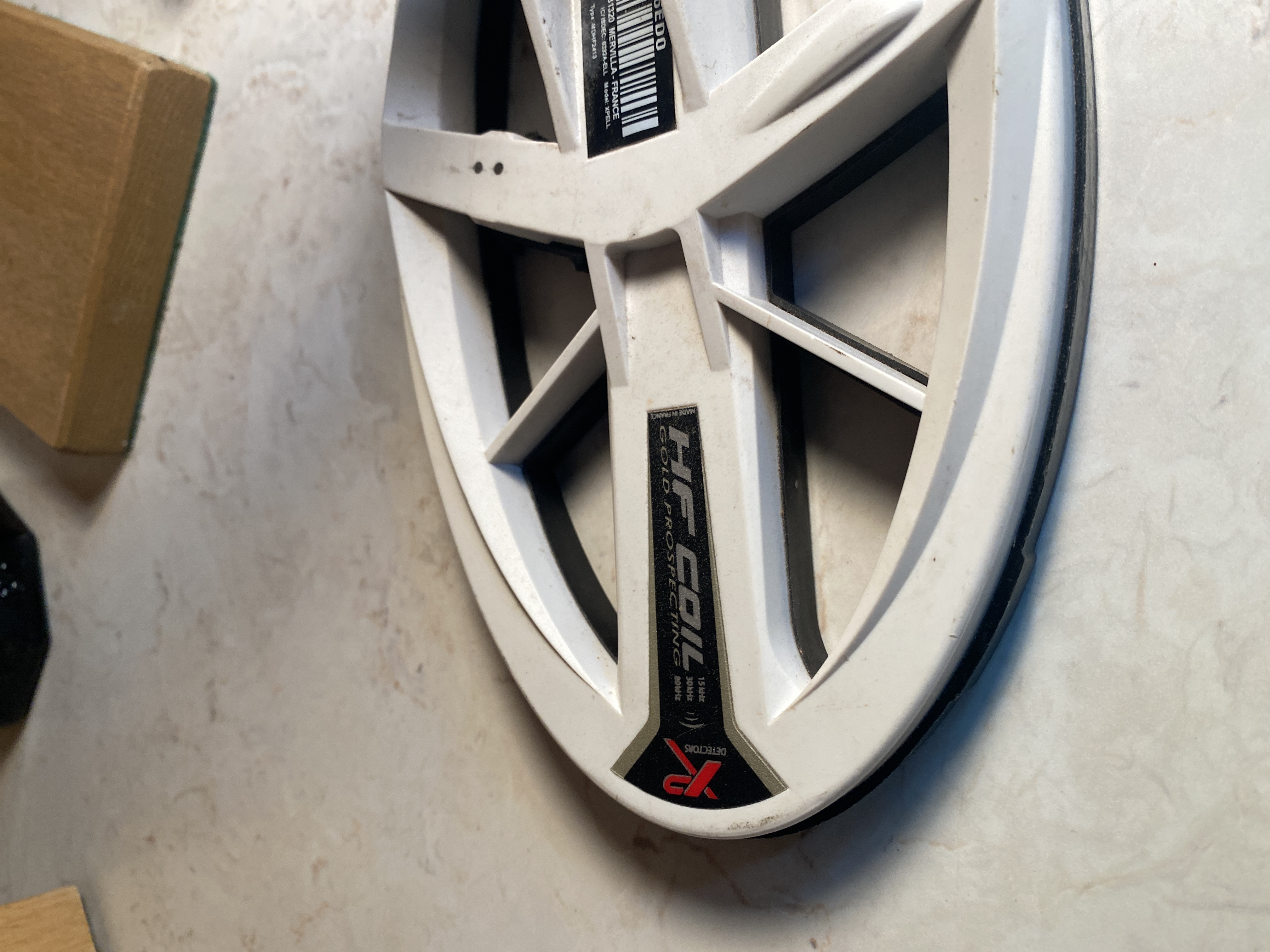

Page 11: Coils
If you purchase an additional coil you need to pair it. Enter the coil serial number into the remote control to communicate with the ORX. The serial number is printed on the coil and on the invoice. Follow the following steps:... -
Page 12: Functions
SELECT Once paired the MI-6 will operate with the DEUS. When pairing, the MI-6 automatically switches to program 7 (ORX / DEUS). This program will only work with the ORX. Program 7 will not generate any sound or vibration. Un pair the MI-6 from the ORX... -
Page 13: Extended Functions
OPTION THE MI-6 - EXTENDED FUNCTIONS Sensitivity The MI-6 has 50 levels of sensitivity via the remote control. CONFIGURATION SENS Press To adjust the sensitivity levels via the remote control. TONE AUDIO For precise object location, low sensitivity levels, such as prog 1 and 2, are recommended. -
Page 14: Power Supply-Batteries
POWER SUPPLY-BATTERIES USB CHARGER (not included) The ORX can be charged using any standard USB 5V certified charger with a minimum capacity of 1A and 5V output. 1A 5V USB charger is enough to charge the 3 elements together (coil/remote/headphone). A computer USB output is also suitable and can charge 1 or 2 elements at a time (eg : coil + remote). -
Page 15: Battery Status
POWER SUPPLY-BATTERIES BATTERY STATUS The REMOTE CONTROL alternately displays : 1- GOLD 27800 HZ The symbol which indicates the remote control’s charge level. GND LEVEL GND BALANCE GND MEASURE The symbol which indicates the coil’s charge level. 100% charged 60% charged 30% charged BATTERY LIFE WSA: 15 hours... -
Page 16: Pratical Information
POWER SUPPLY-BATTERIES Batteries - The batteries are fitted with internal protection systems which shield them from extreme overloads and discharges. They must not be dismantled or short-circuited, which is dangerous. - Do not leave batteries charging unnecessarily. - If you notice any perforation, odour or other anomaly, please take the battery to a designated collection point. -
Page 17: Troubleshooting And Solutions
TROUBLESHOOTING You become aware of abnormal performance, instability, false signals, interference, for no apparent reason CAUSES SOLUTIONS Sensitivity is too high. Lower it (pg 05). You are in a zone with a lot of interference Lower the sensitivity change frequency/ (high-voltage power lines, electric transformer, electric fence). -
Page 18: Spare Parts
Réf: D087 LCD - Réf: D094WS D088 Bottom part Battery- Réf: D089 Speaker- Réf: ORX STEM ( REF: D044LITE) / COILS / etc... Elliptical coil Réf: DELLHF Charge cable Réf: DCUSB3 Securing kit for search coil Elliptical coil cover Réf: D038HF Réf: ELPCOILCOV... -
Page 19: Specifications
SPECIFICATIONS Radio Link — Digital wireless Channels — 36 automatic channels Radio Frequencies and Radio power — 2.4GHz / ~ 0.56mW Settings Detection Frequencies — 22cm / 9’’ HF COIL: 15 / 28 / 54 kHz + shift Elliptical HF COIL: 15 / 28 / 80 kHz + shift X35 coil : 4 / 8 / 12 / 18 / 25 kHz + shift Sensitivity —... -
Page 20: Recommandations / Law
PRECAUTION FOR USE CERTIFICATION IC ORX is a precision device, designed to be as robust as possible. Despite this, it is This device contains licence-exempt transmitter(s)/receiver(s) that comply with important to take care of it and exercise certain precautions in order to prolong its Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). -
Page 21: Accessories
ACCESSORIES Coil X35 Coil X35 Coil X35 22.5 cm - 9’’ 28 cm - 11‘’ 34 x 28 cm - 13’’x11’’ HF coil elliptical HF Coil 24 x 13 cm - 10’’x 5’’ 22.5 cm - 9’’ Pinpointer MI-6 Pinpointer MI-4 MI-4 / MI-6 Stem support (Fin 2018) Kits: Waterproof armband 5m... -
Page 22: Factory Programs
FACTORY PROGRAMS... - Page 24 ORX QUICK START 1- GOLD 27800 HZ 15 cm GND LEVEL GND BALANCE GND MEASURE Press once to grab the Wait a few seconds. Validate or not the use Switch on the remote. ground value while of the loudspeaker. to switch off press for 2 sec...
