Page 1: Table Of Contents

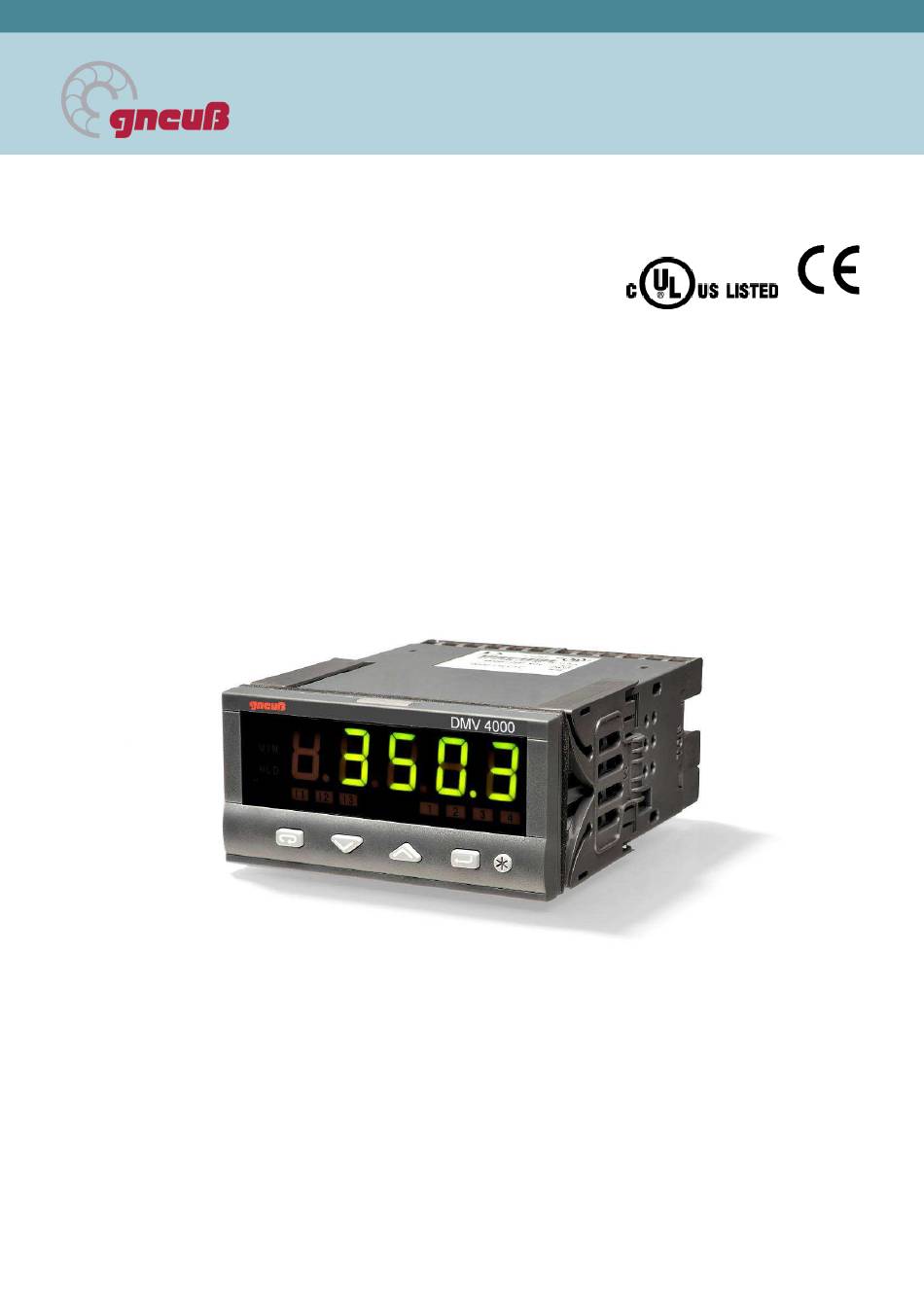

Pressure Measurement Amplifier DMV 4000 Page 1 of 15 Certified according to ISO 9001:2000 Operating instructions Pressure Measurement Amplifier DMV 4000 Contents: 1. General description Display and operating elements 2. Technical details Programme access / barring 3. Assembly Commissioning 4. Commissioning Electrical connections Additional function 5.
Page 2: General Description
Page 2 of 15 1. General Description: The Gneuss pressure measurement amplifier type DMV 4000 is a measurement amplifier for pressure transducers with strain gauge technology. Universal setting possibilities guarantee that all pressure transducers with 1 to 4 mV output signal can be connected. Furthermore, three freely-adjustable limit contacts and one optional analogue signal 0-10 V, 0-20 mA or 4-20 mA can be processed.
Page 3: Assembly
Pressure Measurement Amplifier DMV 4000 Page 3 of 15 Assembly: The instrument is designed for panel assembly. It is to be assembled in such a manner, as to protect it from humidity, dirt and vibration. The ambient temperature is not to exceed 50 ° C.
Page 4 Pressure Measurement Amplifier DMV 4000 Page 4 of 15 Wiring configuration: Colour coding and termination of Gneuß extension cable Pressure sensor Colour Function DMV 4000 (6P) terminal Yellow Signal + White Signal - Brown Supply + Green Supply - Pink Cal.
Page 5: Adjustment Possibilities
Pressure Measurement Amplifier DMV 4000 Page 5 of 15 5. Adjustment possibilities: The following table lists the possibilities of parameter changes conf conf conf conf Configuration menu Code I Configuration menu password Input Range pass pass pass pass base.c base.c base.c...
Page 6 Pressure Measurement Amplifier DMV 4000 Page 6 of 15 Parameter setting menu pass pass pass pass Code 2 Parameter menu password Input Range AL. SP AL. SP AL. SP AL. SP Alarm Setpoint 1 0...high range AL.1SP AL.1SP AL.1SP AL.1SP AL.2SP...
Page 7 Pressure Measurement Amplifier DMV 4000 Page 7 of 15 Explanation of parameters: A1t.u A1t.u A1t.u A1t.u activate or deactivate the cycle of measuring units in operating mode.= Pass Pass Pass Pass Password input for appropriate level base base..c c c c Z[ FREQ FREQ Adjusting the net frequency of the supply voltage.
Page 8 Pressure Measurement Amplifier DMV 4000 Page 8 of 15 10 (%) of 500 bar = 5 bar AL.1 d Adjustment of time delay (Sec. trail) for Alarm 1 AL AL Z[=AL AL.2 d Adjustment of time delay (Sec. trail) for Alarm 2...
Page 9: Display And Operating Elements
Pressure Measurement Amplifier DMV 4000 Page 9 of 15 6.Display and operating elements: Display Alarm Digital Inputs outputs Alarm- Menu/Selector acknowledgement button Increase /decrease values Confirmation button Button functions and combinations: Selects between calibration, parameter and configuration level. By selecting within the...
Page 10: Commissioning
Listed below is a step-by-step breakdown for start-up and commissioning purposes. In order to warrant an exact measurement, the connected pressure sensor needs to be calibrated in conjunction with the DMV 4000. During the calibration procedure, the pressure sensor must be at operating temperature and not subjected to any pressure influences.
Page 11 Adjustment levels (see Tables on pages 5 and 6). By repeatedly activating the button the DMV 4000 switches from operating mode to calibration mode alternatively to Parameter mode (Par) and to configuration mode (Conf). On pushing again the instrument is set back to operating mode.
Page 12 Pressure Measurement Amplifier DMV 4000 Page 12 of 15 Configuration mode (Conf Conf Conf) Conf Is divided up as follows: Basic configuration: Adjusting the supply frequency Input configuration: Adjusting the measuring values, commas and input values Configuration of analogue outputs: Adjusting the analogue output signals...
Page 13 Pressure Measurement Amplifier DMV 4000 Page 13 of 15 Parameter levels (PAR) Is divided up as follows: Alarm set-points: Adjusting the separate alarm contacts 1 - 3 Alarm parameter menu: Adjusting the hysteresis and delay times of alarms 1 - 3...
Page 14: Additional Function
9.Additional function: Peak hold: During normal operation of the DMV 4000 the internal peak hold can be evaluated and deleted. The highest and lowest point of the pressure range this function allows pressure spikes to be registered. After switching on the unit this function is constantly repeated.
Page 15: Error Reading
Pressure Measurement Amplifier DMV 4000 Page 15 of 15 10. Error reading: Display: Reason: Error elimination: OPEn OPEn OPEn OPEn " " Sensor defect, connector cable defect Sensor, connector cable Sensor incorrectly connected and Sensor connection to be checked "...
