MT90
Applications & Manual Guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unico MT90

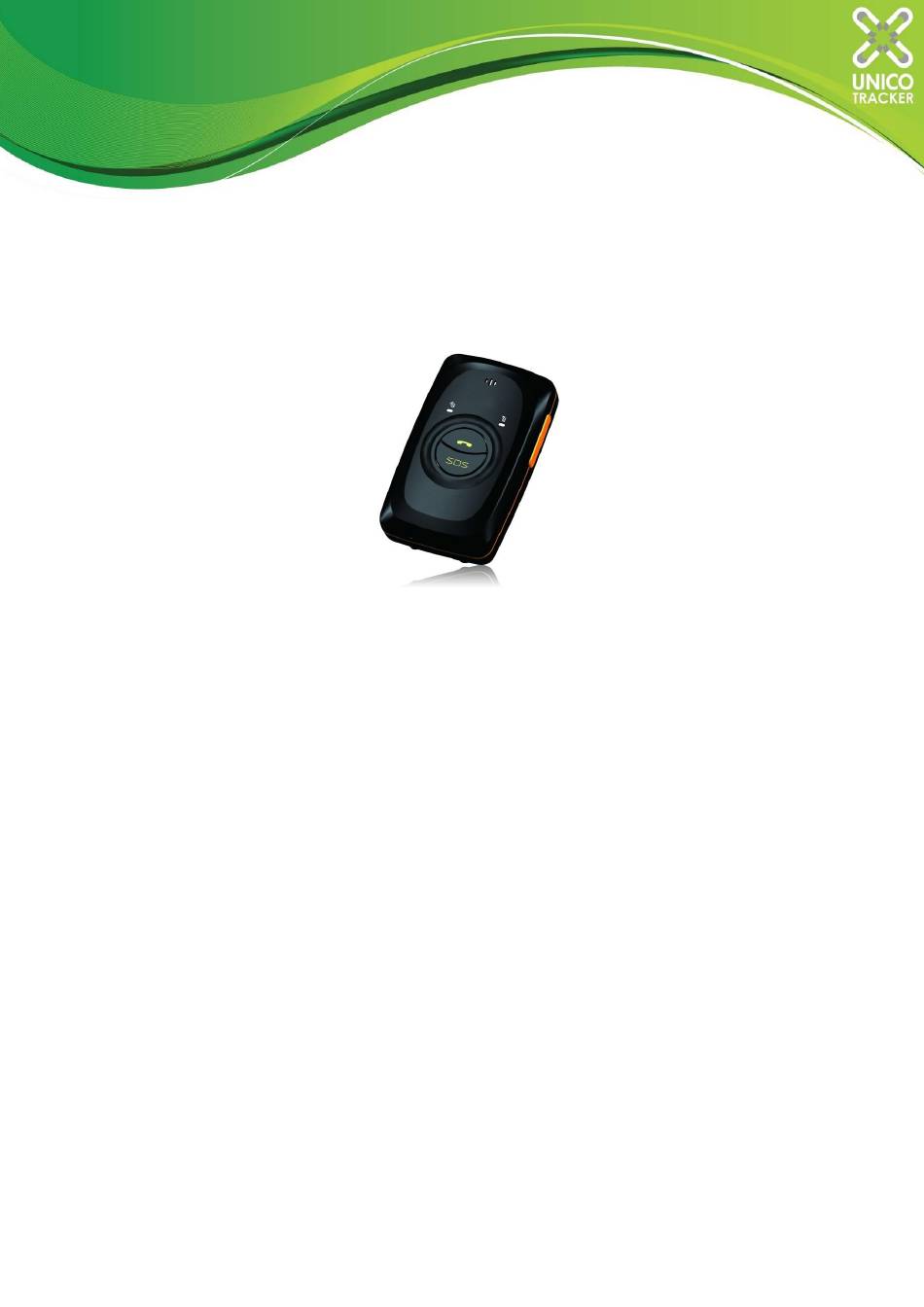

  • Page 1 MT90 Applications & Manual Guide Version 1.0...

  • Page 2: Table Of Contents

    HEALTH & SAFETY PRECAUTIONS .............. 2 2.1. Battery Leakage ................... 2 2.2. Radio Frequency Interference ..............2 2.3. Hardware Precautions / Maintenance ............3 MT90 AND ACCESSORIES ................3 3.1. View and Buttons ..................4 3.2. LED Indications .................... 5 3.3. First Use ....................... 5 QUICK OPERATION INSTRUCTION .............

  • Page 3: Product Overview

    GPS location fix even in remote places with AGPS Module embedded into the set. Through GPS and GSM or GPRS communications, MT90 can get its position and send the position data back to your mobile phone or server to be displayed on maps.

  • Page 4: Specifications

    2. Health & Safety Precautions 2.1. Battery Leakage The MT90 contains a rechargeable lithium ion battery pack. Leakage of ingredients contained within the battery pack, or the combustion products of the ingredients, can cause personal injury as well as damage to your MT90.

  • Page 5: Hardware Precautions / Maintenance

    Contacts) for further instructions on battery replacement and possible service to your tracker.  When using AC adapter, make sure you are using the correct model specified for your MT90. Always unplug the AC Adapter from the wall outlet when not in use. ...

  • Page 6: View And Buttons

    MT90 will send an SMS to the preauthorized phone number and send GPRS message to the server if GPRS function is enabled.  Press to wake up if MT90 is in sleep mode. Microphone It will run automatically when using listen-in and call functions.

  • Page 7: Led Indications

    For connecting lanyard. Battery Cover Install the battery, SIM card and Micro SD card by removing the battery cover. 3.2. LED Indications Long press the switch for 2 seconds to turn on/off MT90. GPS LED (Blue) Charging Flashing (every 5 secs.) Sleeping...
  • Page 8 Insert the SIM Card Place the SIM card into the device with the gold-colored side facing down. Note: make sure there is enough credit on the SIM card. It is also important that the SIM card has Called ID Display function. If you will use GPRS function, you should pay attention to the current SIM card GPRS charge.

  • Page 9: Quick Operation Instruction

    This location-tracking for knowing the current location of MT90, to ensure normal function of the GPS signal.  Call the SIM card number embedded in MT90, hang up till the dial sound 2-3 times, as follows: If your phone does not support direct access, you can enter longitude and latitude to the URL...

  • Page 10: Sos - A71

    IMEI,A71,OK Prompts successful, successfully set SOS emergency communications number. When you press the SOS emergency button, MT90 will dial 3 preauthorized phone numbers. It will stop dialing when one number answers. Note: the default value is empty. The function numbers should be added “,” to avoid setting failure.

  • Page 11: Smart Sleep Mode - A73

    SOS/any triggered by the button/input/incoming calls/message. After that, it will repeat above processes. Note: MT90 can enter sleep mode under movement , and movement can't wake MT90 from sleep mode. In any condition, the device will directly quit the sleep mode and back to normal working mode by SMS or GPRS command to turn off the sleep mode.

  • Page 12: More Settings

    Note: this value is your MT90’s IMEI number. The device will send this data automatically and these numbers don’t represent anything significant to the functionality of the tracker. Below the same applies. 4.6. More Settings You can configure MT90 by mobile phone or by computer using the Meitrack Manager to Setting Multiple Software.
  • Page 13 Run “Meitrack Manager.exe”, it will detect Comm port and read all MT90’s parameters automatically:...

  • Page 14: Sms Tracking

    Report to authorized phone number when SOS button is pressed. SMS header defaulted as “SOS”. Low Battery Alarm Report when MT90 speeds higher than the preset value. SMS header defaulted as “Speeding”. GPS Blind Area Enter alarm: report when MT90 enters GPS blind area. SMS header ...

  • Page 15: Gprs Tracking

    Enter alarm: report when MT90 enters geo-fence. SMS header defaulted as “Enter GEO”.  Exit alarm: report when MT90 exits geo-fence. SMS header defaulted as “Exit GEO”.  Add new: set radius latitude and longitude, or draw geo-fence on map directly in circle.
  • Page 16 Max time interval = 65535 * 10 secs. GPRS Report Times = 0, no limit, unlimited times for report. = [1,65535], set report times, MT90 will stop reporting when reaching the preset times. Note: GPRS upload interval is default as 60 seconds.

  • Page 17: Using Sms Command

    6. Using SMS Command NOTE: **** is user’s password and the default password is 0000. The tracker will only accept SMS commands from a user with correct password. SMS commands with wrong password will be ignored. Password is in 4 digits. Description SMS Command Example...
  • Page 18 Description SMS Command Example Initialization ****,F11 0000,F11 Function: To reset all the setting (except for the password) back to factory default. SMS Response: TrackerID,F11,OK Reset Password 8888,FAB 8888FAB Function: To reset password back to default factory password. Only authorized phone number is authorized to send the command.
  • Page 19 Description SMS Command Example Add New SMS Event to Authorize ****,B02,P,E 0000,B02,1,17 Phone Number Function: To add new SMS event report to an authorized phone number P = 1, first authorized phone number. P = 2, second authorized phone number. P = 3, third authorized phone number.
  • Page 20 Delete Geo-fence ****,B06,X 0000,B06,1 Alert Function: To delete a set of Geo fence alert. SMS Response: TrackerID,B06,OK X = 1 to 8 Waypoint. Speeding Alert ****,B07,X 0000,B07,80 Function: To set a SMS alert when the tracker exceeds the preset speed limit. SMS Response: TrackerID,B07,OK X = Preset Speed limit.
  • Page 21 Function: Tracker default time zone is GMT. You may use this command to correct the time that for SMS reporting. SMS Response: TrackerID,B35,OK X = to set time difference in minute to GMT If time is ahead of GMT, input the time difference in minute directly. E.g. 0000,B35,120 If time is behind of GMT, ‘-’...

  • Page 22: Tracking

    7. Tracking 7.1. Track by SMS Description SMS Command Example Track on Demand - ****,A00 0000,A00 Summarised Function: Tracker sends SMS location report to the mobile phone number that sent the SMS command. Track on Demand ****,A01 0000,A01 – Google Link Function: Tracker sends SMS location report with an http link.
  • Page 23 Google Earth: Google Maps:...

  • Page 24: Event Codes Table

    8. Event Codes Table Default SMS Event Default Default SMS Default Event Header Code GPRS Flag Flag Picture Flag (max 16 bytes) SOS/Input 1 Active (First authorized phone number only) Input 2 Active Input 3 Active Input 4 Active Input 5 Active SOS/Input 1 Inactive Input 2 Inactive Input 3 Inactive...

  • Page 25: Troubleshooting

    Press Input 2 to Call Default SMS Event Default Default SMS Default Event Header (max 16 Code GPRS Flag Flag Picture Flag bytes) Press Input 3 to Call Press Input 4 to Call Press Input 5 to Call Reject Incoming Call Call for SMS Location Report Auto Answer...

  • Page 26: Contacts

    & connectivity. Battery is low Recharge the tracker and the GPS will start working. 10. Contacts Technical support +65 6298 0571 Email support@unico.sg Corporate Sales +65 6298 0571 Email sales@unico.sg JustBuy (Show Room) +65 6339 2921 Unico Tracker Website www.unico.sg...

  • Page 27: Apns

    APNs Local Telecom APN - Prepaid APN - Postpaid Singtel hicard internet Starhub shppd shwap MobileOne miworldmcard sunsurf NOTE: APNs are provided by your Telecom Service Provider. Information in the table may change without prior notice. NOTE: If tracker is using overseas SIM card, it is required to change the APN provided by the abroad Telecom Service Provider.
