Summary of Contents for Basler daA2500-60mc-SD820-DB8

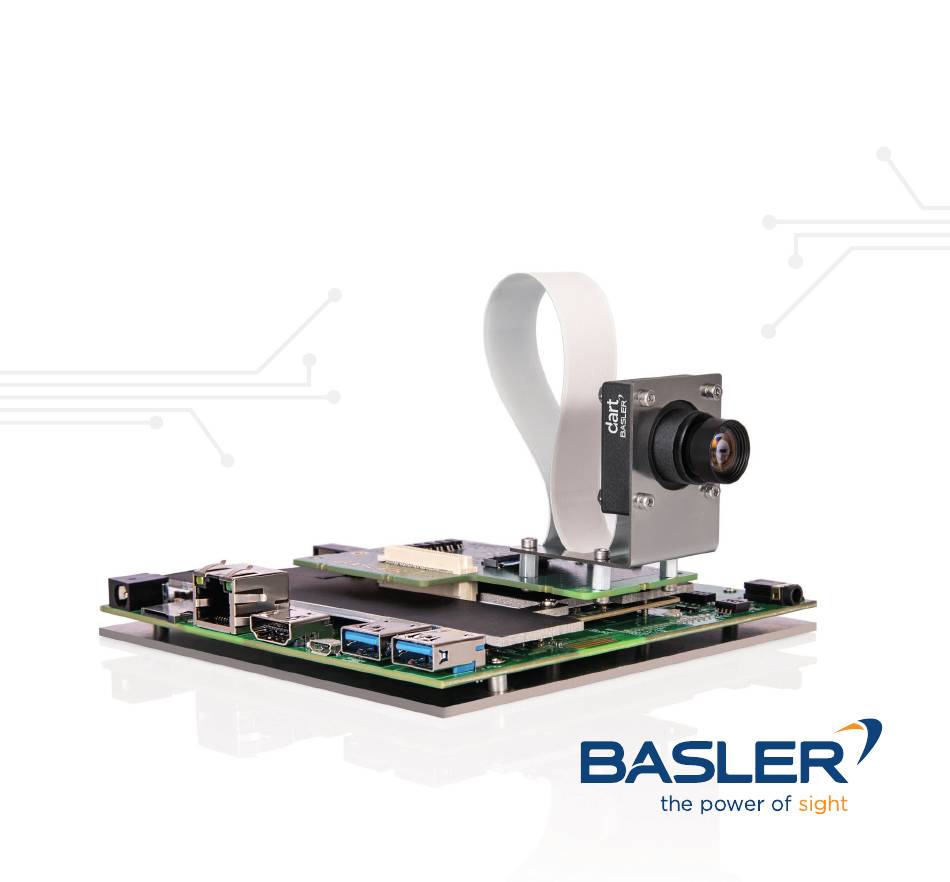

- Page 1 QUICK INSTALL GUIDE BASLER EMBEDDED VISION KIT daA2500-60mc-SD820-DB8...
- Page 2 Basler AG An der Strusbek 60–62 22926 Ahrensburg Germany All material in this publication is subject to change without notice and is copyright Basler AG.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ..........5 About this Document . - Page 4 TABLE OF CONTENTS SPECIFICATIONS ..........15 Camera Specifications .
-
Page 5: Introduction
About this Document This document provides information about how to install the daA2500- 60mc-SD820-DB8 Embedded Vision Kit. It also provides step-by-step instructions that help you acquire your first images with the included Basler dart BCON for MIPI camera. Target Audience... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS General Safety Notices DANGER Electric Shock Hazard: Unapproved power supplies may cause electric shock. Serious injury or death may occur. Only use the power supply delivered with the Embedded Vision Kit. Do not use other power supplies. WARNING Fire Hazard: Unapproved power supplies may cause fire and burns. - Page 7 Read the documentation carefully before using the Embedded Vision Kit. For safety instructions related to the operation of the Basler dart BCON for MIPI camera, refer to the Basler Product Documentation available at docs.baslerweb.com.
-
Page 8: Environmental Requirements
This Embedded Vision Kit is intended for indoor use at normal room temperature only. If you operate the Embedded Vision Kit at elevated temperatures or at high load, Basler recommends providing additional cooling, e.g., by installing a fan. For specific environmental requirements of the components, refer to the... -
Page 9: Delivered Parts
Evetar lens N118B05518W ƒ/1.8, f5.5 mm, 1/1.8" Developer Board 8 processing board Basler dart BCON for MIPI mezzanine board, pre-mounted on the processing board Flexible flat cable, 0.2 m USB 2.0 cable (A / Micro B), 1.8 m ... -
Page 10: Hardware Installation
S-mount lens Power button connectors Power LED (CAM PWR) Spacer bolt Mounting plate USB 3.0 ports USB 2.0 Processing port board HDMI port GigE Mezzanine board port microSD Power supply card slot port Fig. 1: daA2500-60mc-SD820-DB8 – Installed Hardware Components... -
Page 11: Installing The Embedded Vision Kit
HARDWARE INSTALLATION Installing the Embedded Vision Kit NOTICE Damage Hazard: Supplying power before the hardware installation is completed can damage camera and board components. Only connect the power supply to the mains socket after the hardware installation is completed. To install the Embedded Vision Kit (refer to Figure Attach four spacer bolts to the bottom of the mounting plate using four screws (M2x4) included in the mounting kit. - Page 12 HARDWARE INSTALLATION To insert the cable: Push the end of the cable firmly into the FFC connector with the ground tab facing down until the retaining tabs slide into the recesses on both sides. Flip the locking bar down to lock the FFC connector. Mount the mounting plate on the mezzanine board using four screws (M2x4).
-
Page 13: Acquiring Your First Images
ACQUIRING YOUR FIRST IMAGES ACQUIRING YOUR FIRST IMAGES To acquire your first images using the pylon Viewer: Make sure that you have completed the hardware installation procedure and that the processing board is booted up. If required, use the following credentials to log in: ... -
Page 14: Next Steps
Basler components only. To qualify for support, issues resulting from the use of Basler's reference design must be reproducible on the same unmodified setup. Off-the-shelf hardware, proprietary as well as open- source software from third-party suppliers that are contained in this Embedded Vision Kit are excluded from Basler's support services. -
Page 15: Specifications
SPECIFICATIONS SPECIFICATIONS Camera Specifications Basler dart daA2500-60mc (S-Mount) Resolution (H×V pixels) 2560 x 1920 Sensor Type AR0521, CMOS, Rolling Shutter Optical Size 1/2.5" Effective Sensor Diagonal 7.04 mm m x 2.2 μm μ Pixel Size (H x V) Max. Frame Rate... -
Page 16: Processing Board Specifications
Power Requirements Input voltage: 6.5–18 V Size (L x W) 125 mm x 125 mm x 15 mm Mezzanine Board Specifications Basler BCON for MIPI Mezzanine Board Interface BCON for MIPI (MIPI DPHY CSI-2) User I/Os 6 user I/Os Size (L x W x H) -
Page 17: Lens Specifications
SPECIFICATIONS Lens Specifications Evetar Lens N118B05518W Focal Length 5.5 mm Aperture ƒ/1.8 Lens Mount S-mount Iris Type Fixed IR Cut Filter Max. Image Circle 1/1.8" Working Distance 200 mm Power Supply Specifications Power Supply Power Requirements 100-240 V Output Rating 18 W, 12V @ 1.5 A United States / Canada / Japan (NEMA 1-15P config.) Plug Types... -
Page 18: Block Diagram Of The Mezzanine Board
SPECIFICATIONS Block Diagram of the Mezzanine Board Fig. 2: Block Diagram of the Mezzanine Board... -
Page 19: Disclaimer And Licensing Information
It does not fulfill the requirements for consumer use. Persons handling the product must have electronics training and observe good engineering practice standards. Basler does not assume any liability for the use of this Embedded Vision Kit in environments other than evaluation, engineering development, or demonstration and test environments. -
Page 20: Software Licensing
Please find the license terms and conditions of the applicable third-party licenses in the Software or contact Basler support. The Software provided by Basler includes some open-source software that may be used and modified by anyone and everyone, provided they, in turn, make the source code available to everyone else with the same licensing agreement. - Page 21 DISCLAIMER AND LICENSING INFORMATION...
- Page 23 For further information and support documents on Basler’s embedded vision portfolio please visit: www.baslerweb.com/embedded...
- Page 24 ©Basler AG, No. 0 , /201 ID AW001 0 000...
