Picture Hanging System
Installation Guide

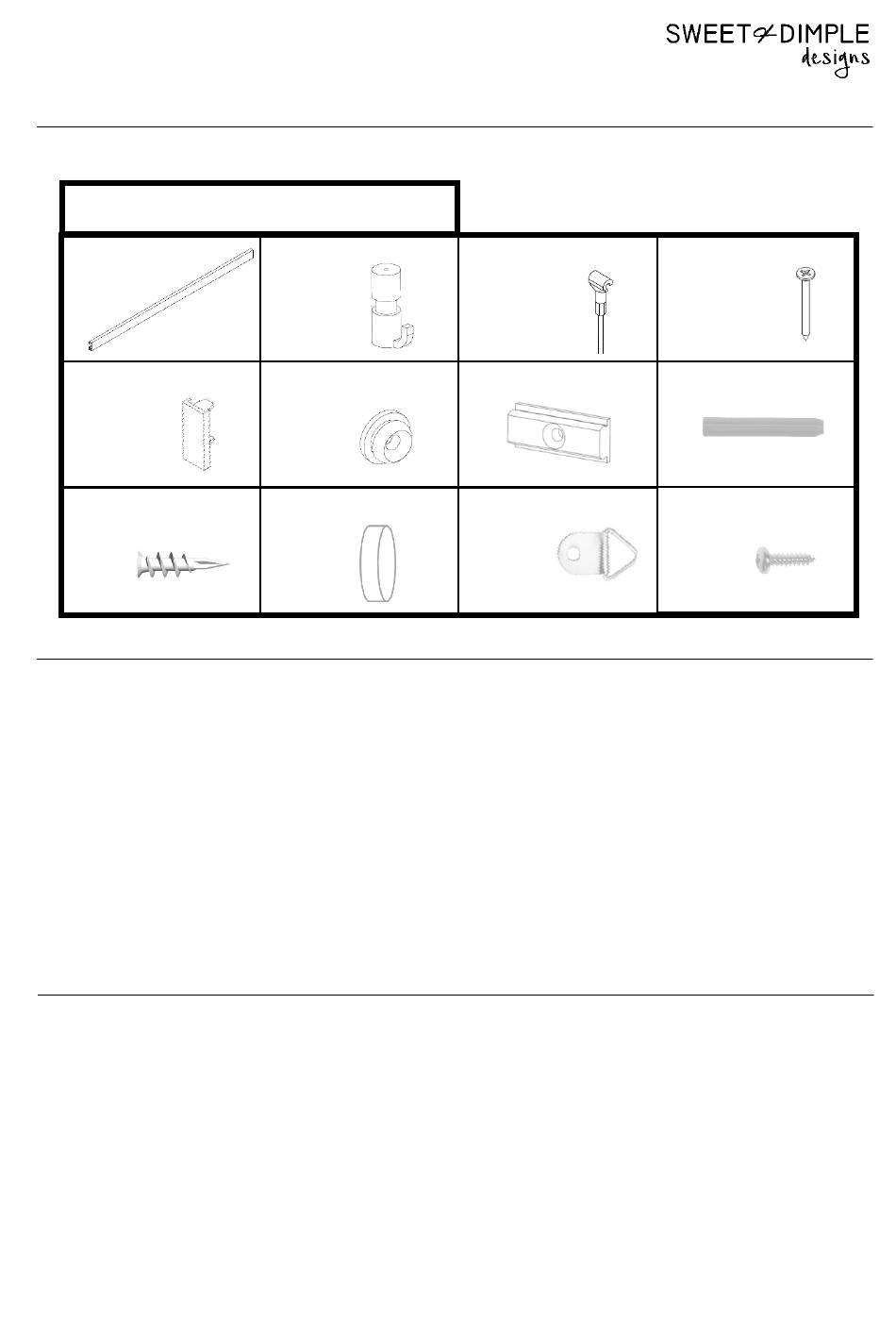

Each 60cm Picture Hanging System comes with the following items:
1x 60cm Track Set
Hanging Track
60cm Long
Hanging track
end cap
Gyprock wall plug
Note: Some items may not be used depending on your arrangement of picture hanging systems
Warning!
Maximum recommended picture load is 7kg per 60cm track section spread over two Hanging Cables.
Prior to marking and drilling mounting holes, ensure no plumbing, electrical or other hazards exist in the wall where the
system will be mounted. It is recommended to consult a qualified tradesperson for advice.
If mounting system to plaster board (Gyprock) wall, the plaster must be in good condition and free of deterioration.
The installer must determine suitability based on inspection.
Only skilled and competent persons should attempt to install the picture hanging system. Personal protective
equipment such as safety glasses, dust mask, and ear muffs is recommended for using power and hand tools.
Sweet and Dimple Designs will not be liable for any property damage or personal injury, due to incorrect installation or
use of the picture hanging system, including exceeding the maximum capacity as stated.
Tools required
Ruler
Pencil or pen
Soft hammer/mallet and clean cloth (to assemble track onto mounts)
Masonry wall:
Hammer drill
Ø3.5mm masonry drill (pilot)
Ø5.5mm masonry drill
Phillips screw driver #2 bit (or hand screw driver)
Ø5.0mm punch
Sweet and Dimple Designs - Picture Hanging System Installation Guide (Rev A)
Adjustable
Hook
x1
Round Mount
x2
Foam wall buffer
x2
Tape measure
Ladder
Hanging Cable
182cm Long
x2
Joiner Mount
x2
Picture D-Ring
x2
Level
Hammer
Plaster board (Gyprock) wall:
Electric drill
Ø4.0mm drill (pilot)
Phillips hand screw driver #2
Mounting
Screw
x2
Masonry wall plug
x1
D-Ring screws
x2
Page 1 of 8
x2
x2
x2
Advertisement
Table of Contents
Summary of Contents for Sweet and Dimple Designs Picture Hanging System
-
Page 1: Installation Guide
Sweet and Dimple Designs will not be liable for any property damage or personal injury, due to incorrect installation or use of the picture hanging system, including exceeding the maximum capacity as stated. - Page 2 Horizontal: 2 hole positions evenly spaced about centre of track location, 400mm apart Vertical: For standard ceiling heights featuring a cornice, it is recommended to offset hole positions no closer than 20mm to the cornice. This will result in discreet mounting of the picture hanging system. Cornice...
- Page 3 Compress top of hook to enable cable to feed through more easily. Step 7. Assemble Hanging Cable into track from below. Position hook in track and rotate into place. Sweet and Dimple Designs - Picture Hanging System Installation Guide (Rev A) Page 3 of 8...
- Page 4 (or attach to existing feature). It is not recommended to cut the excess cable, as this will limit your hanging layout options in the future. Sweet and Dimple Designs - Picture Hanging System Installation Guide (Rev A) Page 4 of 8...
- Page 5 Horizontal: 3 hole positions evenly spaced about centre of track location, 500mm apart Vertical: For standard ceiling heights featuring a cornice, it is recommended to offset hole positions no closer than 20mm to the cornice. This will result in discreet mounting of the picture hanging system. Cornice...
- Page 6 Align second track piece such that it touches the previously installed first piece, follow method above. Joiner Mount Assembly detail Step 6 through to 10 Refer to Single System guide notes Sweet and Dimple Designs - Picture Hanging System Installation Guide (Rev A) Page 6 of 8...
- Page 7 Horizontal: 4 hole positions spaced about centre of track location, offsets as per diagram. Vertical: For standard ceiling heights featuring a cornice, it is recommended to offset hole positions no closer than 20mm to the cornice. This will result in discreet mounting of the picture hanging system. Cornice...
- Page 8 Repeat the method above for the end track section. Joiner Mount Assembly detail Step 6 through to 10 Refer to Single System guide notes Sweet and Dimple Designs - Picture Hanging System Installation Guide (Rev A) Page 8 of 8...
