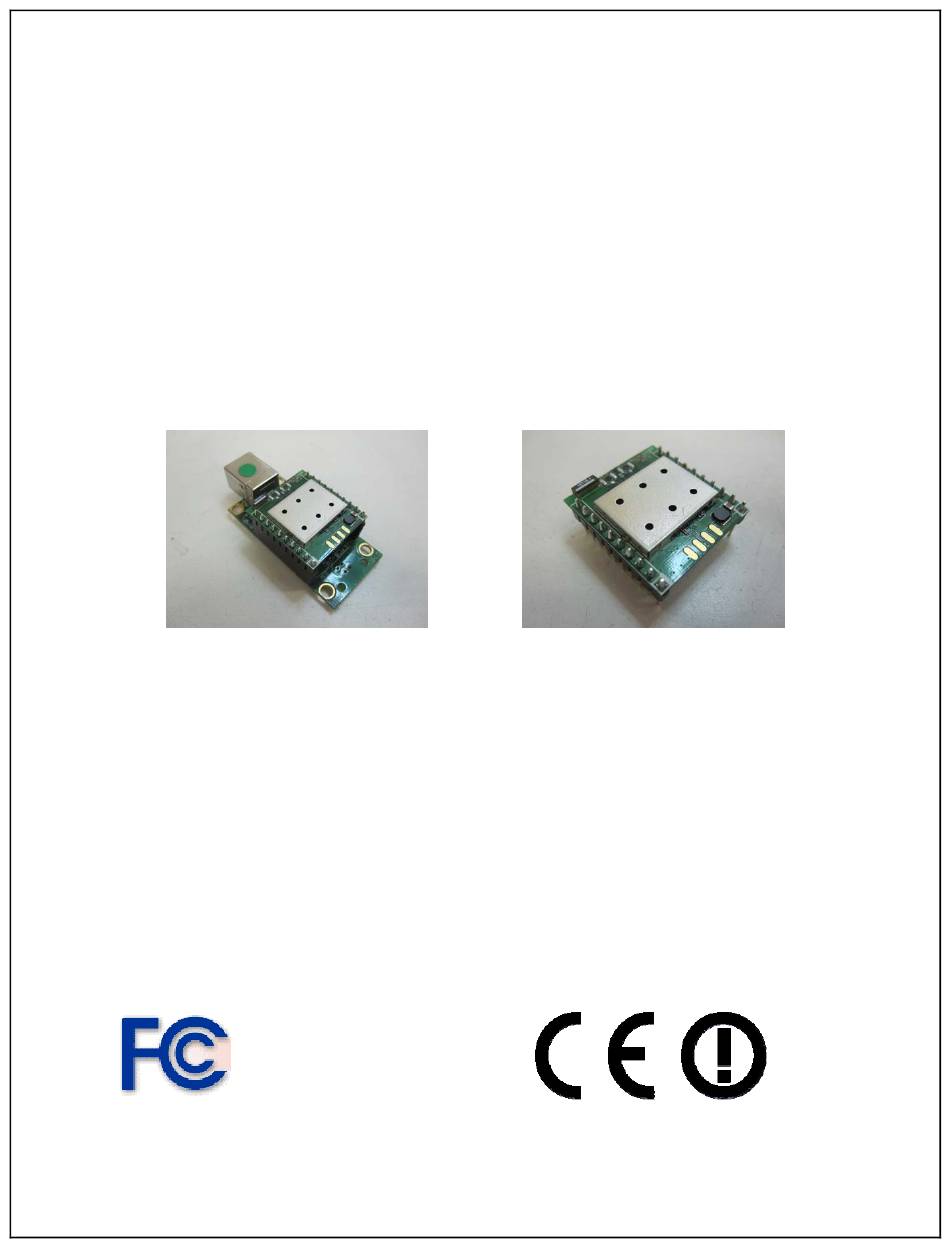

- Page 1 Radicom Research, Inc. Preliminary Designers Guide for the WiFiHU2-NE and WiFiHU2 RoHS Compliant USB WiFi Modules April 17, 2012...
-
Page 2: Table Of Contents
Radicom Research assumes no responsibility for its use, or any infringement of patents or other rights of third parties that may result from its use. Radicom Research reserves the right to change circuitry at any time without notice. This document is subject to change without notice. -
Page 3: Introduc Tion And Features
Introduction Thanks for purchasing Radicom Res earch’s USB WiFi Module. Radicom is committed to providing quality service and technical support in order to expedite the product development process. The WiFiHU2 Module requires only a USB (Universal Serial Bus) interface to add state of the art data WiFi wireless operation to any system. It is designed to fully support IEEE802.11n™... -
Page 4: Ratings And Block Diagram
provals • FCC Part 15: FCC OET 65 Supplement C (SA R), 47 CFR FCC Part 15 Subpart C 15.247, 47 CFR FCC Part 15 Subpart B 2009 (Class B) • IC RSS-10 2, IC ES-003 issue 4, IC RSS-210 issue 8:2010 •... -
Page 5: Model And Ordering Information
Model and Ordering Information This versatile WiFiHU2 USB fam ily of products offers various configuration options to meet the specific syst em requirements a designer may need to add sta te of the art WiFi USB operation. The WiFiHU2 is available as a module, a module with USB Jack and antennae interface, or as a complete external device in an enclosure. - Page 6 WiMDK-2001 Complete WiFiHU2 WiMDK-2001-a Kit for evelopment kits including odel WiFiHU2-a-1-NE WiFiHU2 module ins talled in Carrier Board with USB jac WiMDK-2001-c Kit for interface. All kits include 6ft odel WiFiHU2-c-1-NE USB cable, and CD with Designers Guide and Drivers. Antennas and Cables are also provided for external antenna...
-
Page 7: Connecting The Wifihu2 Or Wifihu2-Ne To Your System
USB Module m ounted onto a USB hub PCB (WiFiHU2-NE). To remove the WiFiHU2 carefully remove it from the two 8 pin headers on the WiFiHU2-NE USB interface board. Save this interface board. The WiFiHU2 can always be reinstalled into the WiFiHU2-NE USB interface board and connected to any standard USB port to verif or test the module functions. -
Page 8: Mechanical Specification And Pin Orientation For The Wifihu2
Mechanical Specification and Pin Orientation for the WiFiHU2 The WiFiHU2 USB Half Inch Modules are designed for easy connection to any standard SB interface and wireless network. The connection is made through two 8-pin headers, hich may be attached to your device via a socket or by individually hardwiring each pin. -
Page 9: M Echanical Specification ~ Wifihu2-C-1-Ne + Wifihu2-A-1-Ne
Mechanical Specification for the WiFiHU2-c-1-NE and WiFiHU2-a-1-NE... -
Page 10: Wifihu2 Usb Interface Pins
WiFiHU2 USB Interface Pins The following shows the I/O Pins required for adding the WiFiHU2 USB Module to your embedded system. PIN Number Name Type Not Used Not Used Ground VBUS USB Power DATA- Input / Output DATA+ Input / Output Not Used Not Used Not Used... -
Page 11: Additional Information On The Interface Signals
Additional Information on the Interface Signals Name Definition _____ Not used – No Connection can be used for mounting purposes GND – Ground – Connect this pin to the ground of the USB bus VBUS – This is the USB Power Connection. Connect this pin to VBUS *DATA (-) - Connect this pin to Data –... -
Page 12: Fcc, Ic, And Ce Label Location And Module Model Identification
FCC Part 15 ID, IC registration number and CE mark. The labe l ca n be found o n top of the metal shielding on the WiFiHU2 Module. dic m Research Inc. Radicom Research Inc. Model: WiFiHU2-a Model: WiFiHU2-c FCC ID: K7T-WIFIHU2 FCC ID: K7T- WIFIHU2... -
Page 13: Important Regulatory Compliance And User Information
Important Regulatory Compliance and User Information The final product with the modules installed needs to be tested for FCC Part 15, IC (Industry Canada) CE, EMI/RFI compliance. Radicom certification documentation will elp streamline the final product approval process. Contact Radicom for mo formation. - Page 14 Host (End Product) Labeling Requirements To maintain compliance, the end product hosting the WiFiHU2 module must be properly labeled to identify that this module is installed. This transmitter module is authorized only when used in devices where the antenna is installed such that 20 cm is maintained etween the antenna and users.
- Page 15 Canada Europe – R&TTE Compliance Statement: Hereby, Radicom Research Inc., declares that this equipment complies with the essential requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE).
-
Page 16: Ce Declaration Of Conformity
CE Declaration of Conformity For the following equipment: Radicom Research Inc. WiFi USB Modem Module Model(s): WiFiHU2-a, WiFiHU2-c, WiFiHU2-a-1-NE, WiFiHU2-c-1-NE is herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the... -
Page 17: Wifihu2 Regulatory Domain Frequencies
WiFiHU2 Regulatory Domain Frequencies e ch nel identifiers, channel center frequencies, and regulatory domains of each 22- MHz-wide channel are shown in following table. Regulatory Domains Model: Frequency WiFiHU2 (MHZ) North France Family Japan ETSI Israel Mexico America Outdoor 2412 ∨... -
Page 18: Driver Installation Guide For Windows Xp/2K
Driver Installation Guide For Windows XP Do not plug the WiFiHU2 module into USB port until the drivers are loaded. Insert the installation disc into CD-ROM. Open th e WiFiHU2 Drivers + Manual Folder. pen the WiFiHU2 Driver Folder. Open the Windows folder and select “Setup.exe”. Click Next. - Page 19 Windows will now restart. After the computer reboots, plug the WiFiHU2 in to a USB ort. Windows will briefly display “Found New Hardware” and autom atically load the drivers. Left Click the 5 red signal strength bars of the Realtek Icon in the Window system tray. The “Realtek Wireless LAN Utility”...
-
Page 20: Wifihu2 Usb Linux Driver Quick Installation Guide
The “LAN Utility” box will display the Signal Strength and Link Quality. The WiFiHU2 is now connected to the network. The signal strenghth bars in the Realtek Icon in the system tray should be green. WiFiHU2 USB Linux Driver Quick Installation Guide Software Package &... -
Page 21: Limited Warranty
Limited Warranty Warranty Coverage and Duration Radicom Research, Inc. (“RRI”) warrants to the original purchaser its RRI-manufactured products (“Product”) against defects in material and workmanship under normal use and service for a period of one year from the date of delivery. During the applicable warranty... - Page 22 What this Warranty does NOT Cover: ) Defects or damage resulting from use of the Product in other than its normal and customary manner. ) Defects or damage from misuse, accident or neglect. (c) Defects of damage from improper testing, operation, maintenance, installation, alteration, modification or adjustm ent.
-
Page 23: Contacting Radicom Research
Contacting Radicom Res earch If more information or technical support is needed, please contact us: 2148 Bering Drive San Jose, CA. 95131 Telephone: (408) 383 9006 Fax: (408) 383 9007 e-mail: sales@radi.com http://www.radi.com/... - Page 24 Warning Federal Communications Commission Statement Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
