Summary of Contents for Digital Multimedia Technology DC10HD

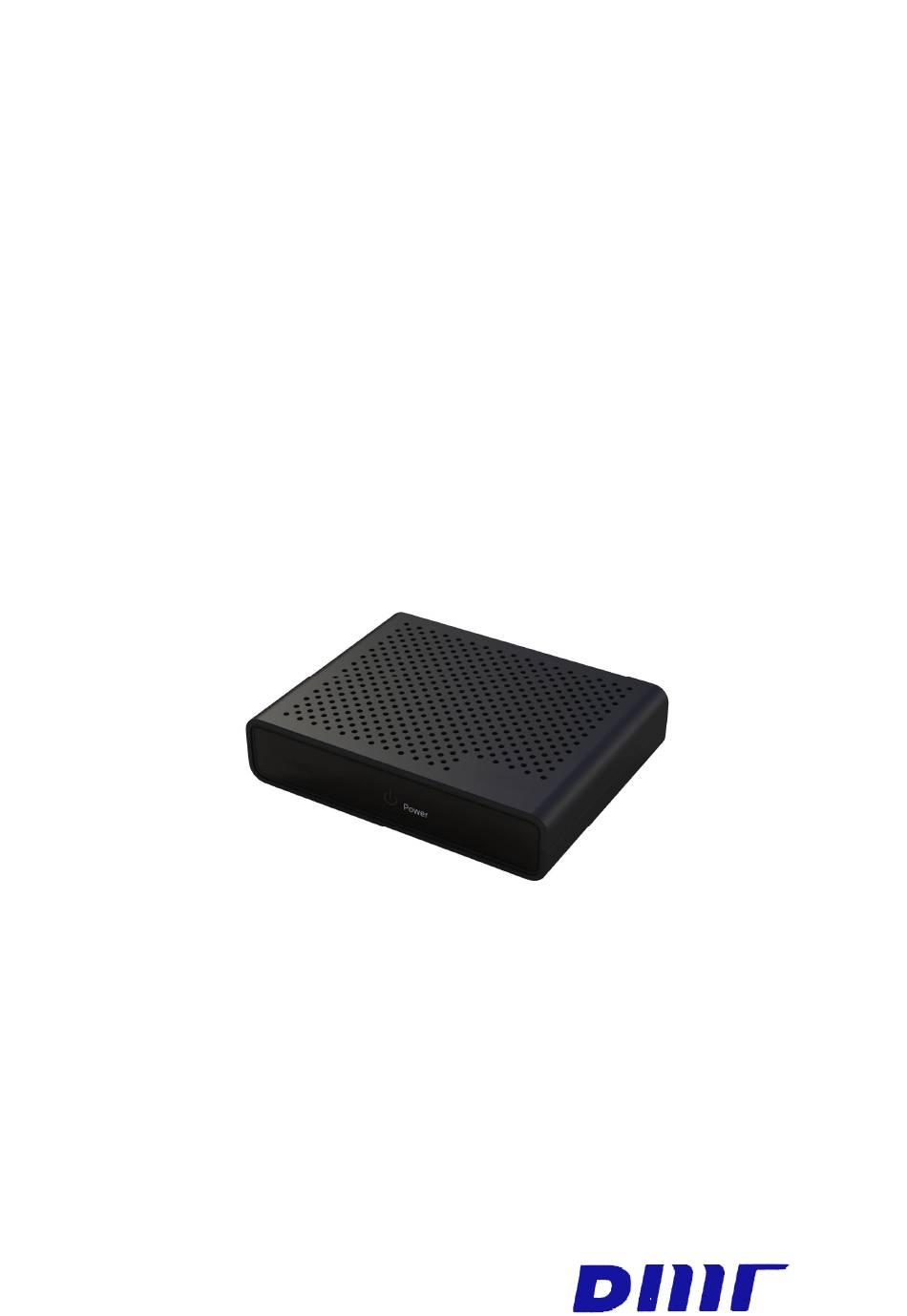

- Page 1 Instruction Manual DC10HD Digital Multimedia Technology Co., Ltd...
-
Page 2: Table Of Contents
HDuDTA Manual Contents Ⅰ . Installing DC10HD 1. Component ..................3 2. Name of parts and role ............... 3 2-1. Remote control ................5 Ⅱ . Notice DC10HD 3. Installing ....................7 1. Dolby ....................8 2. UL ......................9... -
Page 3: Component
HDuDTA Manual Ⅰ . Installing DC10HD 1. Component The following parts are included in the product package. Make sure that you received all the parts. Main body of DC10HD Remote Control Power adaptor RF Cable User Manual ... - Page 4 HDuDTA Manual Cable In Power In TV out HDMI Out CH3/CH4 (Coax Cable) Connects the All Digital Device to a TV, VCR or Cable In receiver using a coax cable. (Coax Cable) Connects the All Digital Device to a TV, VCR or TV Out receiver using a coax cable.
-
Page 5: Remote Control
HDuDTA Manual 2-1. Remote control ► Pressing the MUTE button on your remote control will mute the audio. ► Use the VOLUME UP/DOWN buttons ( V +/- ) on your remote control to raise and lower the volume. ► Use the CHANNEL UP/DOWN buttons ( CH +/- ) on your remote control to change channels. ►... - Page 6 HDuDTA Manual POWER Switches the All Digital Device’s power on or into Stand-By Mode. MUTE Mutes the audio. Enters Channel Numbers. In text windows, enters PIN-Code Numbers and various characters. Switches between the current and previous channel. In the MENU LAST SYSTEM LAST returns to the previous screen.
-
Page 7: Installing
HDuDTA Manual 3. Installing 1) Peripheral device setting A. Connect the wall cable source to CABLE IN on the All Digital Device. B. Connect the All Digital Device to the TV. Use a coaxial cable to connect TV OUT on the All Digital Device to the ANT jack on the TV C. -
Page 8: Dolby
HDuDTA Manual Ⅱ . Notice 1. Dolby Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. - Page 9 HDuDTA Manual 2. UL Care and Maintenance Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7.
- Page 10 HDuDTA Manual WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus CAUTION EXPLANATION OF GRAPHICAL SYMBOLS...
-
Page 11: Fcc
HDuDTA Manual FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
