B+B SMARTWORK IE-MediaChassis/1-AC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IE-MediaChassis/1-AC
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IE-MediaChassis/1-AC and is the answer not in the manual?

Questions and answers

Summary of Contents for B+B SMARTWORK IE-MediaChassis/1-AC

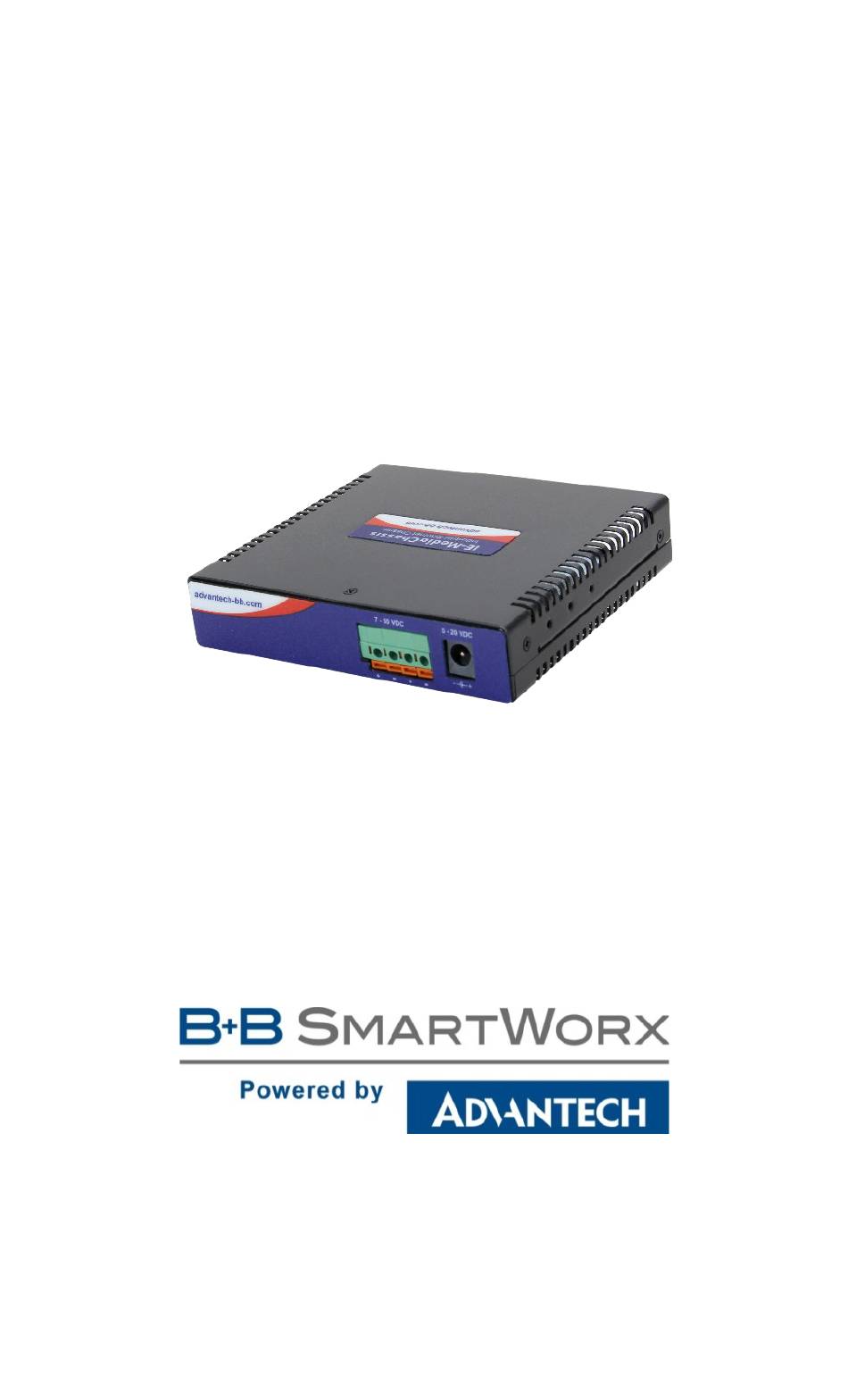

  • Page 1 IE-MediaChassis/1-AC USER MANUAL...
  • Page 2 IE-MediaChassis/1-AC Advantech B+B SmartWorx - Americas 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 (815) 433-5105 Advantech B+B SmartWorx - Europe Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Fax +353 91-792445 www.advantech-bb.com support@advantech-bb.com...

  • Page 3: Table Of Contents

    IE-MediaChassis/1-AC CONTENTS About t h e IE-MediaChassis/1-AC ............. 4 Configuring & Installing Modules ............... 4 Installing t h e IE-MediaChassis/1-AC ............4 Table-Top Installation ....................4 Wallmount Bracket Installation .................. 4 DIN Rail Mounting ...................... 5 Powering the IE-MediaChassis/1-AC ............6 DC Terminal Block Wiring Instructions ..............

  • Page 4: About T H E Ie-Mediachassis/1-Ac

    DIN rail; or wall-mounted. TABLE-TOP INSTALLATION As a table-top unit, install the IE-MediaChassis/1-AC by placing it on a flat surface. Make sure to leave adequate space on top of the unit to accommodate cooling. Attach network cables between the module and other devices that will be interconnected, and then plug the unit into a reliable, filtered power source.

  • Page 5: Din Rail Mounting

    DIN RAIL MOUNTING NOTE: DIN clips are designed for use on a DIN-35 rail. The IE-MediaChassis/1-AC can be mounted with two DIN rail clips (hardware option available from B+B SmartWorx). The DIN rail clips include screws to allow installation on a DIN rail. Install the screws into DIN rail clips, which should be mounted perpendicular to the DIN rail.

  • Page 6: Powering The Ie-Mediachassis/1-Ac

    IE-MediaChassis/1-AC. The below diagram shows a wiring configuration example for the DC terminal block of IE-MediaChassis/1-AC (±7 to 50 VDC). NOTE: When using stranded wire, the leads must be tinned. The chassis is protected against mis-wiring; if mis-wired, the chassis will not function.

  • Page 7: Cascading Dc Power

    IE-MediaChassis/1-AC CASCADING DC POW ER When installing multiple IE-MediaChassis/1-AC units on a DIN rail, use one DC input source then cascade from one DC block to the next, until reaching the maximum current available. Make sure to connect positive-to-positive and negative-to-negative.

  • Page 8: Specifications

    IE-MediaChassis/1-AC SPECIFICATIONS DC Input Voltage ±7 to ±50 VDC on DC terminal 5 to 20 VDC on DC jack AC Wall Adapter 100 to 240 ±10% VAC Input 5 VDC Output, 2A (maximum) Operating Temperature -25 to +85 °C (-13 to +185 °F) with DC terminal -10 to +50 °C (+14 to +122 °F) with AC wall adapter...

  • Page 9: B+B Smartworx Technical Support

    IE-MediaChassis/1-AC B+B SM ARTWORX TECHNICAL SUPPORT USA/Canada: 1 (800) 346-3119 (Ottawa IL USA) Europe: +353 91 792444 (Ireland / Europe) Email: support@advantech-bb.com Web: www.advantech-bb.com STATEMENTS, GUIDELINES, PRECAUTIONS FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules.

  • Page 10: Fiber Optic Cleaning Guidelines

    IE-MediaChassis/1-AC FIBER OPTIC CLEANING GUIDELINES Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules.

  • Page 11: Electrostatic Discharge Precautions

    IE-MediaChassis/1-AC ELECTROSTATIC DISCHARGE PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or standalone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products: Do not remove unit from its protective packaging until ready to install.

  • Page 12: Standards/Compliances

    IE-MediaChassis/1-AC STANDARDS/COMPLIANCES UL/cUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC).
