VDH ALFANET-3 Series User Manual

ALFA 3x(DP)-serie
VDH doc. 080642
Software: ALFANET REMOTE

* Installation.

On the top side of the ALFANET-REMOTE is shown how the supply and the network should be
connected.

* Control.

Before communication is possible with the other ALFA the network number (Parameter 90) from the
ALFANET-REMOTE should be adjusted to the same network number as the network number from
the ALFA which should be read out remotely. The control from the remote is equal to the control from
the other ALFA. See the regarding manual.
An exception on this are the internal parameters from the ALFA. These parameters can not be viewed
and changed on the ALFANET-REMOTE. When the network number from the ALFANET-REMOTE
is 0, the remote is disconnected from the network. This will be visible by flashing from the dots once
per 10 seconds. When there is no communication with the selected ALFANET the display will show
three stripes.

* Adjusting internal parameters.

When the DOWN key is pushed for more than 10 seconds the internal parameter menu will be
entered. On the left display the upper and lower segments starts flashing. Through the UP and DOWN
keys the required parameter can be selected (see the table for the parameters).
When the required has been selected, it can be read put by pushing the SET key. By pushing the UP
or DOWN key the parameter can be changed.
If no key is pushed for 20 seconds the ALFANET-REMOTE returns to it's normal operation mode.
User manual
ALFANET-3x/7x REMOTE

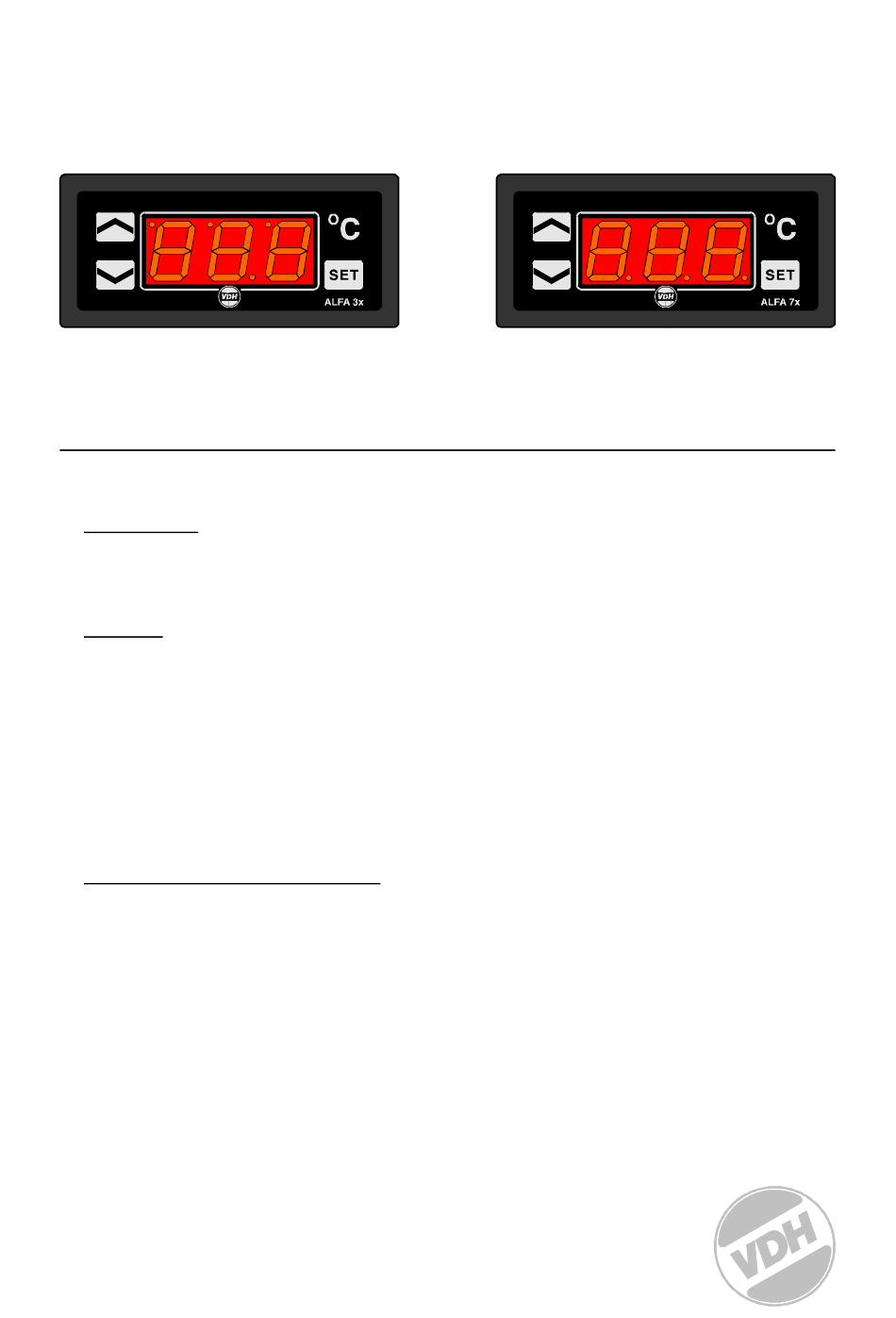

Display.
Version: v1.0
File: Do080642.WPD
1
ALFA 7x-serie
Date: 16-05-2008
Range see other ALFA
