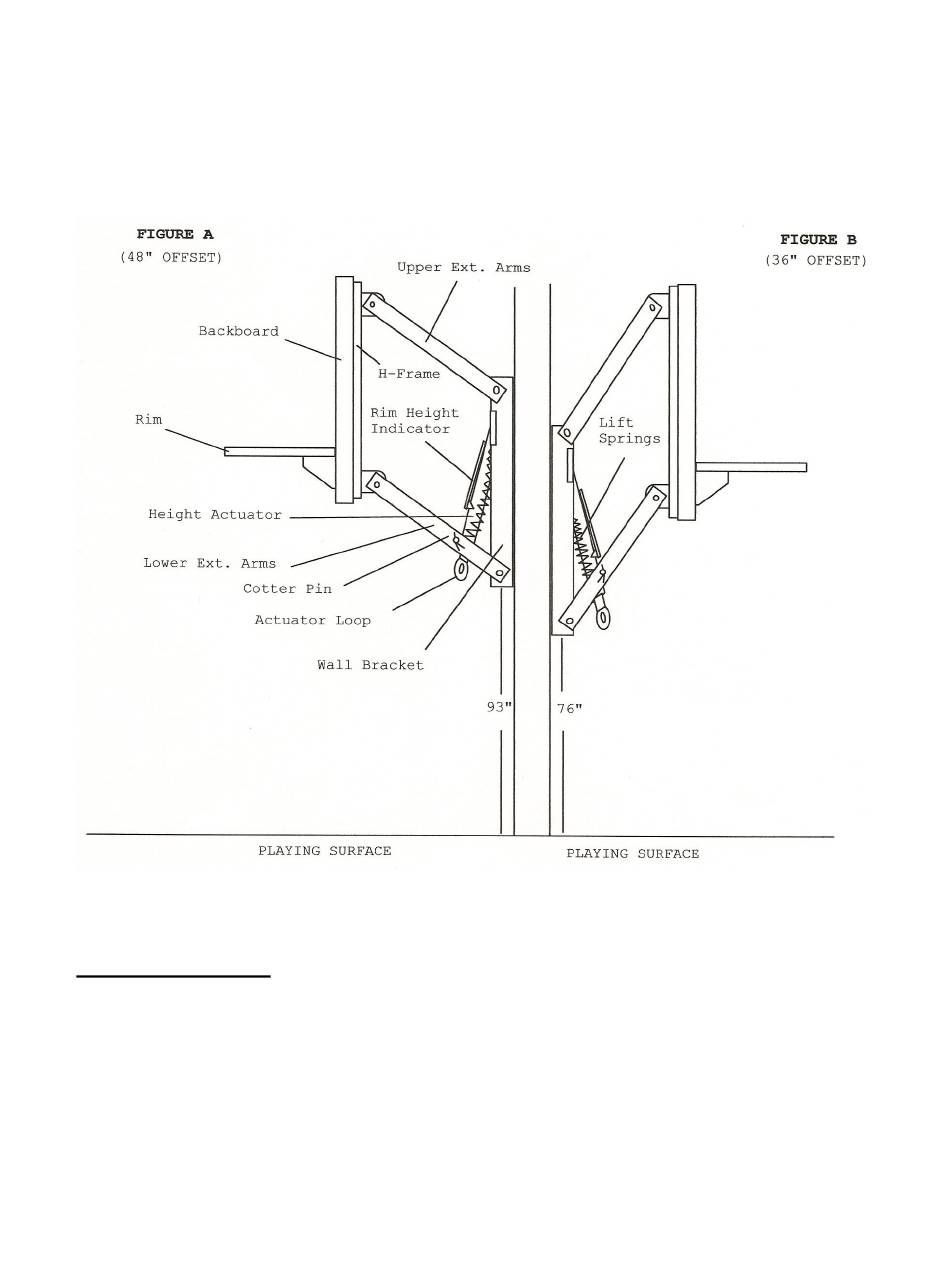

A (1) Wall Bracket

B (2) Upper Extension Arms

C (1) Lower Extension Arm Assembly

D (1) H-Frame Backboard Mount

E (1) 5/8" x 25 ½" Rod

F (1) Rim Height Indicator

G (1) Adjustment Crank Actuator

H (1) Crank Handle

I (4) Lift Springs

J (1) Rim Height Stickers

NOTE: Immediately unpack all components and cross check against bill of materials.

Report any shortages to First Team customer service at 1-888-884-6677.

First Team, Inc.

WallMonster Series

Installation Instructions

K (8) 5/8"x 3" Hex Bolt

L (1) 5/8"x 5" Hex Bolt

M (9) 5/8" Centerlock Nut

N (8) 5/8" Nylon Flatwasher

O (2) .125" x 2-9/16" Zinc Cotter Pin

P (8) 3/8"x 1 ¼" Hex Bolt

Q (8) 3/8" Flatwasher

R (8) 3/8" Lockwasher

S (8) 3/8" Hex

Table of Contents

Do you have a question about the WallMonster Series and is the answer not in the manual?

Page 1: Installation Instructions
H (1) Crank Handle R (8) 3/8” Lockwasher I (4) Lift Springs S (8) 3/8” Hex J (1) Rim Height Stickers NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to First Team customer service at 1-888-884-6677.
Page 2 WARNING!! WARNING!! WARNING!! WARNING!! WARNING!! Proper installation of this basketball structure requires adequate wall structure integrity. Consult with an architect or engineer if you are uncertain about whether your roof or wall is sufficient to support this structure adequately. WARNING!! WARNING!! WARNING!! WARNING!! WARNING!! Because each installation situation is unique, the anchoring hardware required to attach this system to your wall is not included with the unit.
Page 3 If the grommets are missing and cannot be located, DO NOT PROCEED WITH INSTALLATION, call First Team immediately for replacements, 1-888- 884-6677. Grommets prevent glass/acrylic breakage when tightening rim bolts. NO GROMMETS ARE NECESSARY FOR NON-CLEAR BACKBOARDS.
Page 4 Installation of your First Team WallMonster Basketball System is complete! TIP: Find a safe and handy location to store your crank handle. If you ever lose your crank handle, replacements can be purchased by calling First Team at 1-888- 884-6677. We hope you enjoy your WallMonster basketball system.
