Summary of Contents for SKC SPLIT2

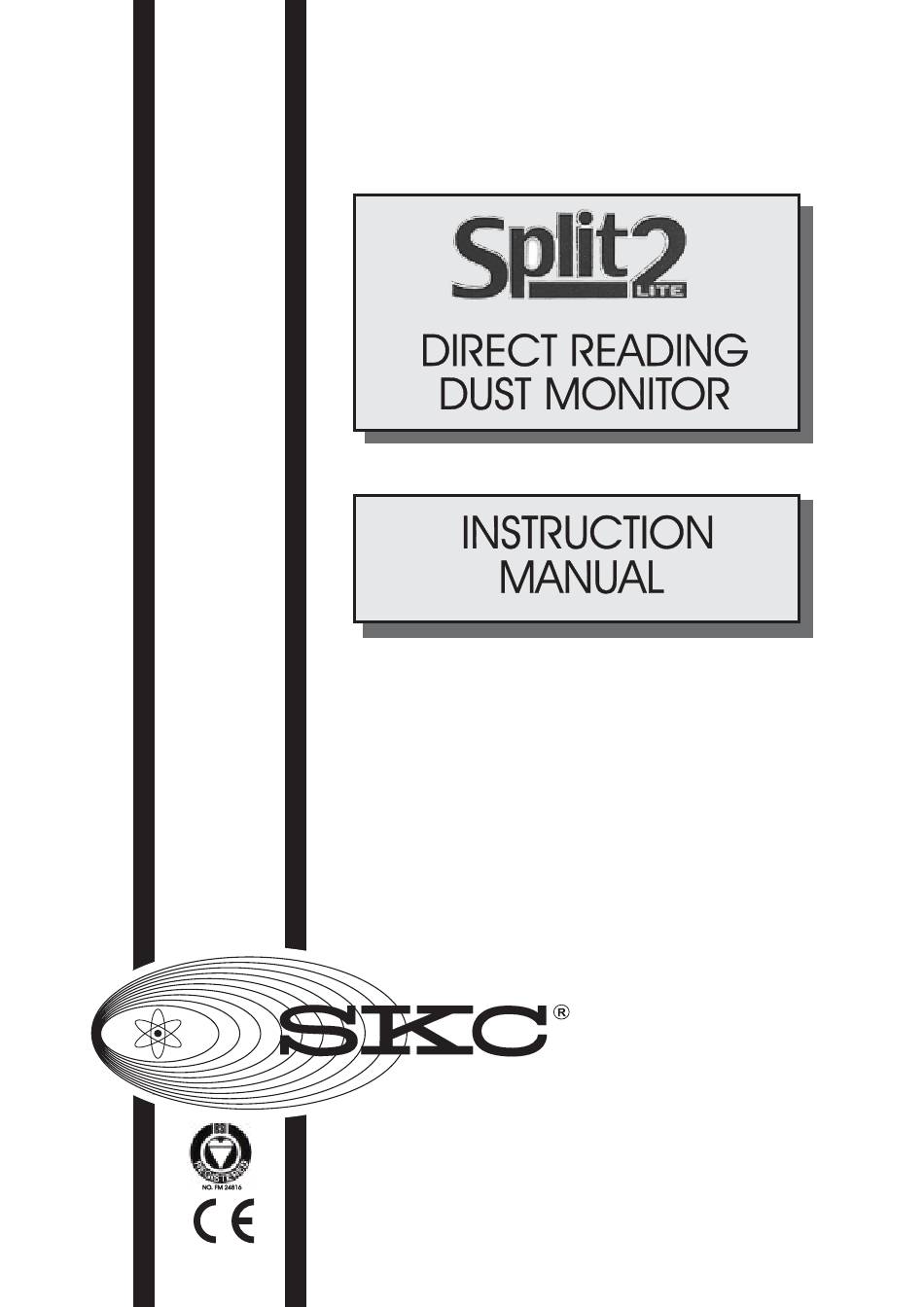

- Page 1 World leader in sampling technologies SKC Ltd 11 Sunrise Park, Higher Shaftesbury Road Blandford Forum, Dorset DT118ST f: 01258 450968 e: info@skcltd.com...
- Page 2 Keep a record of your equipment history in the space provided Model Serial number Date of purchase Recalibration record 05 06 07 08 09 10 11 12 13 year 14 15 month This manual is for Split2 units supplied after September 2004 Copyright SKC Ltd 2004. All rights reserved...
-
Page 3: Table Of Contents
01258 450968 e: info@skcltd.com CONTENTS INTRODUCTION .................. 4 APPLICATIONS ................... 4 DIAGRAMS AND PARTS LIST OF THE SPLIT2 ........ 5 BATTERY DETAILS, CLEANING OPTICS, SOFTWARE ....6 SPECIFICATIONS ................7 CONTROLS ..................7 BEFORE YOU START ................8 INITIAL SET UPS ................9 SETTING UP THE TIME AND DATE .......... -
Page 4: Introduction
The SPLIT2 direct reading dust monitor is a small and compact unit, and can be used as a personal sampler that not only gives a real time profile of dust concentration, but the facility for a concurrent filter sample, all at an extremely low cost. -
Page 5: Diagrams And Parts List Of The Split2
DIAGRAMS AND PARTS LIST Please unpack your new SPLIT2 and ensure that your kit is complete. Calibration post SPLIT2 unit in carry pouch, with detachable strap Zeroing filter Detachable sensor on a ‘curly’ cable, with IOM body, and complete IOM cassette. -
Page 6: Battery Details, Cleaning Optics, Software
Retaining screws Using the Software Take full advantage of all the SPLIT2 features. Save data, create reports, and much more. Use of the software is covered in the separate manual also included on the CD. Please read through the software manual before attempting to install the software to your PC. -
Page 7: Specifications
Sidekick Pump. Part #224-50 or 224-52TX CONTROLS & LCD Switching on the SPLIT2 SPLIT2 version 3.2 onwards features a manual on/off switch on the side, located adjacent to the charger socket. Review Data This must be on for the control panel to become activated. -
Page 8: Before You Start
If Passive Mode is chosen the following should be noted: In the passive mode the SPLIT2 is used without any inlets or a filter cassette on the sensing head (see page 11 for details). This mode means the instrument relies on the NIOSH 0600 method of calibration. This method uses ARD (Arizona Road Dust) as a calibration media and responds to the RESPIRABLE fraction only. -
Page 9: Initial Set Ups
Special Functions Auto-Zero Setting the TIME and DATE: This only has to be done once. The SPLIT2 has a lithium battery back up for the clock Go to the Special Functions option by pressing either the DOWN Review Data... -
Page 10: Setting Up The Time And Date
INITIAL SETTING UP OF THE SPLIT2 Time: Cursor The following screen will appear with a cursor Date: (line) under the 0 character Day: The TIME is configured as a 24 hour clock in hours/minutes/seconds. The date is configured as day/month/year. The day is by accepted abbreviation e.g MON... -
Page 11: Passive Or Pumped Mode
There are two modes in which the SPLIT2 can be used: PASSIVE or PUMPED. PLEASE NOTE: Go to the section on Sampling (p14) before attempting to use the SPLIT2 in the Pumped mode. To use in the passive mode the sensing head must be Passive mode: use sensing head like this configured without any inlets or filter cassettes. - Page 12 5. The Alarm level must be set, if sampling with the alarm feature. 1. Selecting the correct particle size: PLEASE NOTE: The SPLIT2 will always default to the last used size selection if turned off and back on again. Review Data...
-
Page 13: Preparing To Take A Sample
See page 10. 4. Doing an Auto-Zero Before using the SPLIT2 to do an actual sample an AUTO-ZERO must be performed. To carry out an AUTO-ZERO in either the Passive or Pumped mode please do the following. Configure the sensing head for the type of dust fraction required, as shown in the previous page. e.g. Passive or Pumped. -
Page 14: Setting The Alarm
PREPARING TO TAKE A SAMPLE Auto - Zeroing The Split2 is now Auto - Zeroing. The time in seconds will appear Please Wait in the bottom right hand corner of the LCD indicating how long for the Auto - Zero to be completed. -
Page 15: Setting The Sample Rate
PREPARING TO TAKE A SAMPLE Setting the Sample Rate: Go to the Special Functions option by pressing either the down Review Data button or the up button until the arrow is opposite Special Special Functions Functions. Press ENTER button Auto Zero System Options Scroll arrow to System Options and press the ENTER button Date/Time... -
Page 16: Taking A Sample
TAKING A SAMPLE Monitoring Dust Concentrations with the SPLIT2 Once all the preparations have been carried out and the SPLIT2 set up to the correct mode and dust fraction to be monitored, we can start taking samples. Go to the main menu and by pressing either the down button Review Data or the up button position the arrow opposite RUN. -
Page 17: Reviewing The Data And Down Load To Pc
Preparing A new screen will appear for a few seconds stating ‘Preparing Compensation Compensation’. This means the SPLIT2 is now configuring all the options selected during set up ready to start monitoring Tag: 001 Very quickly a new screen will appear with all the sample details. - Page 18 Standards in the UK. Time Weighted Average result in mg/m3. This TWA is then used to correct the readings on the SPLIT2 by To correct the concentration reading on the instrument to the entering a SCALE factor into the units software. The TWA can dust cloud in your particular circumstance the following procedure is advised.
-
Page 19: Correction For Different Dust Fractions
DUST FRACTION CORRECTION 1. Dust Fraction correction on the SPLIT2 Before a SCALE factor can be entered, a gravimetric result must be obtained from the filter contained behind the sensing head. The filter must be preweighed. Go to the Special Functions option by pressing either the down... -
Page 20: Calculating The Scale Factor
The TWA result obtained from the filter used during a monitoring As you note down your correction factors using the table below exercise is compared against the TWA displayed by the SPLIT2 you are recording actual work place situations and exposures. -
Page 21: Span Check Using The Calibration Post
If the difference is still greater than + 10% you have two options. 1. Correct for the difference by entering a value in to the SCALE * SCALE * option. see p19 2. Return the SPLIT2 for a recalibration and service. Scale: 00.90 Zero Filter Sensing head... -
Page 22: Temperature Differences
Drastic changes in the environment temperature could affect the readings from the Split2. Temperature changes can occur, for example, when transferring between indoor and outdoor monitoring, or if the unit has been stored overnight in a cold room or vehicle, before being used in a warm room. - Page 23 COSHH OR ENVIRONMENTAL SAMPLING NOISE MONITORS TEMPERATURE, LIGHT, WORKPLACE LIGHT - NOISE - TEMPERATURE SORBENT TUBES PASSIVE BADGES PASSIVE OR ACTIVE SAMPLE MEDIA SKC Ltd 11 Sunrise Park, Higher Shaftesbury Road Blandford Forum, Dorset DT118ST f: 01258 450968 e: info@skcltd.com...
