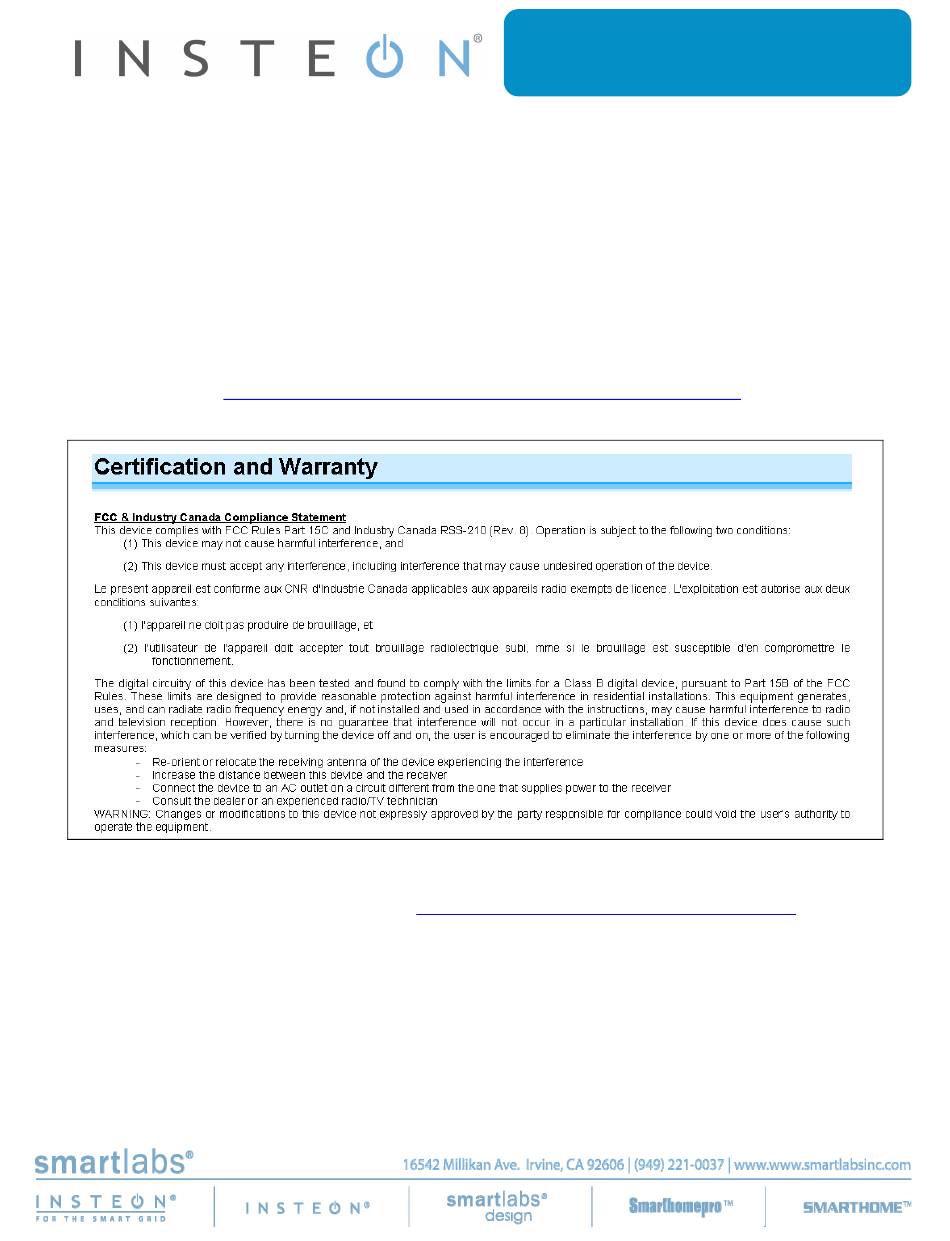

On-Line Owner's Manual Containing
Cautionary FCC & IC Statements
March 1, 2012
Portable Wireless Zone Thermostats
Models: 2441ZT and 2441ZTH
FCC ID: SBP2441ZT
IC: 5202A-2441ZT
The owner's manual below may be accessed freely via the Internet
with any web browser and supports the PDF format.
http://www.smarthome.com/2441ZTH.html
Complies with Section 5 of FCC document
784748 D01 Labeling Part 15 18 Guidelines v07
where
cautionary statements in the user manual may be provided over the Internet.
Advertisement
Table of Contents
Summary of Contents for Smarthome TempLinc INSTEON 2441ZTH
-
Page 1: Owner's Manual & Tech Support
FCC ID: SBP2441ZT IC: 5202A-2441ZT The owner’s manual below may be accessed freely via the Internet with any web browser and supports the PDF format. http://www.smarthome.com/2441ZTH.html Complies with Section 5 of FCC document 784748 D01 Labeling Part 15 18 Guidelines v07 where... - Page 2 ® TempLinc™ INSTEON Zone Thermostat Owners Manual (#2441ZTH) TempLinc Zone Thermostat Sample The gray buttons shown above are under the door of the TempLinc Zone Thermostat Page 4 of 25 Rev: 3/1/2012 3:06 PM...
-
Page 3: Table Of Contents
Quick-Start Guide About TempLinc Wireless Zone Thermostat Preparation Test Operation Adding a Wireless TempLinc Zone Thermostat Control Settings Factory Reset Owner’s Manual & Tech Support About TempLinc Zone Thermostat TempLinc Zone Thermostat– Features & Benefits What’s in the box? TempLinc Zone Thermostat Button Overview TempLinc Zone Thermostat Operation and Programming Thermostat Mode Button Operation TempLinc Zone Thermostat Energy Button Operation... - Page 4 Page 6 of 25 Rev: 3/1/2012 3:06 PM...
-
Page 5: Quick-Start Guide
About TempLinc Zone Thermostat TempLinc is a wireless, battery operated, 1-day programmable, INSTEON-compatible thermostat. TempLinc Zone Thermostat includes a humidity sensor and the ability to communicate via RF to other INSTEON devices and Thermostats. TempLinc Zone Thermostat does not connect directly to the HVAC (Heating Ventilating and Air Conditioning) system. -
Page 6: Templinc Zone Thermostat Button Overview
TempLinc Zone Thermostat Button Overview TempLinc Zone Thermostat Sample The gray buttons shown here are under the door of the TempLinc Zone 1) Up/Down adjusts the temperature setpoint based on the mode you are currently in 2) Mode allows the user to select the current operational mode of the HVAC system. It cycles between Off, Heat, Cool, Auto, and Programmed Auto. -
Page 7: Templinc Zone Thermostat Operation And Programming
TempLinc Zone Thermostat Operation and Programming Thermostat Mode Button Operation Off Mode: Heat Mode: No setpoints are shown Only Heat setpoint is shown Up / Down do not do anything Up / Down changes the Heat setpoint Cool Mode: Auto Mode: ... -
Page 8: Templinc Zone Thermostat Energy Button Operation
TempLinc Zone Thermostat Energy Button Operation The Energy button is designed to be a very quick to use option that saves energy (and money). When you press the Energy button (identified with the leaf), TempLinc Zone Thermostat will setback the set points by a specified value. -
Page 9: Templinc Zone Thermostat Set Button Operation
From Programmed Auto Mode: Both Heat and Cool setpoints setback as specified Default setback is 4 degrees Notice that “Heating” is active on the left, but not on the right; the element reads “Heat” Note: On screen text displaying “HEAT” changes to “HEATING” and “COOL” changes to “COOLING” to indicate HVAC system is active. -
Page 10: Templinc Zone Thermostat Program Button Operation
press of Time / Sensor: Clock Format setting (12 or 24 Hr clock) Entire “time” sections blinks Up / Down cycles between 12 and 24 Hr clock format Note: AM / PM are not displayed when in 24 Hour format TempLinc Zone Thermostat Program Button Operation The Program button allows you to setup the various pre-programmed modes (Wake, Leave, Return, and Sleep). -
Page 11: Templinc Zone Thermostat Fan And Hold Button Operations
press of Program: press of Program: Cool setpoint Heat setpoint Up / Down cycles through temperature Up / Down cycles through temperature press of Program: - Starts the process all over again to program another Mode Note: The 4 modes come pre-programmed. -
Page 12: Templinc Zone Thermostat Master Button Operation
TempLinc Zone Thermostat Master Button Operation The Master button makes the local device the Master temperature Controller. The logic behind this is that as the user walks around the home, they would likely want to have the local temp be the controlling temp. Since this button will only set the local to be Master, pressing the button a second time does not change anything. -
Page 13: Installation
Installation CAUTIONS AND WARNINGS Read and understand these instructions before installing and retain them for future reference. Tools Needed TempLinc Zone Thermostat will primarily be used as a table-top thermostat If desired, you may wall mount TempLinc Zone Thermostat using the slotted holes in the back cover of TempLinc Preparation Proper installation of the TempLinc Zone thermostat will be accomplished by following these steps. -
Page 14: Adding A Wireless Templinc Zone Thermostat
Auto Mode Test 18) Tap mode button once to enter auto mode 19) Note that your Heat and Cool set points are set in previous steps, unless you did not have a minimum 2 degrees gap between settings 20) Tap up once to increase both Heat and Cool set points by one degree 21) Tap down once to decrease both Heat and Cool set points by one degree 22) Tap mode once to enter Programmed Auto mode Indicated by Auto at bottom and relevant time of day to right of Heat/Cool set temps... - Page 15 Add to a Scene Process: 1) Press & hold TempLinc Zone Thermostat Set button until it beeps TempLinc Zone Thermostat Set LED blinks GREEN TempLinc Zone Thermostat will (Beep) 2) Tap: Up or Down buttons to select Group 1 – 4 to Add to a Scene ...
-
Page 16: Removing Templinc Zone Thermostat As A Controller
TempLinc Zone Thermostat will (Beep)-(Beep) upon completion LED returns to previous state Removing TempLinc Zone Thermostat as a Controller 1) Press & hold TempLinc Zone Thermostat’s Set button until it beeps TempLinc Zone Thermostat Set LED blinks GREEN TempLinc Zone Thermostat will (Beep) 2) Press &... - Page 17 LCD display when using Up or Down buttons to select from among the 4 Controller Groups 4) Press and hold Responder’s Set button TempLinc Zone Thermostat will (Beep)-(Beep) upon completion LED returns to previous state Page 19 of 25 Rev: 3/1/2012 3:06 PM...
-
Page 18: User Setup Mode Overview
User Setup Mode Overview IMPORTANT! Once you have Added TempLinc Zone Thermostat to TempLinc Thermostat as a wireless temperature zone, the Program and Time / Sensor buttons will no longer perform their initial function. All program and time controls will be performed on the TempLinc Thermostat. To access the Program and Time / Sensor buttons again, you must Remove TempLinc Zone Thermostat from TempLinc Thermostat. - Page 19 Sub-mode 01: Display LED on-time select (Default is 10 seconds) Sub-mode 02: Humidity Low Set Point (Default is 30%) Sub-mode 03: Humidity High Set Point (Default is 50%) Sub-mode 4: Temperature format select (Default is Fahrenheit) Sub-mode 5: Beep on button press (Default is Off) Sub-mode 6: Status LED (Default is On) Sub-mode 7: Button Lock (Default is Off) Sub-mode 8: Programming lock (Default is Off)
- Page 20 Sub- mode 06: Status LED(Enable / Disable), On default a. Up button = On b. Down button = Off Sub- mode 07: Button Lock (disables front button presses), Off default For common area locations in a business such as a lobby c.
-
Page 21: Temperature Calibration Mode
Temperature Calibration Mode 1) Once in User Setup Mode, press the Time / Sensor button to enter Temperature Calibration Mode 2) Press Mode to step between Temperature Calibration and Humidity Calibration 3) Temperature Calibration a. Press up and down arrow to adjust the displayed temp i. -
Page 22: Advanced 2 Stage Heating Or Cooling Systems
Advanced 2 Stage Heating or Cooling Systems TempLinc Zone does not have the ability to operate 1 or 2 stages of Heat or Cool directly but can instruct TempLinc Thermostat to operate the HVAC. 1 and 2 stage of Heat or Cool engages under the following conditions when TempLinc Thermostat is connected to the HVAC: TempLinc Zone Thermostat’s setpoint is set at 5 degrees or more below ambient in Cool mode and 5 degrees or more above ambient in Heat mode... -
Page 23: Certification And Warranty
You may also have other legal rights that may vary from state to state. U.S Patent No. 7,345,998, International patents granted and pending © Copyright 2011 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.smarthome.com...
