Summary of Contents for Stollmann BlueHDP+USB

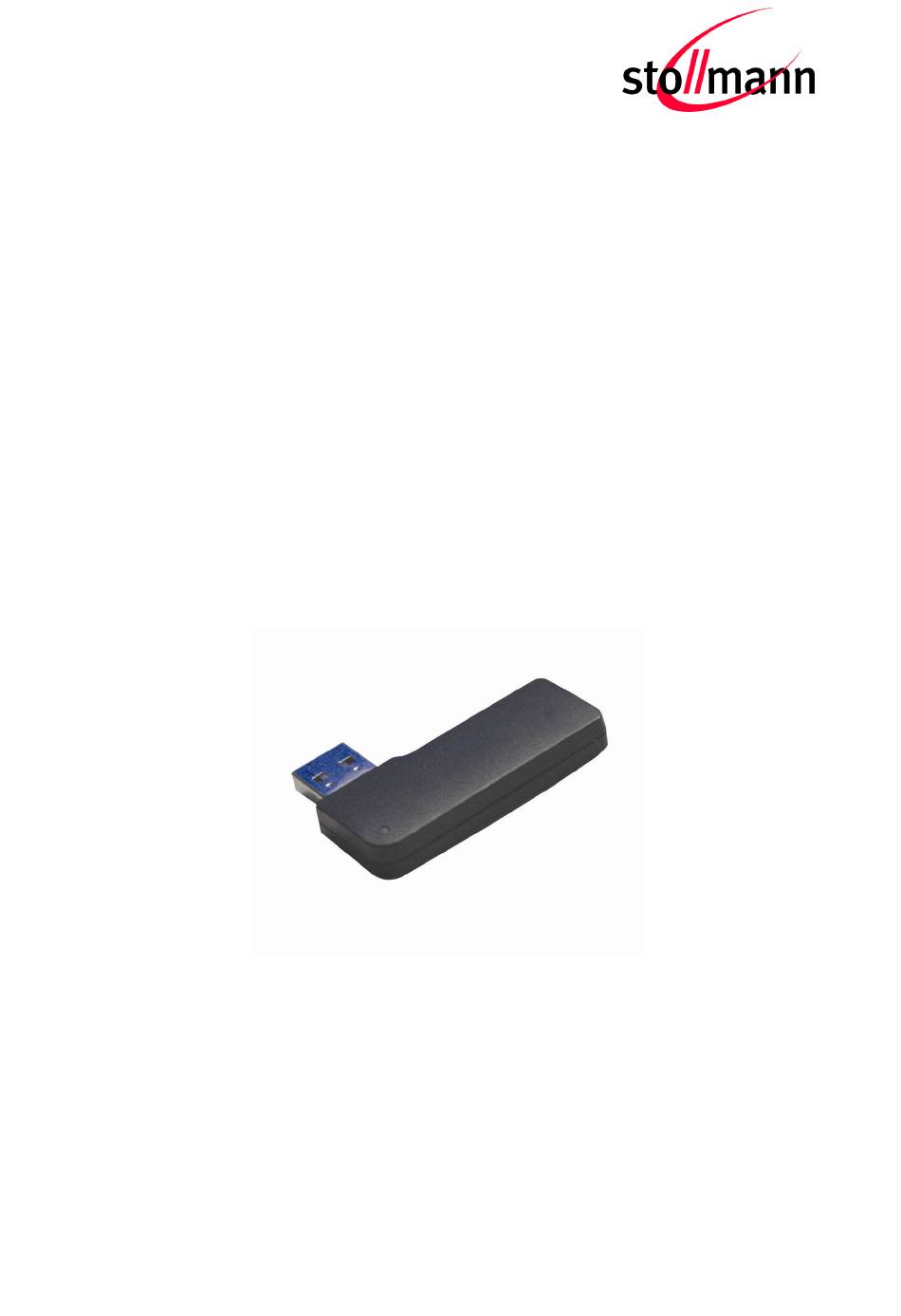

- Page 1 BlueHDP+USB User Guide Release r01...
-
Page 2: Table Of Contents
1.2.2 Label ....................5 Installation ......................6 2.1 Procedure of Installation ................6 Usage of the BlueHDP+USB with Continua Enabling Software Library (CESL) . 7 3.1 Requirements ....................7 3.2 Test Setup ....................7 3.3 Procedure of Installation ................8 3.4 Using the CESL Manager with BlueHDP+USB .......... -
Page 3: Introduction
BlueHDP+USB User Guide 1 Introduction We are very pleased to see that you have purchased a Stollmann product and would like to express our appreciation. This documentation is valid for the following product: BlueHDP+USB Software version 1.402 or later 1.1 Product description BlueHDP+USB is an active Bluetooth USB dongle. -
Page 4: Led
The BlueHDP+USB have an LED on the front side. LED (green) Connector The green LED indicates that the BlueHDP+USB is powered correct from the USB port of the host system. There is no other functionality of the LED. Release r01 www.stollmann.de... -
Page 5: Label
BlueHDP+USB User Guide 1.2.2 Label Product Manufacturer Name Part Number Bluetooth Address CE and Bluetooth Qualification Release r01 www.stollmann.de Page 5 of 14... -
Page 6: Installation
User Guide 2 Installation 2.1 Procedure of Installation Connect the BlueHDP+USB to a PC USB port and install the Silabs USB to UART Bridge driver (can be downloaded at http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx). Find a new COM port in the device manager called “Silicon Labs CP210x USB to UART Bridge”. -
Page 7: Usage Of The Bluehdp+Usb With Continua Enabling Software Library (Cesl)
BlueHDP+USB User Guide 3 Usage of the BlueHDP+USB with Continua Enabling Software Library (CESL) 3.1 Requirements BlueHDP+USB with software version 1.402 or later CESL binary setup with software version 1.5 or later PC with Windows XP, Vista or 7 operating system 3.2 Test Setup... -
Page 8: Procedure Of Installation
BlueHDP+USB with Silabs USB to UART Bridge CP210x CESL binary setup v1.5 or later After correct installation of BlueHDP+USB with Silabs USB to UART Bridge CP210x please install the CESL binary software and follow the instructions. 3.4 Using the CESL Manager with BlueHDP+USB Start the “Continua Manager GUI”... - Page 9 BlueHDP+USB User Guide Release r01 www.stollmann.de Page 9 of 14...
- Page 10 BlueHDP+USB User Guide If the remote HDP device is listed in the “Device List” box, press “Connect” to initialize the connection process. Now both devices are connected and ready to transfer data (3). Release r01 www.stollmann.de Page 10 of 14...
-
Page 11: Using The Cesl Agent With Bluedev+P25/G2/Hdp
BlueHDP+USB User Guide 3.5 Using the CESL Agent with BlueDev+P25/G2/HDP Open a command shell from the program directory of the CESL application folder (usually “C:\Programme\CESL_Binary\bin”) and start a CESL Agent using the command line (for example: “GlucoseMeterAgent.exe –transport Bluetooth –... -
Page 12: Firmware Upgrade
BlueHDP+USB User Guide 4 Firmware Upgrade Stollmann provides a tool for uploading firmware into a BlueHDP+USB via serial interface. The file name of the executable program consists of version and patch information. For example a firmware version 1.404 will result in the executable file “P25G2_HDP_1_404_Setup_SR.exe”. -
Page 13: Troubleshooting
Update process has been interrupted by power loss / Cable replacement on COM port Redo the update by restarting the Stollmann BlueHDP+USB Updater. Firmware won’t start after serial update Power cycle the module. If the module is still not answering to any commands, redo the update with the Stollmann BlueHDP+USB Updater. -
Page 14: History
User Guide 5 History Version Release Date Change description r01d01 21.10.2010 First draft 16.02.2011 First release Stollmann Entwicklungs- und Vertriebs-GmbH Phone: +49 (0)40 890 88-0 Mendelssohnstraße 15 D Fax: +49 (0)40 890 88-444 22761 Hamburg E-mail: info@stollmann.de Germany www.stollmann.de Release r01 www.stollmann.de... - Page 15 Regulatory Statements to be included in the Users Guide for Sputnik USA-Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
